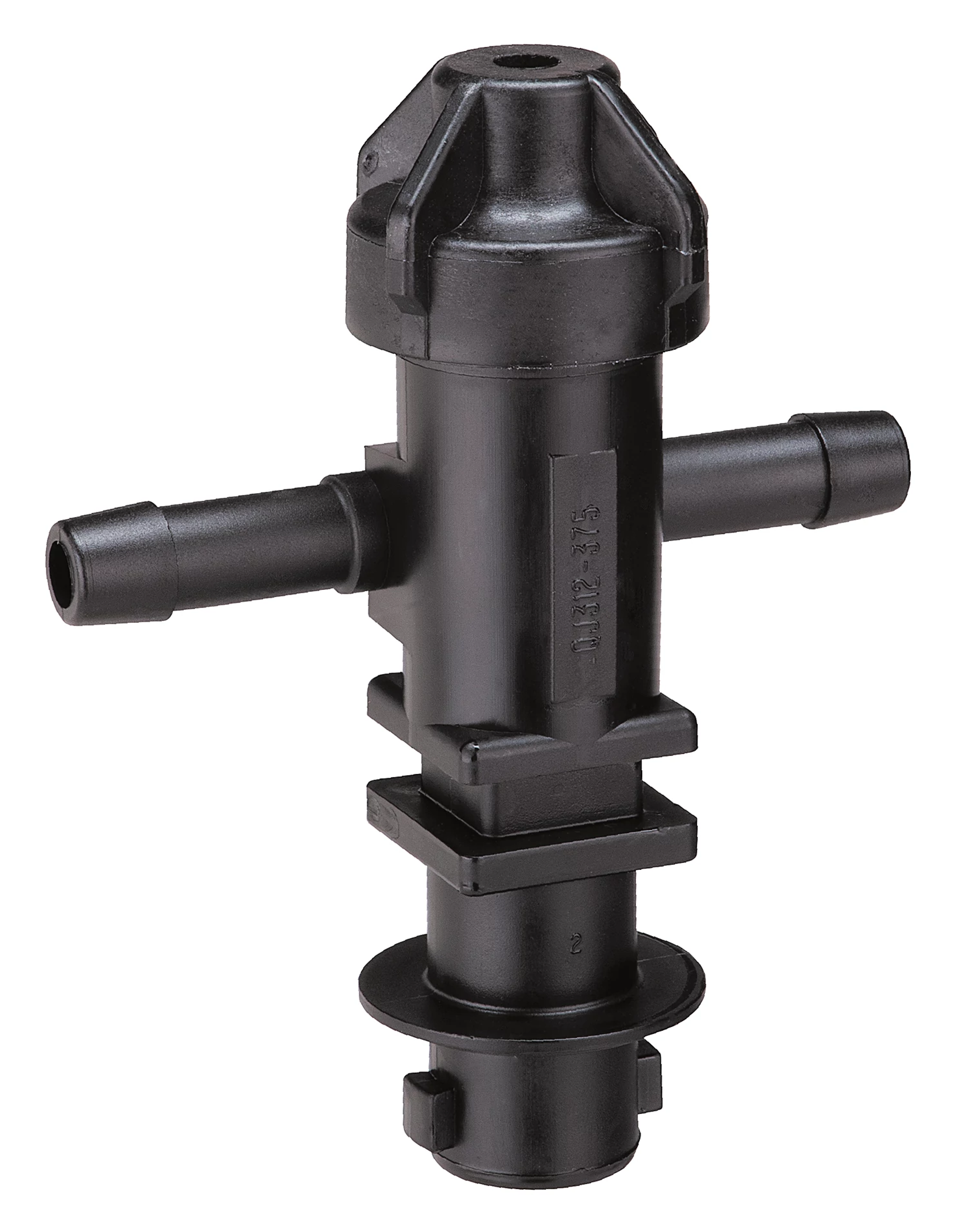

Single Nozzle Bodies with Diaphragm Check Valve , 22252

Images are representative.

General Information

Description

  • Low-profile design allows maximum protection against damage.
  • Available with single and double hose shanks for 3/8", 1/2" and 3/4" I.D. hose.
  • Drip-free shutoff with TeeJet ChemSaver. Opens at 10 PSI. Standard diaphragm is EPDM with FKM optional.
  • Maximum operating pressure of 300 PSI.
  • Flow rate: 3.5 GPM at 5 PSI pressure drop, 4.9 GPM at 10 PSI pressure drop.
  • QJ300 Series is also available in polypropylene. Maximum operating pressure is 150 PSI.
