TriggerJet

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Max. operating pressure: 150 psi (10 bar)
* Max. temperature: 120°F (50°C)
* Capacity: 2 gpm (7.6 lpm)
* 15" (381 mm) to 24" (610 mm) extension
* Material: Polypropylene valve body
* Trigger lock
* Corrosion-resistant lightweight design
* Choice of threaded or hose inlet connection UniJet® strainer option

Spray Guns

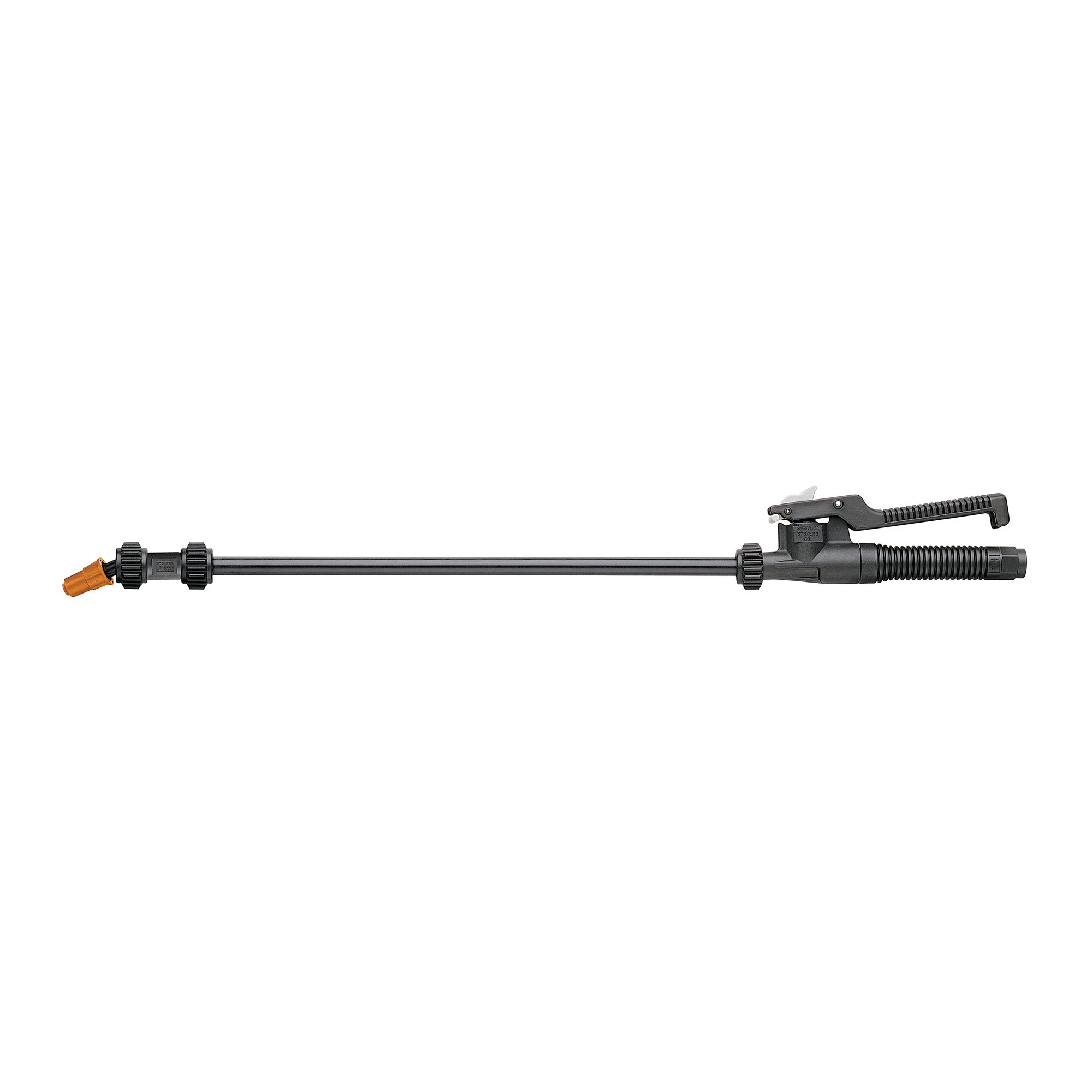

TriggerJet, 22670

What material should it be made of?

General Information

Description

Alternative Models
