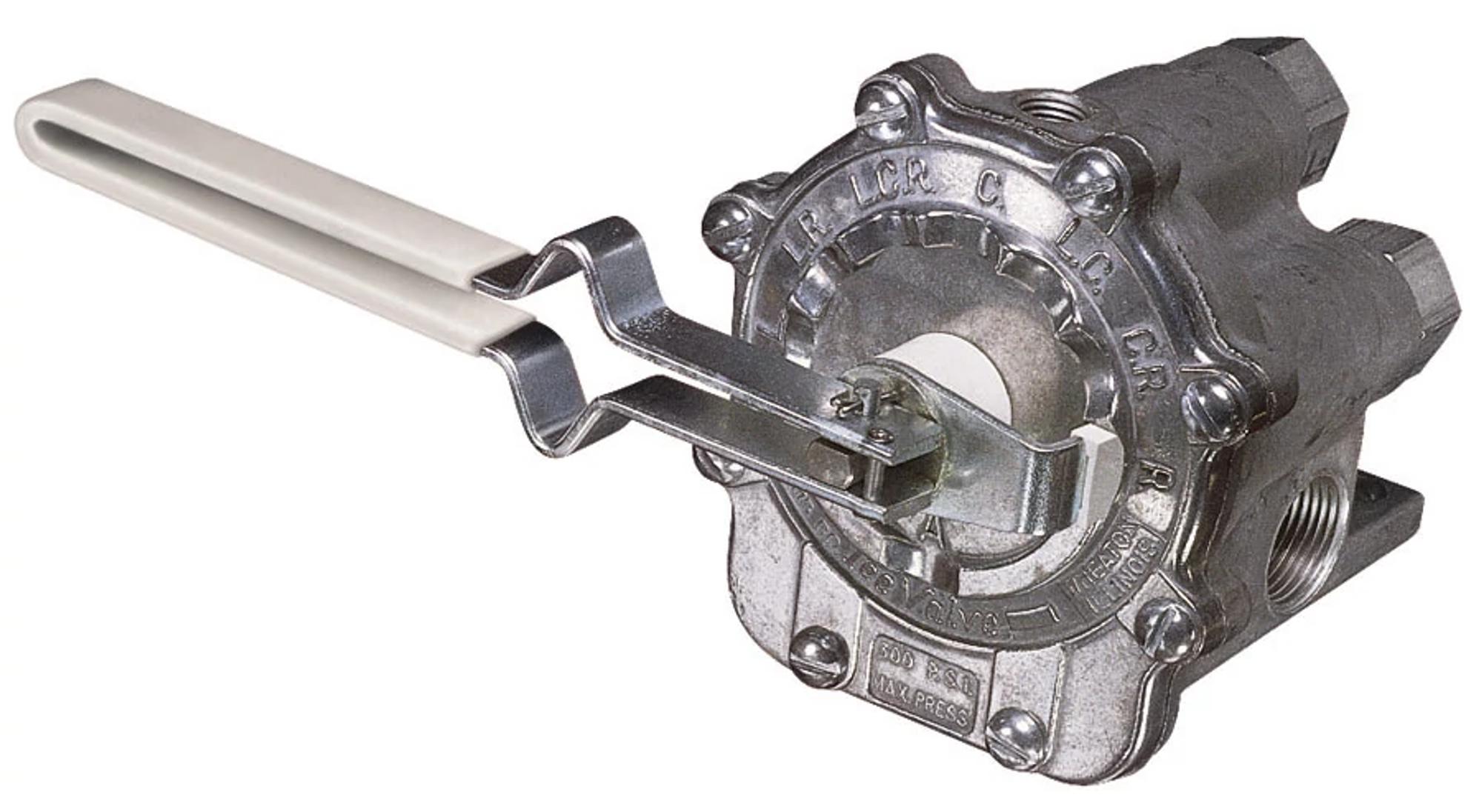

For selective control of three-section boom sprayers at pressures up to 300 PSI.* Use to open any of three boom section lines in any desired combination.* Raise lever to open, lower lever to close the valve without changing the indexed position.* Aluminum construction with stainless steel and plastic internal parts for maximum corrosion resistance.

AA17 Control Valves

AA17 Control Valves, AA17

Model Specifications

General Information

Description

Specification Summary
