Molded of corrosion resistant materials; all wetted parts are polypropylene, stainless steel and polyethylene.* Maximum pressure of 150 PSI.* Flow Rate: 12 GPM at 5 PSI pressure drop, 17 GPM at 10 PSI pressure drop.* Molded-in mounting flange and 1/4" NPT gauge port.* Valves can be ganged together using hex nipple for multiple boom control.* Easily repaired without removing valve from spray line.

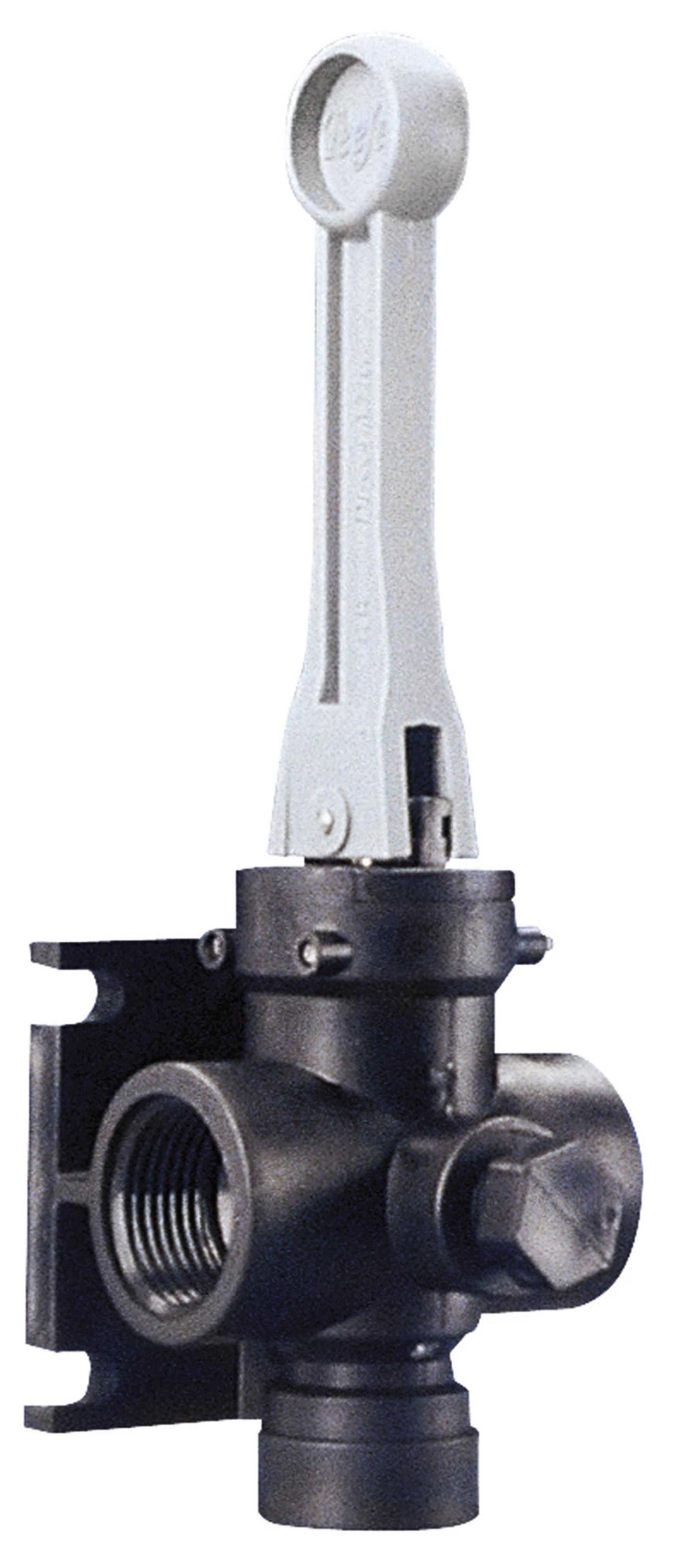

AA6B Manual Control Valve

AA6B Manual Control Valve, AA6B

Model Specifications

General Information

Description

Specification Summary
