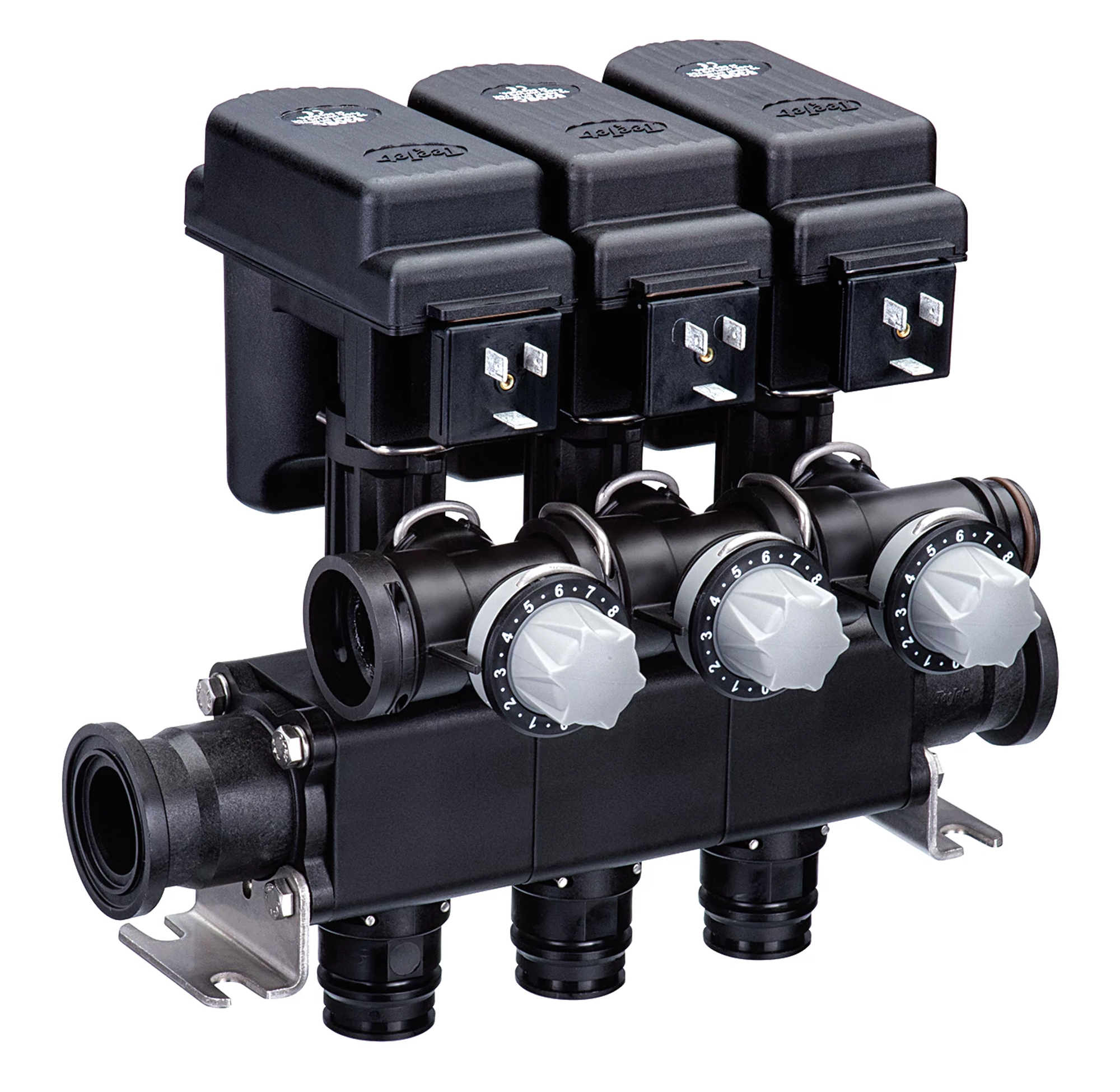

DirectoValve® 530 Series Valve Manifolds, DirectoValve 530 Series Valve Manifolds

Features Include:

• Regulated Bypass Feature Significantly Improves Pressure Stability When Boom
• Sections Are Switched On Or Off
• Graduated Bypass Port Is Adjusted To Match Boom Section Flow Which Reduces
• System Pressure Increases And Decreases
• Regulated Bypass Allows The Regulating Valve To Maintain A More Stable Position
• Bypass Port Is Compatible With Existing Teejet Quick Connect Fittings
• Solid State Circuit Board With Optical Switching
• Motor Head Sealed To IP67
• Choice Of Mini-Din Or Metri-Pack Connector
• Quick Release Motor Head Allows For Field Inspection
• Resettable Internal Fuse (Disconnect Power For 20 Seconds To Reset)
• "EC" Style Motor Compatible With Teejet Automatic Boom Section Controls
• "EC" Style Motor Uses A Single Pole, Single Throw Switch
• "E" Style Motor Uses A Double Pole, Double Throw Switch
• Outlet Connections Available In Straight Or 90 Quick Connect Hose Barbs;
• Refer To PL45529
• Stainless Steel Stem Provides Excellent Durability And Chemical Resistance
• Stainless Steel Mounting Brackets Allow For Easy Installation

Specifications:

• Maximum Pressure Rating: 290 psi (20 bar) For Large Quick Connect, Threaded And
• 50-Series Flanged Connections; 215 psi (15 bar) For 75-Series Flanged Connections
• Flow Rate: 10 gpm @ 5 psi (37.9 l/min @ 0.34 bar) Pressure Drop
• Flow Rate: 14 gpm @ 10 psi (53.0 l/min @ 0.68 bar) Pressure Drop
• Current Draw: 0.5 A
• Response Time: 0.7 Sec
• Wetted Materials: Polypropylene, Nylon, Stainless Steel, FKM
• Length: 7.1" (180 mm); Width: 2.3" (59 mm); Height: 9.5" (241 mm)
