* Staked-in vane will not fall out during operation
* Hex body allows standard sockets for installation/removal
* Full cone spray pattern with uniform distribution
* Low profile design

 Flow:
* The liquid enters the nozzle and proceeds through the vane.
* The vane causes the liquid to swirl.
* The design of the nozzle ensures the liquid continues to swirl as it enters the orifice.
* The liquid breaks up as it exits the nozzle orifice forming a well defined cone pattern.
* The drops are uniform in size and distributed equally throughout the spray pattern.

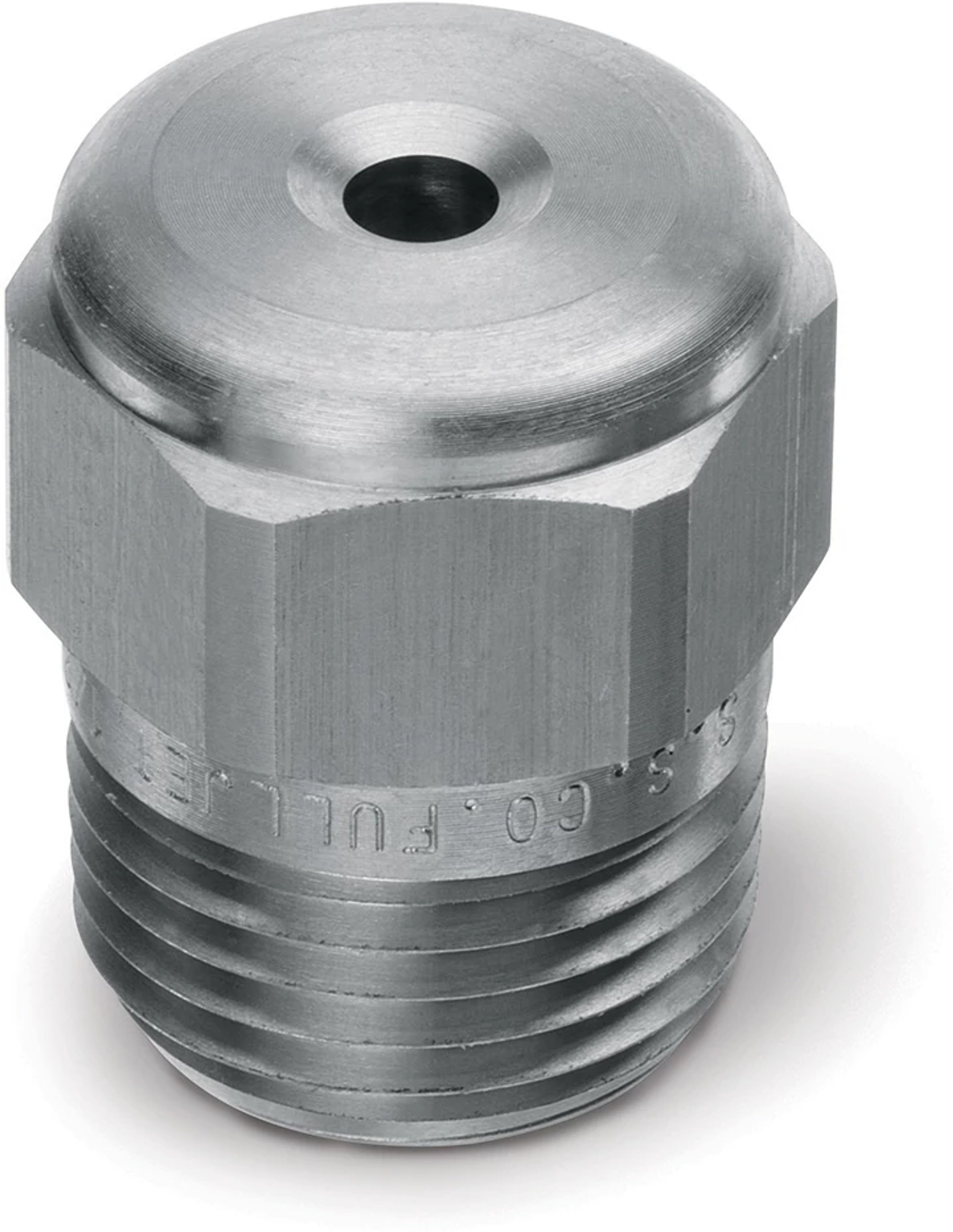

HX, HHX FullJet® Staked-Vane Full Cone Nozzle

Standard full cone nozzles generally produce spray angles of 40° to 95° and are commonly used for a broad range of applications including low pressure rinsing and washing, cooling solids and gases, evaporative cooling of liquids and humidifying.

Standard Full Cone Nozzles

HX, HHX FullJet® Staked-Vane Full Cone Nozzle, HX, HHX

Model Specifications

Product Type

General Information

Description

Specification Summary

Downloads

Documents

Alternative Models

Performance

Liquid Flow Rate
