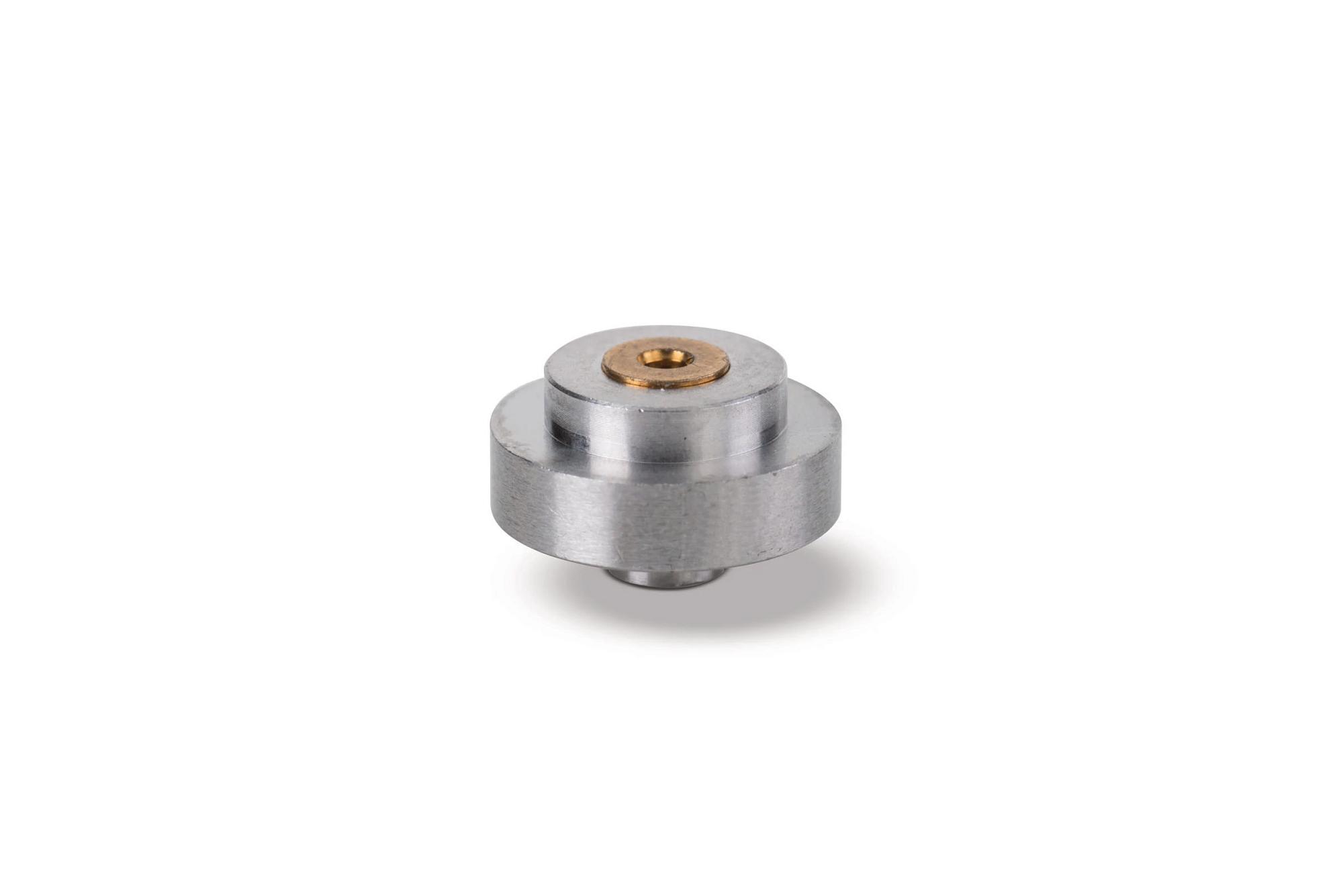

Ultra-High Pressure Spray Tips - Up to 60,000 psi (4000 bar), VS051
Images are representative.
Images are representative. Products may differ in material or configuration.
General Information
Description
- Ultra-high pressure, high impact flat spray or solid stream
- Operating pressures are up to 10 times higher than other high pressure nozzles – up to 60,000 psi (4000 bar)
- Traditional and quick-connect options;
- Save on nozzle replacement costs – nozzle bodies can be reused – only spray tips are replaced
- Long wear life – nozzles are hardened stainless steel. Spray tips are available with extra hard sapphire inserts for maximum wear resistance
- Spray angles from 0° to 45°
- Uniform spray distribution from 0.03 to 78 gpm (0.11 to 295 lpm)
- Nozzle bodies include O-ring, gasket (58833 only) and tip retainer
Specification Summary
Liquid Pressure Range
15,000 - 60,000 psi
1,000 - 4,000 bar
Material Composition
Stainless Steel, Sapphire (Insert)
Stainless Steel, Sapphire (Insert)
Relative Drop Size Range
100 - 500 µm
100 - 500 µm
Spray Pattern
Flat Spray
Flat Spray
Product Type
Tip
Tip
