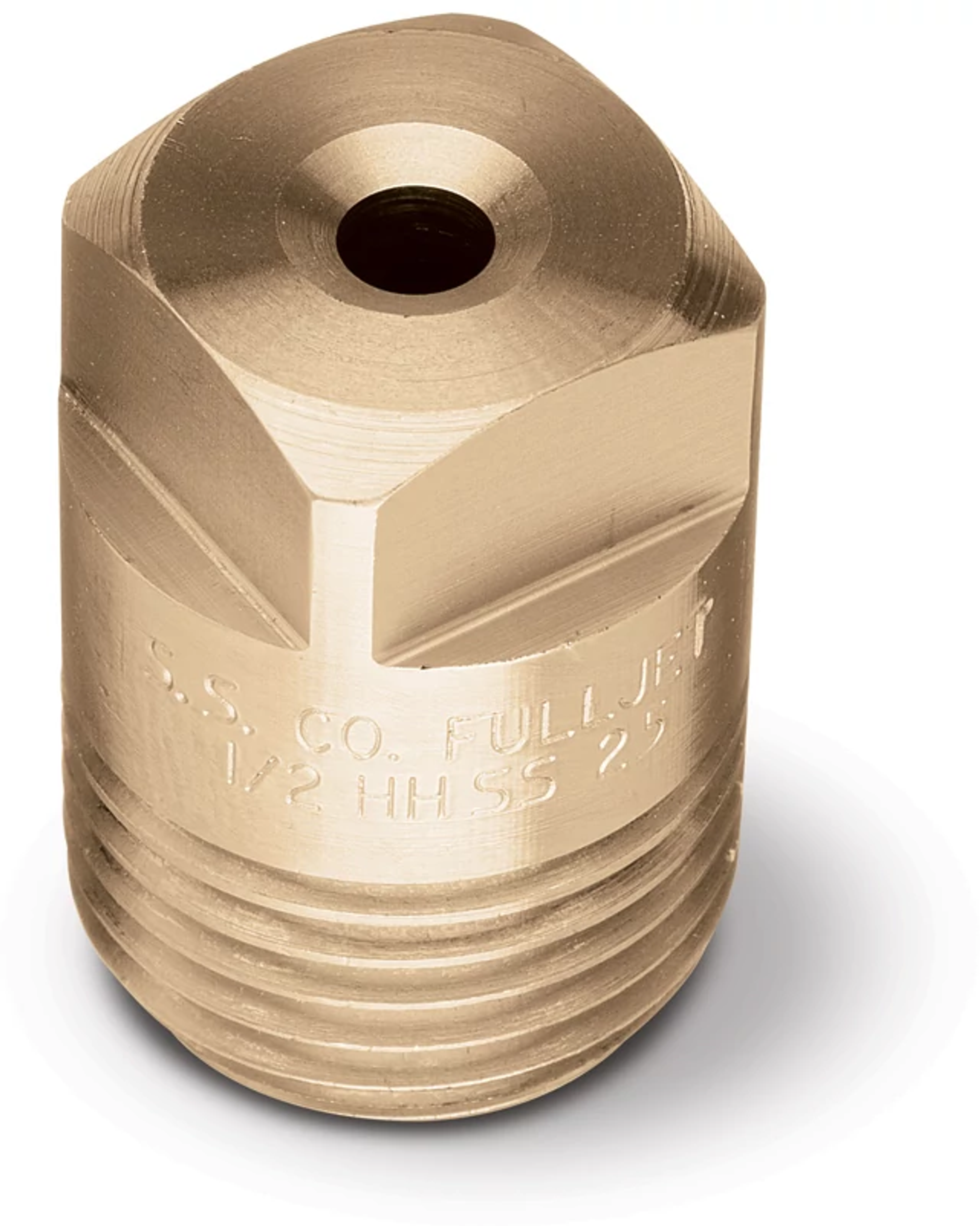

FullJet® Nozzle, Brass, 1/4HH-14W
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Inlet Connection Thread Type:NPT
Inlet Connection Type:Threaded (Male NPT)
Material Composition:Brass
Model:HH-W
General Information
Description
- Solid cone-shaped spray pattern with round impact area
- Unique vane design minimizes turbulence of the fluid to ensure uniform spray distribution and consistent spray coverage
- Large unobstructed flow passages minimize clogging and increase throughput
- Removable caps and vanes in most models make maintenance fast and easy
- Standard, wide and narrow spray angles
Flow
The liquid enters the nozzle and proceeds through the vane. The vane causes the liquid to swirl. The design of the nozzle ensures the liquid continues to swirl as it enters the orifice. The liquid breaks up as it exits the nozzle orifice forming a well defined cone pattern. The drops are uniform in size and distributed equally throughout the spray pattern.
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate Range
1 - 3.6 gpm
4.2 - 13.7 l/min
Liquid Pressure Range
5 - 80 psi
0.4 - 6 bar
Material Composition
Brass
Brass
Relative Drop Size Range
1,000 - 5,000 µm
1,000 - 5,000 µm
Spray Pattern
Full Cone
Full Cone
Product Type
Nozzle
Nozzle
Product Downloads
Documents
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Configuration
Capacity Size
14W
14W
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate at Rated Pressure
1.4 gpm
5.3 l/min
Material Composition
Brass
Brass
Model
HH-W
HH-W
Spray Angle at Rated Pressure
120°
120°
Design Feature
Has guide vane, One-piece body
Has guide vane, One-piece body
Product Type
Nozzle
Nozzle
Drop Sizes
Relative Drop Size Group
1,000 - 5,000 µm (Heavy Rain)
1,000 - 5,000 µm (Heavy Rain)
Performance
Spray Angle Range
103 - 120°
103 - 120°
Spray Angle
103° @ 80 psi, 114° @ 5 psi, 120° @ 10 psi
103° @ 6 bar, 114° @ 0.4 bar, 120° @ 0.7 bar
Product Category
Brand
FullJet®
FullJet®
Spray Angle Catalog Code
Wide
Wide
Standard Feature
Diameter
0.531 in
1.349 cm
Equivalent Orifice Diameter
0.141 in
3.581 mm
Length
0.88 in
2.235 cm
Liquid Flow Rate Range
1 - 3.6 gpm
4.2 - 13.7 l/min
Liquid Pressure Range
5 - 80 psi
0.4 - 6 bar
Maximum Free Passage Diameter
0.063 in
1.6 mm
Rated Pressure
10 psi
0.689 bar
Relative Drop Size Range
1,000 - 5,000 µm
1,000 - 5,000 µm
Spray Pattern
Full Cone
Full Cone
Weight
0.5 oz
0.01 kg
