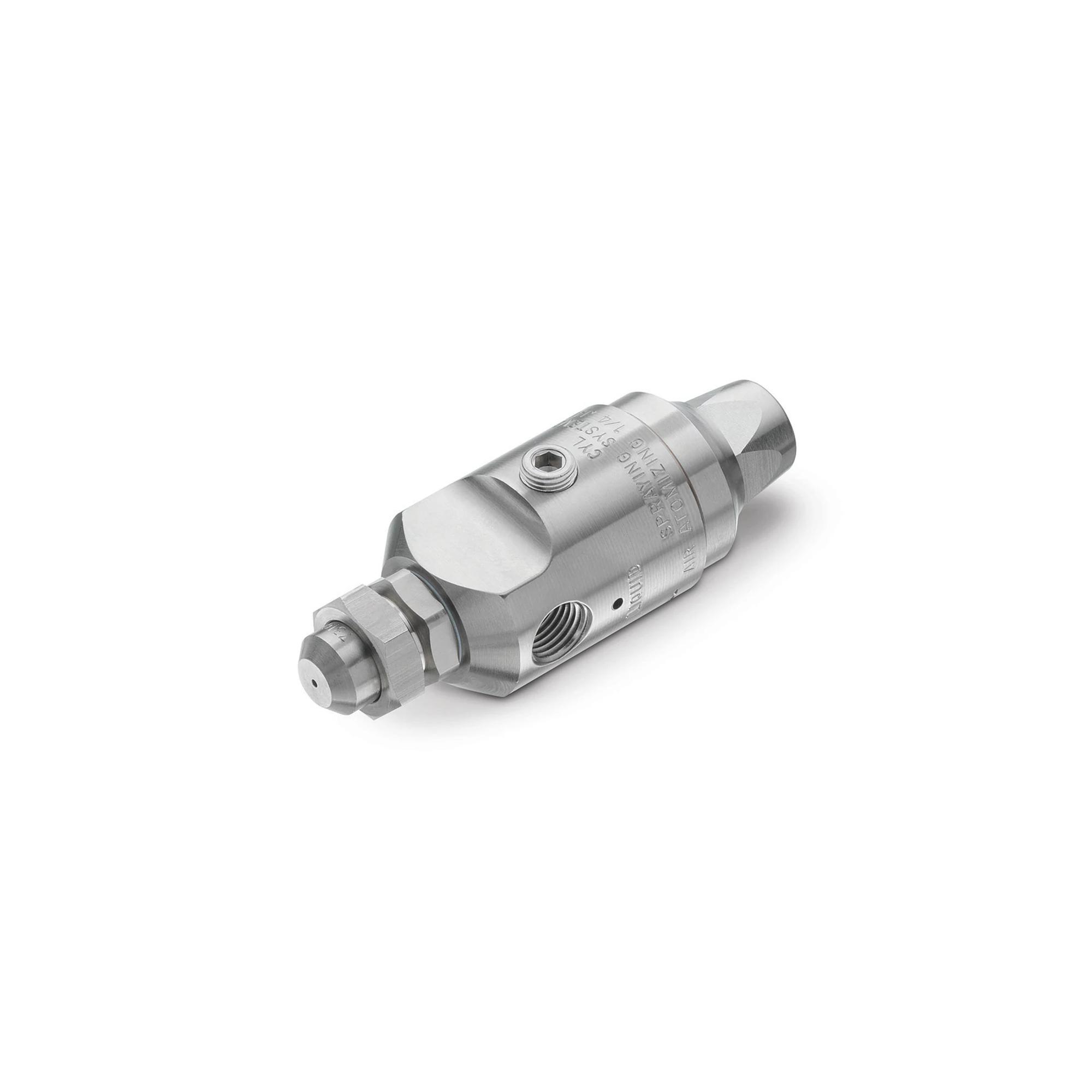

Automatic Air-Actuated Air Atomizing Nozzle, Nickel-Plated Brass, 1/4JAUCO-40
Images are representative.
Images are representative. Products may differ in material or configuration.
+ 7
This product is discontinued. A newer version is available.
Product Configuration
Inlet Connection Thread Type:NPT
Needle Size:40
General Information
Description
- Flow rates up to 1.2 gpm (4.5 lpm)
- Drip Free™ set-ups provide complete shut-off
- Nickel-plated brass or stainless steel construction
- Clean-out needle operates with every spray cycle to reduce clogging
Specification Summary
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Material Composition
Nickel-plated Brass
Nickel-plated Brass
Maximum Flow
1.2 gpm
4.5 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Product Type
Nozzle
Nozzle
Inlet Connection Type
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Product Downloads
Documents
Specifications
Configuration
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Material Composition
Nickel-plated Brass
Nickel-plated Brass
Model
1/4JAUCO
1/4JAUCO
Needle Size
40
40
Product Type
Nozzle
Nozzle
Design Feature
Has cleanout needle
Has cleanout needle
Inlet Connection Type
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Standard Feature
Cap Hex Size
0.875 in
22.2 mm
Height
1.59 in
40 mm
Length
3.88 in
99 mm
Maximum Air Pressure
30 psi
2.1 bar
Maximum Flow
1.2 gpm
4.5 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Spray Tips
Contact Spraying Systems Co.
Contact Spraying Systems Co.
Width
1.5 in
38 mm
