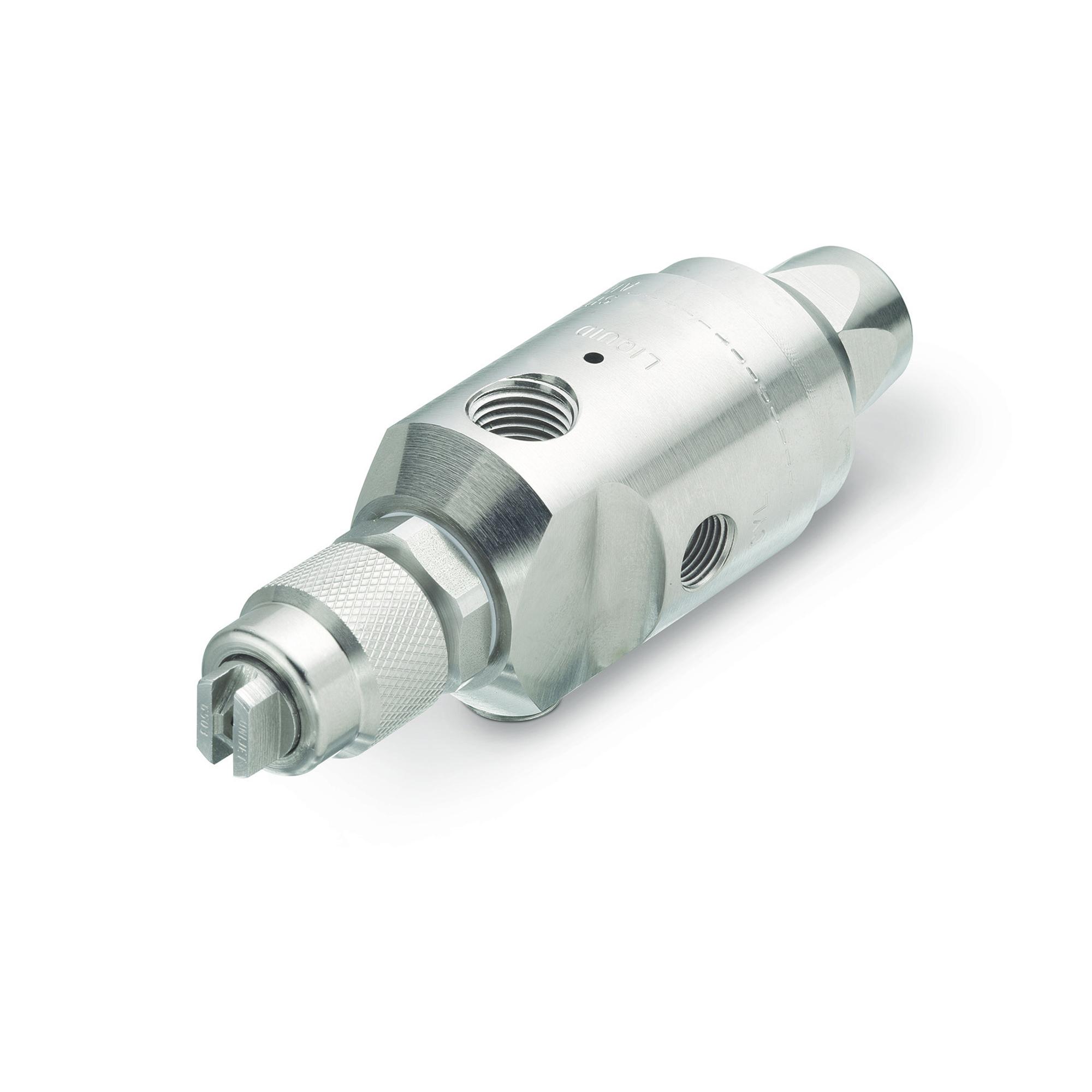

Automatic Air-Actuated Hydraulic Nozzle, Nickel-Plated Brass, 1/4JAUH
Images are representative.
Images are representative. Products may differ in material or configuration.
This product is discontinued. A newer version is available.
Product Configuration
Inlet Connection Thread Type:NPT
General Information
Description
- Compact design – 4.5" (114 mm) total length, 1.25 lbs. (0.57 kg) weight (approx.)
- Flow rates up to 0.8 gpm (3.0 lpm)
- Stainless steel or nickel-plated brass construction
Specification Summary
Inlet Connection Gender
Female
Female
Inlet Connection Thread Type
NPT
NPT
Material Composition
Nickel-plated Brass
Nickel-plated Brass
Maximum Flow
0.8 gpm
3 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Product Type
Nozzle
Nozzle
Inlet Connection Size
1/4 in @ Air Line, 1/4 in @ Liquid Line
1/4 in @ Air Line, 1/4 in @ Liquid Line
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Product Downloads
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Specifications
Configuration
Inlet Connection Gender
Female
Female
Inlet Connection Thread Type
NPT
NPT
Material Composition
Nickel-plated Brass
Nickel-plated Brass
Model
1/4JAUH
1/4JAUH
Product Type
Nozzle
Nozzle
Inlet Connection Size
1/4 in @ Air Line, 1/4 in @ Liquid Line
1/4 in @ Air Line, 1/4 in @ Liquid Line
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Standard Feature
Cap Hex Size
0.813 in
20.6 mm
Height
1.5 in
38.1 mm
Length
4.37 in
110.9 mm
Maximum Air Pressure
30 psi
2.1 bar
Maximum Flow
0.8 gpm
3 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Spray Tips
Contact Spraying Systems Co.
Contact Spraying Systems Co.
