Automatic Air-Actuated Air Atomizing Nozzle, 303 Stainless Steel, 1/4JAUPMCO-SS40

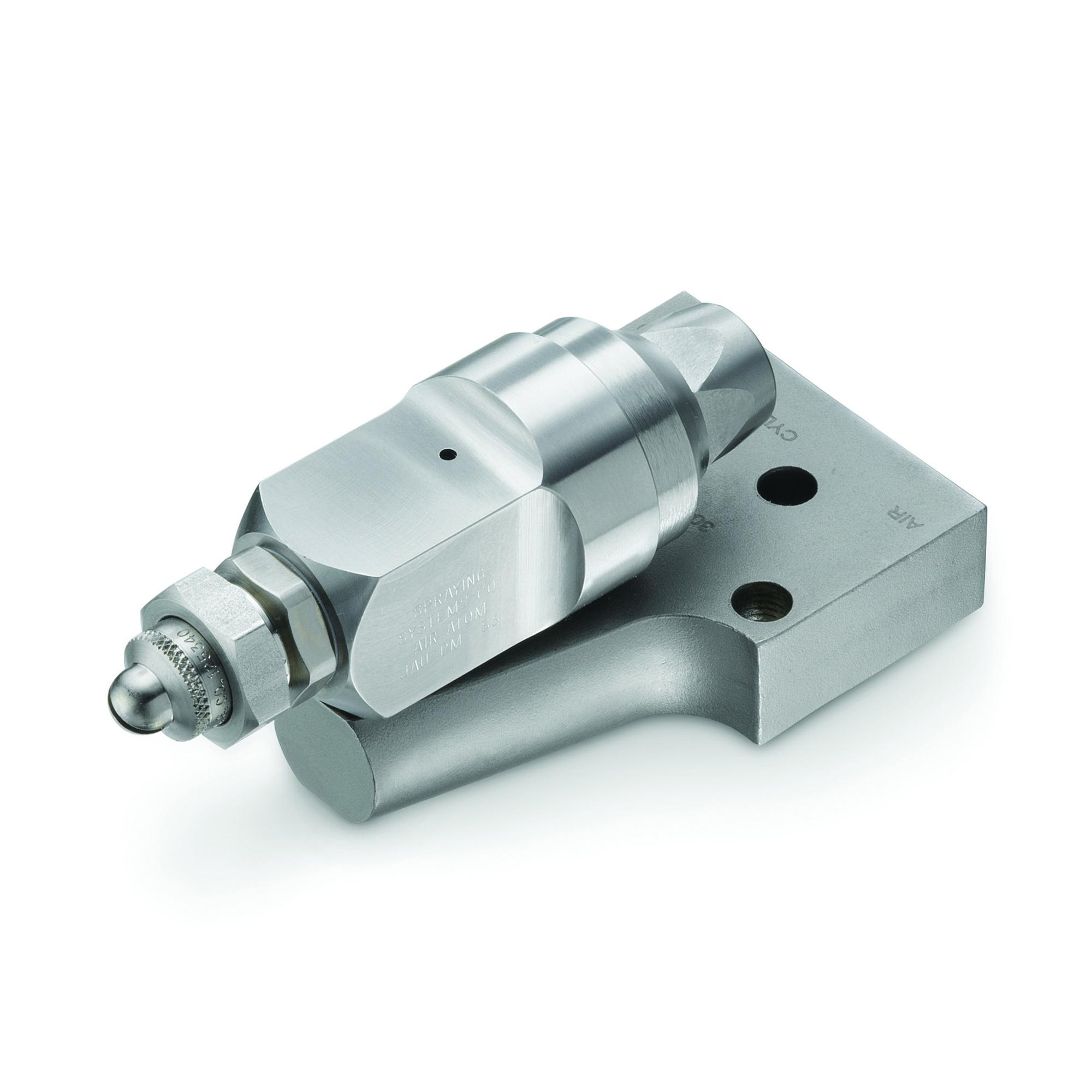

Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Inlet Connection Thread Type:NPT
Needle Size:40
General Information
Description
- Flow rates up to 1.2 gpm (4.5 lpm)
- Drip Free™ set-ups provide complete shut-off
- Nickel-plated brass or stainless steel construction
- Combines clean-out needle for reduced clogging with convenience of plate-mounting
Specification Summary
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Maximum Flow
1.2 gpm
4.5 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Product Type
Nozzle
Nozzle
Inlet Connection Type
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Product Downloads
Specifications
Configuration
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Material Composition
303 Stainless Steel
303 Stainless Steel
Model
1/4JAUPMCO
1/4JAUPMCO
Product Type
Nozzle
Nozzle
Design Feature
Has cleanout needle
Has cleanout needle
Inlet Connection Type
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Threaded (Female NPT) @ Liquid Line, Threaded (Female NPT) @ Air Line
Standard Feature
Cap Hex Size
0.875 in
22.2 mm
Height
1.59 in
40 mm
Length
3.88 in
99 mm
Maximum Air Pressure
30 psi
2.1 bar
Maximum Flow
1.2 gpm
4.5 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Needle Size
40
40
Spray Tips
Contact Spraying Systems Co.
Contact Spraying Systems Co.
Width
1.5 in
38 mm
