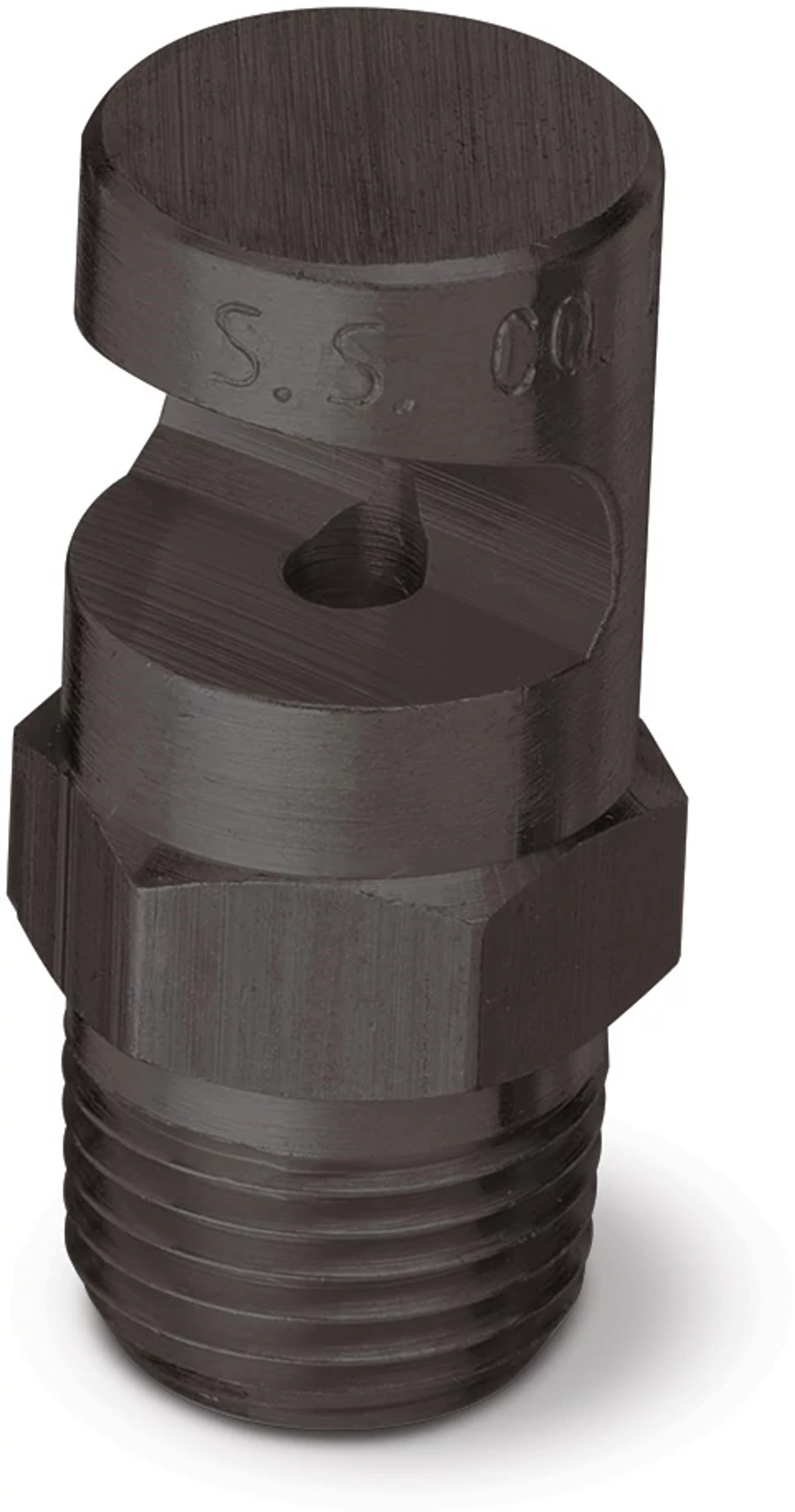

FloodJet® Nozzle, Polyvinyl Chloride, 1/4K-PVC24
Images are representative.
Images are representative. Products may differ in material or configuration.
+ 3
Product Configuration
Inlet Connection Thread Type:NPT
Inlet Connection Type:Threaded (Male NPT)
Material Composition:Polyvinyl Chloride
General Information
Description
- Ideal for operations requiring wide coverage
- Wide angle, deflected type flat fan spray pattern
- Use when nozzles can be mounted horizontally
- Orifice is protected from damage and is designed to minimize clogging
- Spray angles from 73° to 153°
- Uniform spray distribution from .04 to 110 gpm (.14 to 410 lpm)
- Operating pressures up to 60 psi (4 bar)
- TEK provides a tapered edge spray pattern to eliminate heavy edges while maintaining the wide spray pattern
Flow
As liquid passes through the nozzle, it hits the deflector surface and spreads out to form a flat spray pattern. The distribution is even from the center of the spray. The deflector surface enables the formation of very wide spray angles compared to other flat spray nozzles.
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate Range
1.3 - 5.9 gpm
4.9 - 22 l/min
Liquid Pressure Range
3 - 60 psi
0.2 - 3 bar
Material Composition
Polyvinyl Chloride
Polyvinyl Chloride
Relative Drop Size Range
100 - 5,000 µm
100 - 5,000 µm
Spray Pattern
Flat Spray
Flat Spray
Product Type
Nozzle
Nozzle
Product Downloads
Documents
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Configuration
Capacity Size
24
24
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate at Rated Pressure
2.4 gpm
9.085 l/min
Material Code
PVC
PVC
Material Composition
Polyvinyl Chloride
Polyvinyl Chloride
Model
K
K
Product Type
Nozzle
Nozzle
Drop Sizes
Relative Drop Size Group
100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
Performance
Spray Angle Range
115 - 144°
115 - 144°
Spray Angle
115° @ 7 psi, 131° @ 20 psi, 144° @ 60 psi
115° @ 0.5 bar, 131° @ 1.5 bar, 144° @ 4 bar
Product Category
Brand
FloodJet®
FloodJet®
Spray Angle Catalog Code
Wide
Wide
Standard Feature
Body Hex Size
9/16 in
9/16 in
Equivalent Orifice Diameter
0.162 in
4.115 mm
Length
1.343 in
3.411 cm
Liquid Flow Rate Range
1.3 - 5.9 gpm
4.9 - 22 l/min
Liquid Pressure Range
3 - 60 psi
0.2 - 3 bar
Rated Pressure
10 psi
0.689 bar
Relative Drop Size Range
100 - 5,000 µm
100 - 5,000 µm
Spray Pattern
Flat Spray
Flat Spray
Weight
1 oz
0.03 kg
