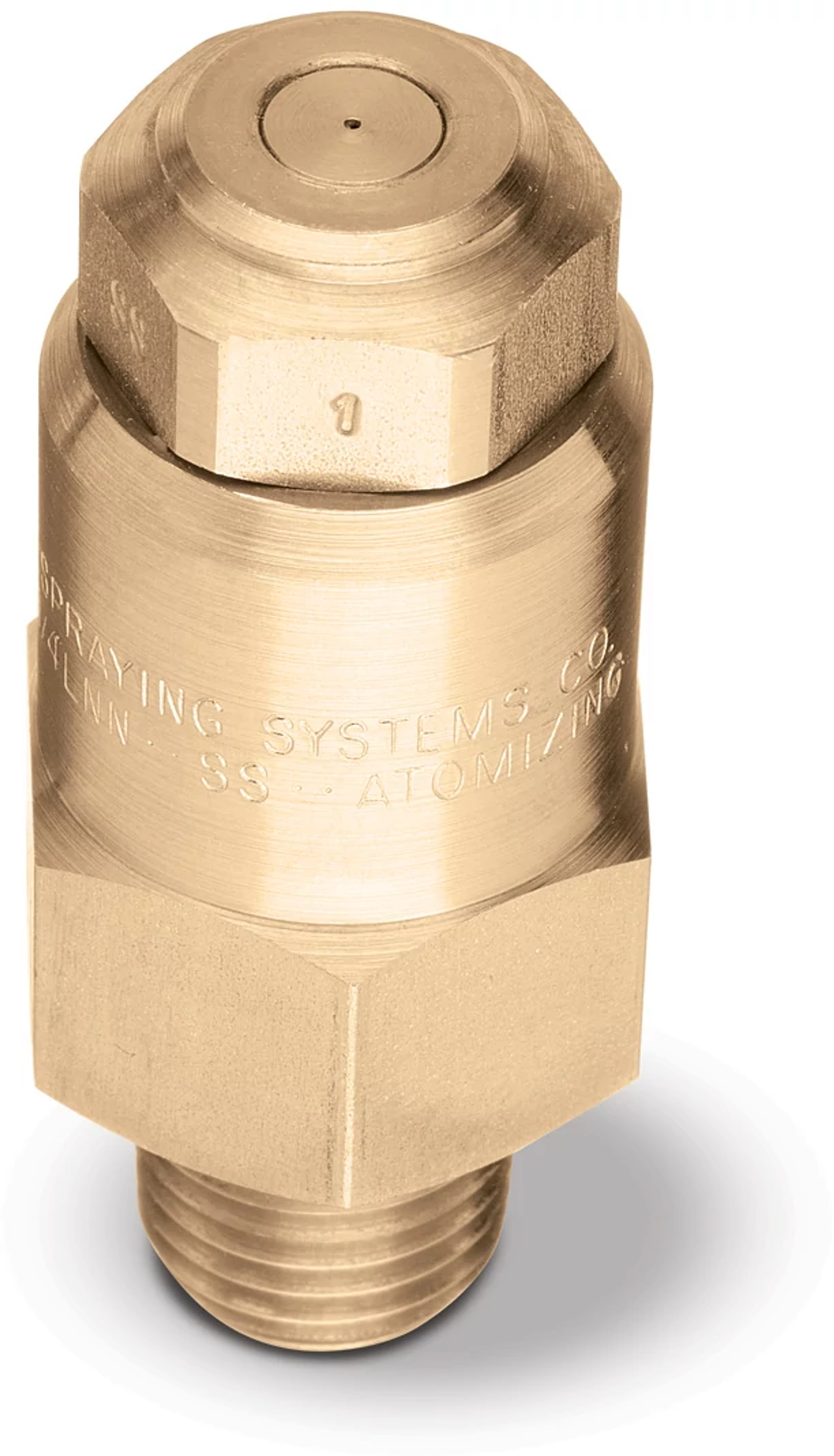

Hydraulic Atomizing Nozzle, Brass with Strainer, 1/4LNN-1
Images are representative.
Images are representative. Products may differ in material or configuration.
+ 3
Product Configuration
Inlet Connection Thread Type:NPT
Inlet Connection Type:Threaded (Male NPT)
Material Composition:Brass
Model:LNN
General Information
Description
- Finely atomized, hollow cone spray without compressed air
- Very small drops often achieving misting performance
- Ideal for use in dust control and humidification applications
- Wall-mount options for installation on room walls, vessel bulkheads or pipeline
- Orifice inserts, cores and strainers are easily removed for inspection or cleaning
- Most models can be supplied with an internal strainer
- Spray angles: 45° to 72°
- Uniform spray distribution from 1 to 5 gph (3.9 to 20 lph)
- Operating pressures from 40 to 1000 psi (3 to 80 bar)
Flow
The liquid passes through slots in the core component. The slots make the liquid spin in a circle at a very high speed. The energy from the spinning action causes the liquid to break up into very small droplets and form a hollow cone pattern as it exits the orifice.
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate Range
1 - 5 gph
3.9 - 20 l/h
Liquid Pressure Range
40 - 1,000 psi
2 - 80 bar
Material Composition
Brass
Brass
Relative Drop Size Range
10 - 500 µm
10 - 500 µm
Spray Pattern
Fine Spray
Fine Spray
Product Type
Nozzle
Nozzle
Product Downloads
Documents
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Backend
Core Number
210
210
Configuration
Capacity Size
1
1
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Liquid Flow Rate at Rated Pressure
1 gph
3.785 l/h
Material Composition
Brass
Brass
Model
LNN
LNN
Spray Angle at Rated Pressure
45°
45°
Design Feature
Integral strainer
Integral strainer
Product Type
Nozzle
Nozzle
Drop Sizes
Relative Drop Size Group
10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
Performance
Spray Angle Range
45 - 72°
45 - 72°
Spray Angle
45° @ 40 psi, 62° @ 80 psi, 72° @ 300 psi
45° @ 3 bar, 62° @ 6 bar, 72° @ 20 bar
Product Category
Spray Angle Catalog Code
Standard
Standard
Standard Feature
Body Hex Size
13/16 in
13/16 in
Cap Hex Size
0.625 in
1.588 cm
Equivalent Orifice Diameter
0.02 in
0.508 mm
Length
2.092 in
5.314 cm
Liquid Flow Rate Range
1 - 5 gph
3.9 - 20 l/h
Liquid Pressure Range
40 - 1,000 psi
2 - 80 bar
Rated Pressure
40 psi
2.76 bar
Relative Drop Size Range
10 - 500 µm
10 - 500 µm
Spray Pattern
Fine Spray
Fine Spray
Weight
3.3 oz
0.09 kg
