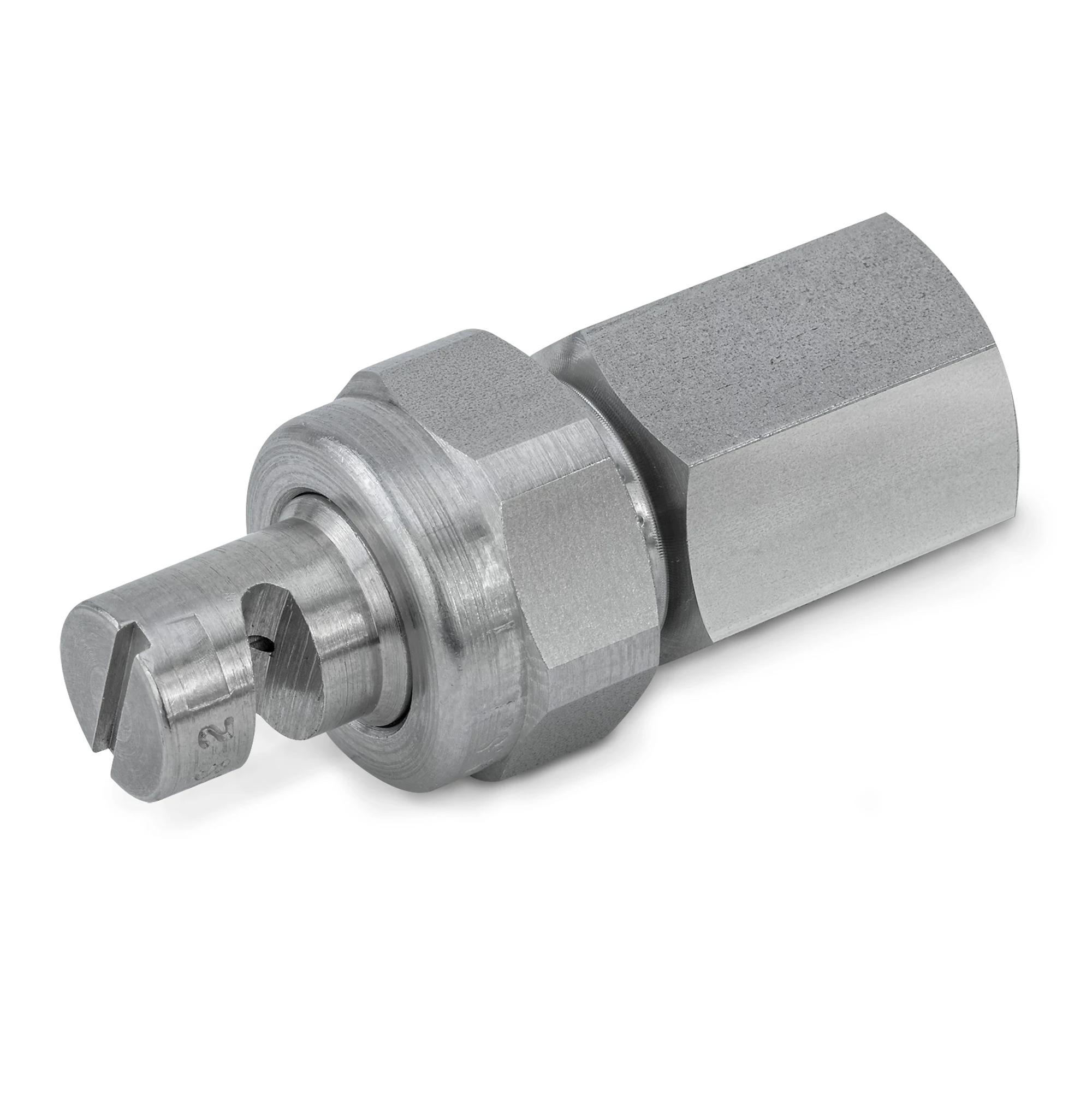

Flat Fan, UniJet® FloodJet® Nozzle, 303 Stainless Steel, 1/4T-SS+TK-SS.50
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Inlet Connection Thread Type:NPT
General Information
Description
- A large choice of interchangeable spray tips, body types/sizes, materials, spray angles, flow rates and accessories allows use of different components in a single header to match performance to different operations
- Design allows easy tip change out in place – remove tips by unscrewing the retainer cap
- Wide angle, deflected type flat fan spray pattern
- Spray angles from 73° to 153°
- Uniform spray distribution with flow rates from .06 to 12.2 gpm (.28 to 46 lpm)
- Operating pressures up to 60 psi (4 bar)
- Assembly consists of nozzle body, strainer, spray tip and tip retainer
Flow
As liquid passes through the nozzle, it hits the deflector surface and spreads out to form a flat spray pattern. The distribution is even from the center of the spray. The deflector surface enables the formation of very wide spray angles compared to other flat spray nozzles.
Specification Summary
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Female NPT)
Threaded (Female NPT)
Liquid Flow Rate Range
0.07 - 0.12 gpm
0.28 - 0.46 l/min
Liquid Pressure Range
20 - 60 psi
1 - 3 bar
Material Composition
303 Stainless Steel
303 Stainless Steel
Relative Drop Size Range
100 - 5,000 µm
100 - 5,000 µm
Spray Pattern
Flat Spray
Flat Spray
Product Type
Nozzle Assembly
Nozzle Assembly
Product Downloads
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Configuration
Body Type
T
T
Capacity Size
.50
.50
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Female NPT)
Threaded (Female NPT)
Liquid Flow Rate at Rated Pressure
0.05 gpm
0.19 l/min
Material Code
SS
SS
Material Composition
303 Stainless Steel
303 Stainless Steel
Model
TK
TK
Tip Type
TK
TK
Product Type
Nozzle Assembly
Nozzle Assembly
Drop Sizes
Relative Drop Size Group
100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
100 - 500 µm (Light Rain), 500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)
Performance
Spray Angle Range
89 - 122°
89 - 122°
Spray Angle
89° @ 20 psi, 122° @ 60 psi
89° @ 1.5 bar, 122° @ 4 bar
Product Category
Brand
UniJet®
UniJet®
Spray Angle Catalog Code
Wide
Wide
Sales Part Numbers
Body Sales Part Number
1/4T-SS
1/4T-SS
Tip Sales Part Number
TK-SS.50
TK-SS.50
Standard Feature
Body Hex Size
13/16 in
13/16 in
Equivalent Orifice Diameter
0.023 in
0.584 mm
Length
2 in
5.08 cm
Liquid Flow Rate Range
0.07 - 0.12 gpm
0.28 - 0.46 l/min
Liquid Pressure Range
20 - 60 psi
1 - 3 bar
Rated Pressure
10 psi
0.689 bar
Relative Drop Size Range
100 - 5,000 µm
100 - 5,000 µm
Spray Pattern
Flat Spray
Flat Spray
Weight
2.5 oz
0.07 kg
