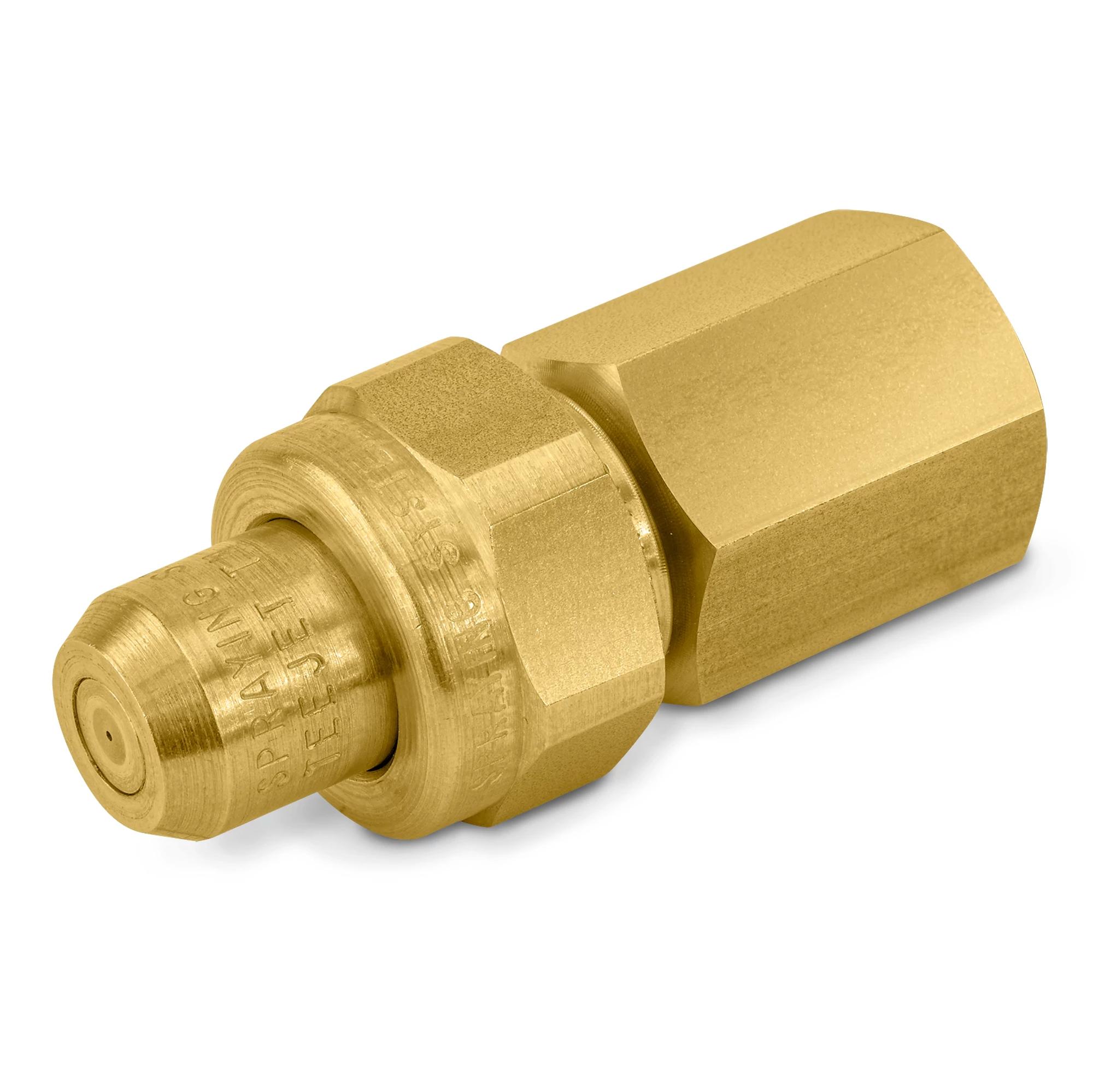

Hollow Cone, UniJet® Nozzle, Brass, 1/4T+TN-18
Product Configuration
Inlet Connection Thread Type:NPT
Inlet Connection Type:Threaded (Female NPT)
Material Composition:Brass
General Information
Description
- Quick-connect nozzles reduce maintenance time – bodies remain on pipe/header
- Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced; tips fit on male or female bodies
- Hollow cone spray pattern with a circular impact area
- Excellent atomization at relatively low pressures
- Spray angles: Standard – 13° to 114°, Wide – 130° to 140°
- Uniform spray distribution from 3.6 to 4,920 gph (13.2 to 17,760 lph)
- Operating pressures up to 400 psi (25 bar)
- Orifice inserts, cores and strainers are easily removed for inspection or cleaning
- TN versions provide very fine atomized sprays using liquid pressure alone; compressed air not required
- Spray angles: Standard – 43° to 91°
- Uniform spray distribution from .82 to 184 gph (3.1 to 701 lph)
- Operating pressures up to 2000 psi (140 bar)
Flow
As the liquid passes through the nozzle, it is forced to pass through slots in the orifice. These slots make the liquid spin in a circle at a high speed as it exits the orifice, creating the hollow cone pattern.
Specification Summary
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Female NPT)
Threaded (Female NPT)
Liquid Flow Rate Range
15.6 - 90 gph
58 - 367 l/h
Liquid Pressure Range
30 - 1,000 psi
1.5 - 80 bar
Relative Drop Size Range
10 - 500 µm
10 - 500 µm
Spray Pattern
Hollow Cone
Hollow Cone
Product Type
Nozzle Assembly
Nozzle Assembly
Product Downloads
Documents
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Backend
Core Number
422
422
Configuration
Body Type
T
T
Capacity Size
18
18
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Female NPT)
Threaded (Female NPT)
Liquid Flow Rate at Rated Pressure
0.3 gpm
1.1 l/min
Material Composition
Brass
Brass
Model
TN
TN
Spray Angle at Rated Pressure
81°
81°
Tip Type
TN
TN
Product Type
Nozzle Assembly
Nozzle Assembly
Drop Sizes
Relative Drop Size Group
10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
10 - 100 µm (Fog), 100 - 500 µm (Light Rain)
Performance
Spray Angle Range
81 - 86°
81 - 86°
Spray Angle
81° @ 40 psi, 84° @ 80 psi, 86° @ 300 psi
81° @ 3 bar, 84° @ 6 bar, 86° @ 20 bar
Product Category
Brand
UniJet®
UniJet®
Spray Angle Catalog Code
Standard
Standard
Sales Part Numbers
Body Sales Part Number
1/4T
1/4T
Tip Sales Part Number
TN-18
TN-18
Standard Feature
Body Hex Size
13/16 in
13/16 in
Equivalent Orifice Diameter
0.076 in
1.93 mm
Length
1.906 in
4.841 cm
Liquid Flow Rate Range
15.6 - 90 gph
58 - 367 l/h
Liquid Pressure Range
30 - 1,000 psi
1.5 - 80 bar
Rated Pressure
40 psi
2.758 bar
Relative Drop Size Range
10 - 500 µm
10 - 500 µm
Spray Pattern
Hollow Cone
Hollow Cone
Weight
2.5 oz
0.07 kg
