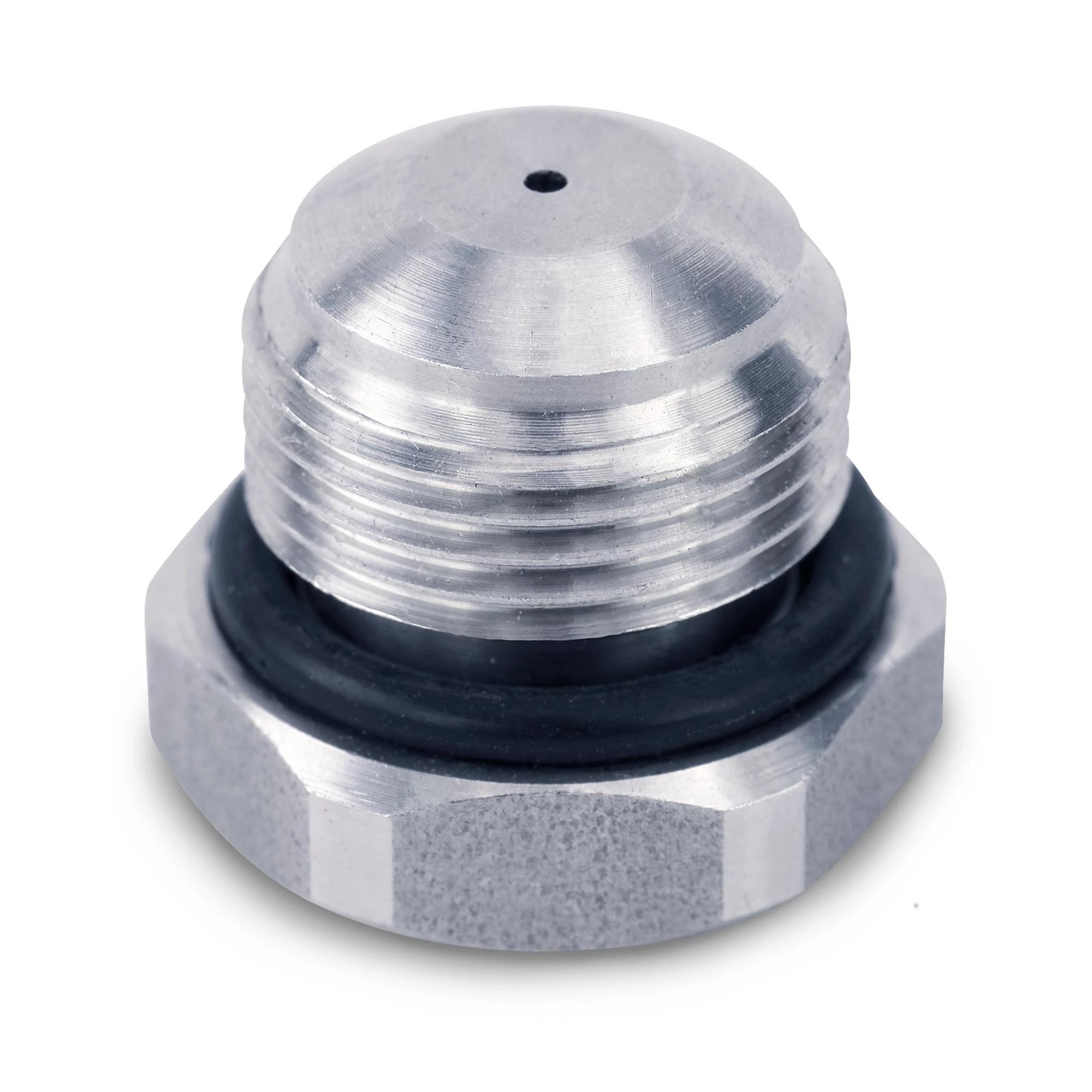

NeedleJet Solid Stream Nozzle with O-ring, 117040-94-316SS
Images are representative.
Images are representative. Products may differ in material or configuration.
General Information
Description
- Powerful solid stream sprays to effectively clean and wash felts, fabric/wire and suction rolls
- Precision-machined to provide tight flow control
- For use with a wide range of showers, including oscillating
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
9/16-24 in
9/16-24 in
Inlet Connection Thread Type
UNEF
UNEF
Material Composition
316 Stainless Steel, Buna (O-Ring)
316 Stainless Steel, Buna (O-Ring)
Maximum Pressure
1,000 psi
69 bar
Product Type
Nozzle
Nozzle
Product Performance
Liquid Flow Rate
Specifications
Configuration
Capacity Size
94
94
Inlet Connection Gender
Male
Male
Inlet Connection Size
9/16-24 in
9/16-24 in
Inlet Connection Thread Type
UNEF
UNEF
Material Composition
316 Stainless Steel, Buna (O-Ring)
316 Stainless Steel, Buna (O-Ring)
Product Type
Nozzle
Nozzle
Performance
Spray Angle
0° @ 40 psi
0° @ 2.8 bar
Standard Feature
A Dimension
0.618 in
1.57 cm
B Dimension
0.425 in
1.08 cm
Diameter
0.75 in
1.905 cm
Equivalent Orifice Diameter
0.094 in
0.239 cm
Maximum Pressure
1,000 psi
69 bar
