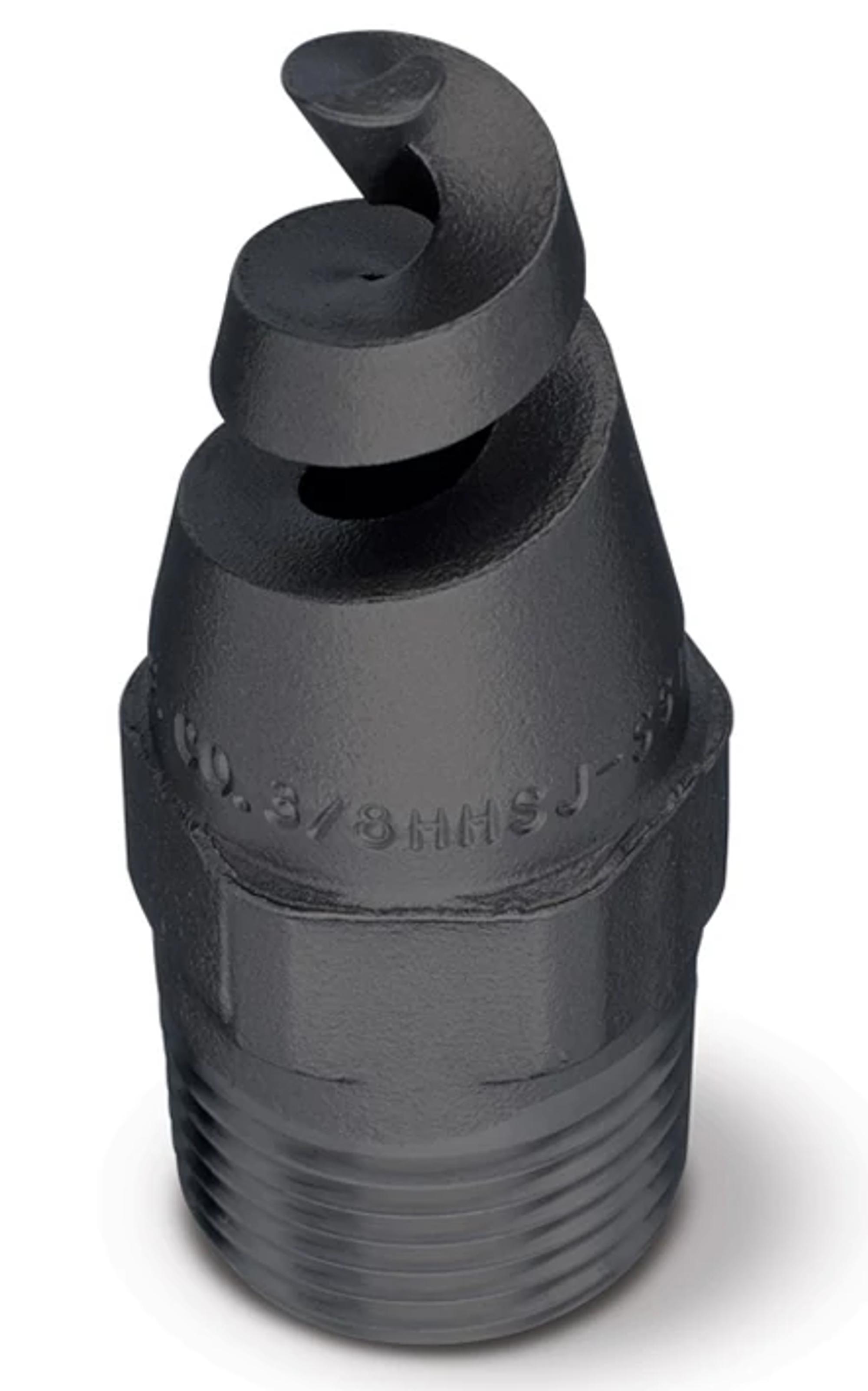

SpiralJet® Spiral Nozzle, Polyvinyl Chloride, 3/8HHSJ-PVC9053

Model:

+ 2

Product Configuration

Inlet Connection Thread Type:NPT
Inlet Connection Type:Threaded (Male NPT)
Material Composition:Polyvinyl Chloride
Model:HHSJ

General Information

Description

  • Spiral nozzles (also referred to as helix nozzles, corkscrew nozzles and pigtail nozzles) produce solid cone spray patterns with a circular impact area
  • Open passages ideal for use with fluids with particulates
  • Maximum liquid throughput for a given pipe size
  • Spray angles from 60° to 170°
  • Uniform spray distribution from .7 to 3320 gpm (2.7 to 11967 lpm)
  • Operating pressures up to 400 psi (25 bar)
  • Compact size enables easy installation or retrofit on most pipe systems
  • Certain nozzles available with UL listing for fire protection applications

Flow

The liquid enters the nozzle and passes through the orifice. The liquid exits the nozzle through the voids in the spiral. As it deflects off the spiral surface, a full cone pattern is formed.

Specification Summary

Inlet Connection Gender
Male
Inlet Connection Size
3/8 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Male NPT)
Liquid Flow Rate Range
5.3 - 34 gpm
Liquid Pressure Range
10 - 400 psi
Relative Drop Size Range
500 - 5,000 µm
Spray Pattern
Full Cone
Product Type
Spiral Nozzle

Product Downloads

Documents

Other

Product Performance

Liquid Flow Rate

Specifications

Configuration

Capacity Size
53
Inlet Connection Gender
Male
Inlet Connection Size
3/8 in
Inlet Connection Thread Type
NPT
Inlet Connection Type
Threaded (Male NPT)
Liquid Flow Rate at Rated Pressure
5.3 gpm
Material Composition
Polyvinyl Chloride
Model
HHSJ
Spray Angle at Rated Pressure
90°
Design Feature
Is cast
Product Type
Spiral Nozzle

Drop Sizes

Relative Drop Size Group
500 - 1,000 µm (Moderate Rain), 1,000 - 5,000 µm (Heavy Rain)

Performance

Spray Angle
90° @ 10 psi
Spray Angle Range
90 - 90°

Product Category

Brand
SpiralJet®
Spray Angle Catalog Code
Standard

Standard Feature

Body Hex Size
11/16 in
Equivalent Orifice Diameter
1/4 in
Length
2-3/8 in
Liquid Flow Rate Range
5.3 - 34 gpm
Liquid Pressure Range
10 - 400 psi
Material Code
PVC
Maximum Free Passage Diameter
1/8 in
Rated Pressure
10 psi
Relative Drop Size Range
500 - 5,000 µm
Spray Pattern
Full Cone
Weight
1.8 oz
