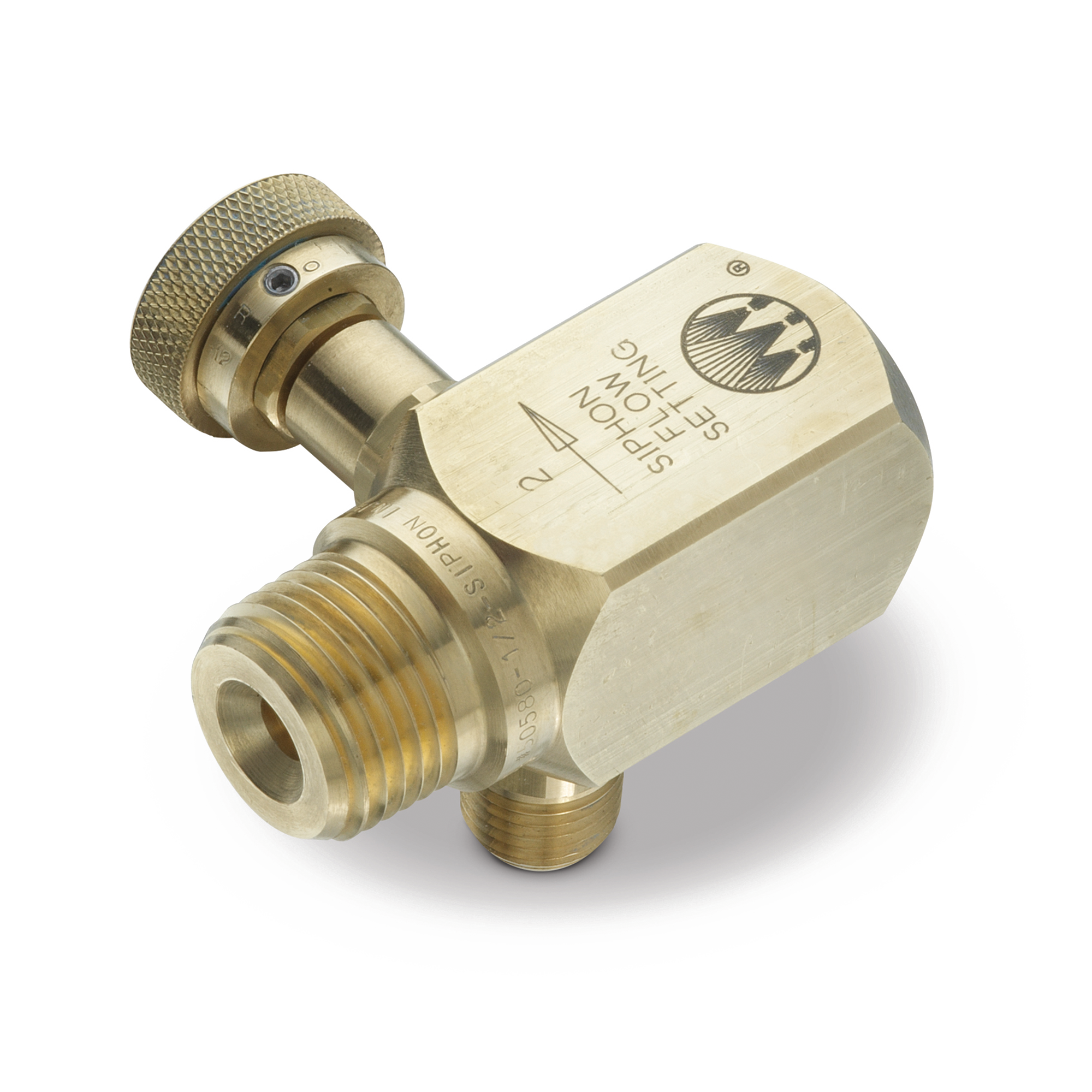

Name: Siphon Injector - Adjustable
SKU: 50580-1/2-05

Performance

Configuration

Standard Feature

Materials

The volume of liquid passing through a nozzle (also called the nozzle’s capacity) is typically measured in gallons per minute or liters per minute. Flow rate is affected by liquid pressure and other factors, including the specific gravity and viscosity of the liquid being sprayed.
> _For more information on liquid flow rate or nozzle capacity, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Liquid Flow Rate

Siphon Inlet Connection Size

Maximum Temperature

Outlet Connection Thread Type

Weight

Threaded nozzles are typically offered with tapered pipe threads. NPT and BSPT threads are the most common. Other thread types are available for selected nozzles.

Inlet Connection Thread Type

Siphon Inlet Connection Type

Standard hydraulic nozzles range in connection size from 1/8” threaded nozzles up to those with 12” flange connections. Larger connection sizes typically have larger flow rates but a wide variety of configurations are available to meet your application needs.

Inlet Connection Size

Different nozzle types are _**“rated”**_ at various pressures, depending on the function of the nozzle and the pressure at which a spray pattern is fully formed. The flow rate (typically measured in gallons per minute or liters per minute) at the rated pressure (measured in pounds per square inch or bar) is highlighted in catalog performance tables and can serve as a reference point for comparing different nozzles.
> _Keep in mind when comparing nozzles of different types that the rated pressures may vary and will affect flow rate._

Liquid Flow Rate at Rated Pressure

Outlet Connection Gender

The pressure (measured in pounds per square inch or bar) at which reference flow rate and spray angle data are taken.

Rated Pressure

Many hydraulic spray nozzles include a numeric capacity size in the part number. Capacity size is often related to the flow rate of the nozzle at the rated spray pressure for that nozzle. For example, the capacity size for a 1/4HH10 FullJet® nozzle is “10”, which reflects a 1.0 gpm flow rate at 10 psi.

Capacity Size

Maximum Pressure

Our products are grouped into these primary product types:
- Nozzle - Body _(a nozzle body without a spray tip)_
- Tip _(a spray tip without a nozzle body)_
- Assembly _(a complete nozzle assembly including both a nozzle body and a spray tip)_

Product Type

Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
> _For more information on nozzle materials, download our [technical reference document](https://spray.widen.net/download/spray/oeafrrites/cat75HYD_us_Tech-Reference_A.pdf) or contact your [local Spraying Systems Co. sales rep](https://www.spray.com/contact/find-a-representative)._

Material Composition

Threaded nozzles are available with male (external) threads or female (internal) threads.

Inlet Connection Gender

Most nozzles are available with NPT or BSPT connections. Other threaded connections are available on select nozzles and additional connection types, such as flange and quick-connect, are also common. Some nozzles are also available with sanitary connections.

Inlet Connection Type

Siphon Inlet Connection Gender

Outlet Connection Size

Liquid Pressure

QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Numbered index adjustment screw enables measured and repeatable siphon control
* Can lock in different mixture ratios; lock-nut secures settings from system vibrations
* Needle valve design ensures precise control of flow
* Easy-open, check-valve design on siphon inlet
* Flow range: 0.5 to 6.0 gpm (1.9 to 22.7 lpm)
* See data sheet 50580 for siphon rate information

Siphon Injector - Adjustable, 50580-1/2-05
