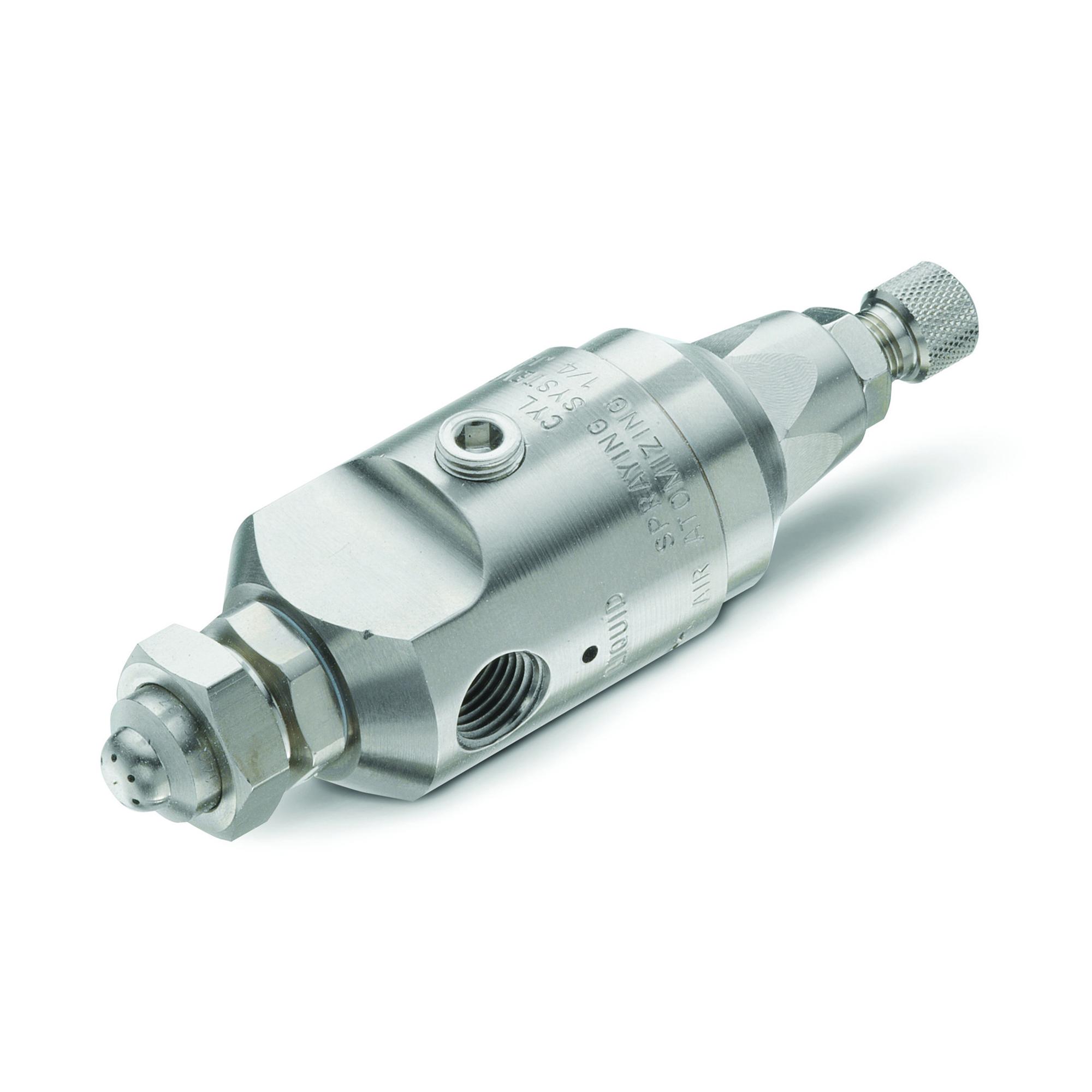

Automatic Air-Actuated Air Atomizing Nozzle, 303 Stainless Steel, 6083-1/4JAUCO-SS-16
Images are representative.
Images are representative. Products may differ in material or configuration.
This product is discontinued. A newer version is available.
Product Configuration
Needle Size:16
General Information
Description
- Flow rates up to 1.2 gpm (4.5 lpm)
- Drip Free™ set-ups provide complete shut-off
- Nickel-plated brass or stainless steel construction
- Single air inlet for cylinder and atomizing air. Includes manual shut-off assembly to temporarily block liquid flow
Specification Summary
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Material Composition
303 Stainless Steel
303 Stainless Steel
Maximum Flow
1.2 gpm
4.5 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Product Type
Nozzle
Nozzle
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Product Downloads
Specifications
Configuration
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Material Composition
303 Stainless Steel
303 Stainless Steel
Model
6083-1/4JAU
6083-1/4JAU
Needle Size
16
16
Product Type
Nozzle
Nozzle
Design Feature
Has shutoff needle
Has shutoff needle
Inlet Connection Type
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Threaded (Female NPT) @ Air Line, Threaded (Female NPT) @ Liquid Line
Standard Feature
Cap Hex Size
0.875 in
22.2 mm
Height
1.59 in
40 mm
Length
3.88 in
99 mm
Maximum Air Pressure
30 psi
2.1 bar
Maximum Flow
1.2 gpm
4.5 l/min
Maximum Operating Speed
180 cpm
180 cpm
Maximum Pressure
125 psi
8.6 bar
Maximum Temperature
400 °F
204 °C
Spray Tips
Contact Spraying Systems Co.
Contact Spraying Systems Co.
Width
1.5 in
38 mm
