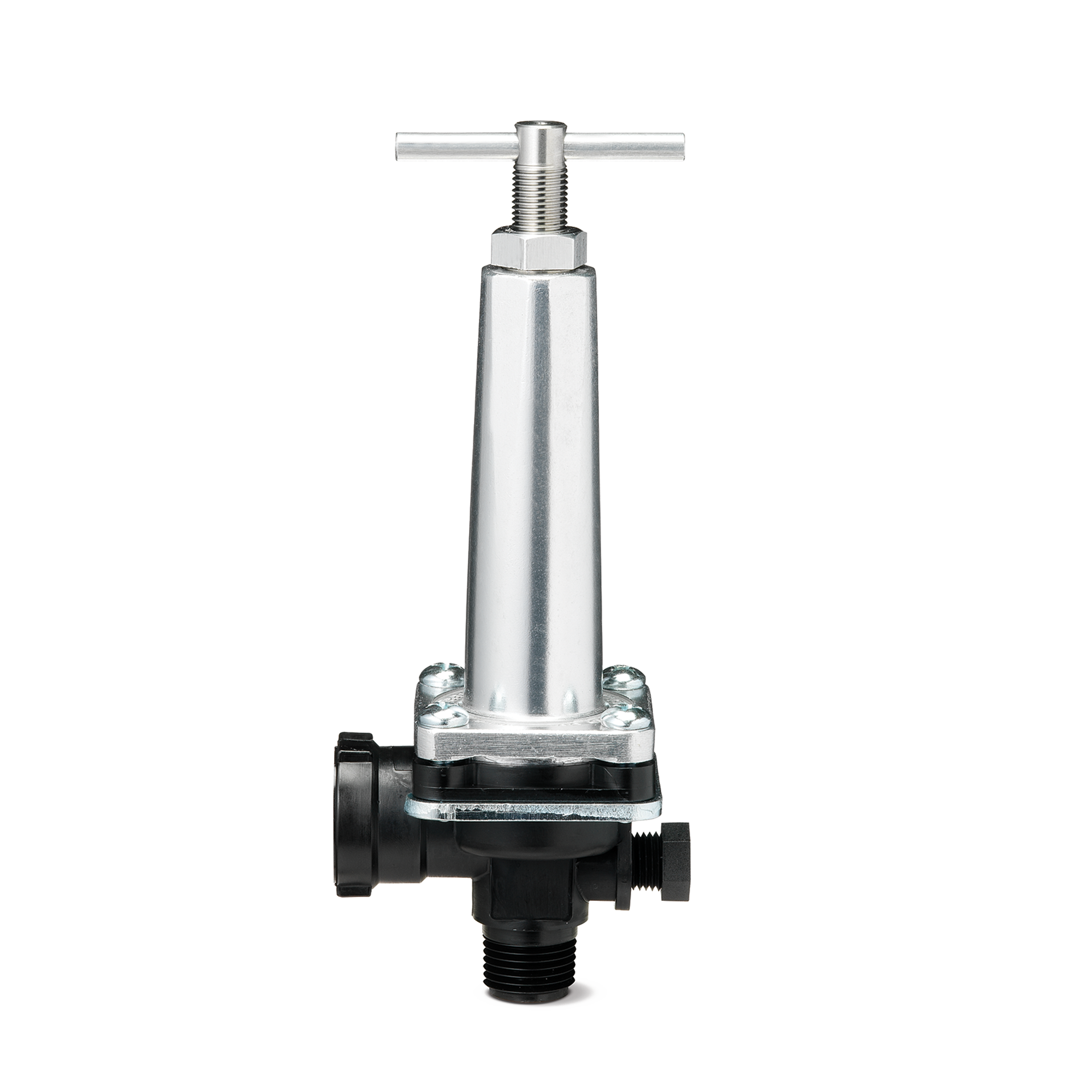

Pressure Relief Valve, 8460-1/2-50
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Inlet Connection Size:1/2 in
Inlet Connection Thread Type:NPT
Operating Pressure Range:0 - 50 psi
General Information
Description
- Pressure relief/regulating valves control line pressure and minimize liquid waste
- Valves return excess liquid back to the liquid source or to pump inlet
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/2 in
1/2 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Material Composition
Aluminum (Housing), Nylon (Body)
Aluminum (Housing), Nylon (Body)
Maximum Pressure
50 psi
3.5 bar
Minimum Pressure
0 psi
0 bar
Outlet Connection Gender
Female
Female
Outlet Connection Size
1/2 in
1/2 in
Outlet Connection Thread Type
NPT
NPT
Outlet Connection Type
Threaded (Female NPT)
Threaded (Female NPT)
Product Type
Valve
Valve
Product Downloads
Other
There was an error downloading your file
There was an error downloading your file
There was an error downloading your file
Specifications
Configuration
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/2 in
1/2 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Material Composition
Aluminum (Housing), Nylon (Body)
Aluminum (Housing), Nylon (Body)
Model
8460
8460
Outlet Connection Gender
Female
Female
Outlet Connection Size
1/2 in
1/2 in
Outlet Connection Thread Type
NPT
NPT
Outlet Connection Type
Threaded (Female NPT)
Threaded (Female NPT)
Product Type
Valve
Valve
Performance
Operating Pressure Range
0 - 50 psi
0 - 3.5 bar
Standard Feature
A Dimension
1.218 in
30.937 mm
B Dimension
1.624 in
41.25 mm
Length At Maximum Opening Height
8 in
203.2 mm
Maximum Pressure
50 psi
3.5 bar
Minimum Pressure
0 psi
0 bar
