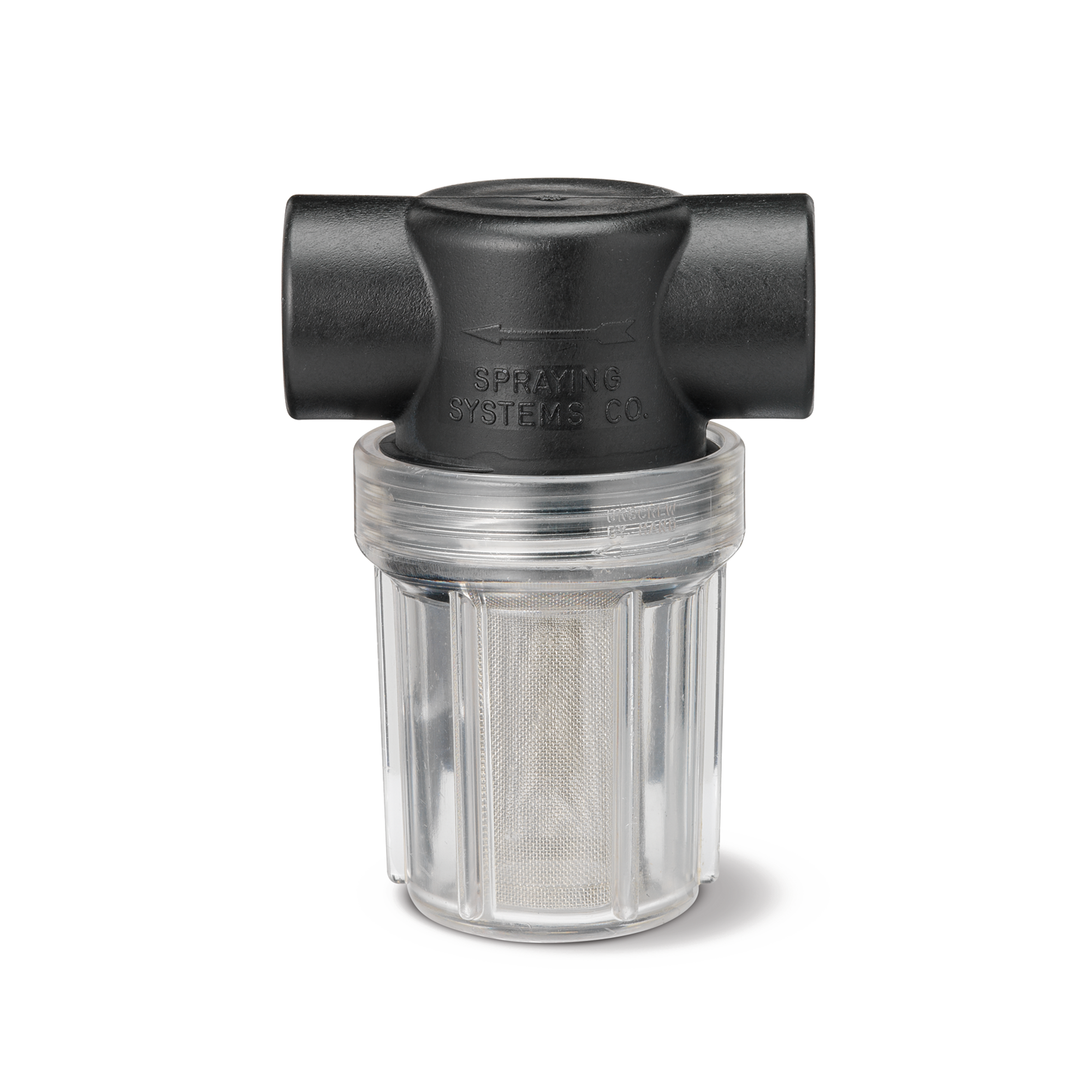

Strainer, Polypropylene, AAB122-1/2-PP-50
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Inlet Connection Thread Type:BSPT
Material Composition:Polypropylene
Mesh Opening:0.011 in
General Information
Description
- Liquid strainers protect nozzles, valves and pumps from damaging debris and minimize clogging
- Wire mesh options ensure screening of particulate as small as 63 microns
- Many T-style strainers feature a removable bottom cap or plug for complete withdrawal of the screen assembly during cleaning.
- On some models, the bottom pipe plug can be replaced with a drain cock for quick-flush cleaning. Models with a clear nylon bowl allow easy visual inspection of the internal screen.
- Self-clean designs allow filtered liquid to pass through, while liquid particles are returned back to the liquid supply through a return outlet.
Specification Summary
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/2 in
1/2 in
Inlet Connection Thread Type
BSPT
BSPT
Inlet Connection Type
Threaded (Female BSPT)
Threaded (Female BSPT)
Material Composition
Polypropylene
Polypropylene
Maximum Pressure
150 psi
10 bar
Maximum Temperature
100 °F
38 °C
Outlet Connection Gender
Female
Female
Outlet Connection Size
1/2 in
1/2 in
Outlet Connection Thread Type
BSPT
BSPT
Product Type
Strainer
Strainer
Product Downloads
Specifications
Configuration
Inlet Connection Gender
Female
Female
Inlet Connection Size
1/2 in
1/2 in
Inlet Connection Thread Type
BSPT
BSPT
Inlet Connection Type
Threaded (Female BSPT)
Threaded (Female BSPT)
Material Code
PP
PP
Material Composition
Polypropylene
Polypropylene
Mesh Size
50
50
Model
AA122
AA122
Outlet Connection Gender
Female
Female
Outlet Connection Size
1/2 in
1/2 in
Outlet Connection Thread Type
BSPT
BSPT
Product Type
Strainer
Strainer
Standard Feature
B Dimension
3.63 in
92.075 mm
Maximum Pressure
150 psi
10 bar
Maximum Temperature
100 °F
38 °C
Mesh Opening
0.011 in
279 µm
Weight
3.4 oz
0.1 kg
