Automatic Electrically-Actuated Air Atomizing Nozzle, AAB29JAUCO-1/4

Name: Automatic Electrically-Actuated Air Atomizing Nozzle
SKU: AAB29JAUCO-1/4

Model:

Images are representative.

Product Configuration

Inlet Connection Thread Type:BSPT

Compare

General Information

Description

Flow rates up to 0.75 gpm (2.84 lpm)
Rear air and liquid inlets to minimize nozzle profile
Additional side liquid inlet available for liquid recirculation
Stainless steel, PTFE and PPS construction with Viton seals
Clean-out needle standard for all fluid cap sizes
For use with standard 1/4J air caps and threadless 1/4J fluid caps (maximum size 80100)

Specification Summary

Inlet Connection Gender

Female

Inlet Connection Thread Type

BSPT

Material Composition

Stainless Steel, PTFE and PPS construction with Viton seals

Maximum Flow

0.75 gpm

Maximum Operating Speed

1,000 cpm

Maximum Pressure

60 psi

Maximum Temperature

150 °F

Product Type

Nozzle

Voltage

24 V

Inlet Connection Size

1/4 in @ Air Line, 1/4 in @ Liquid Line

Inlet Connection Type

Threaded (Female BSPT) @ Air Line, Threaded (Female BSPT) @ Liquid Line

Product Downloads

Documents

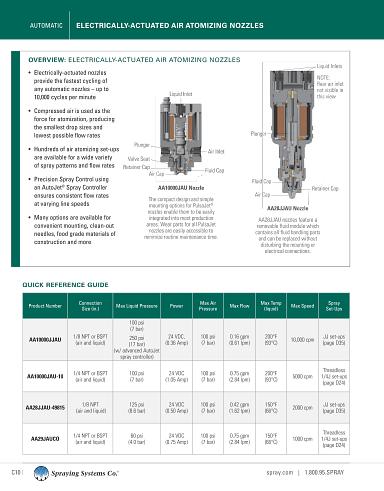

Catalog DetailCatalog76A-AA US Automatic Nozzles Electrically-Actuated Air-Atomizing

Product BulletinB685A Lubrication Systems

Other

Specifications

Configuration

Inlet Connection Gender

Female

Inlet Connection Thread Type

BSPT

Material Composition

Stainless Steel, PTFE and PPS construction with Viton seals

Model

AA29JAUCO

Product Type

Nozzle

Design Feature

Has cleanout needle

Inlet Connection Size

1/4 in @ Air Line, 1/4 in @ Liquid Line

Inlet Connection Type

Threaded (Female BSPT) @ Air Line, Threaded (Female BSPT) @ Liquid Line

Standard Feature

Amperage

0.75 A

Cap Hex Size

0.875 in

Height

1.88 in

Length

3.5 in

Maximum Air Pressure

102 psi
