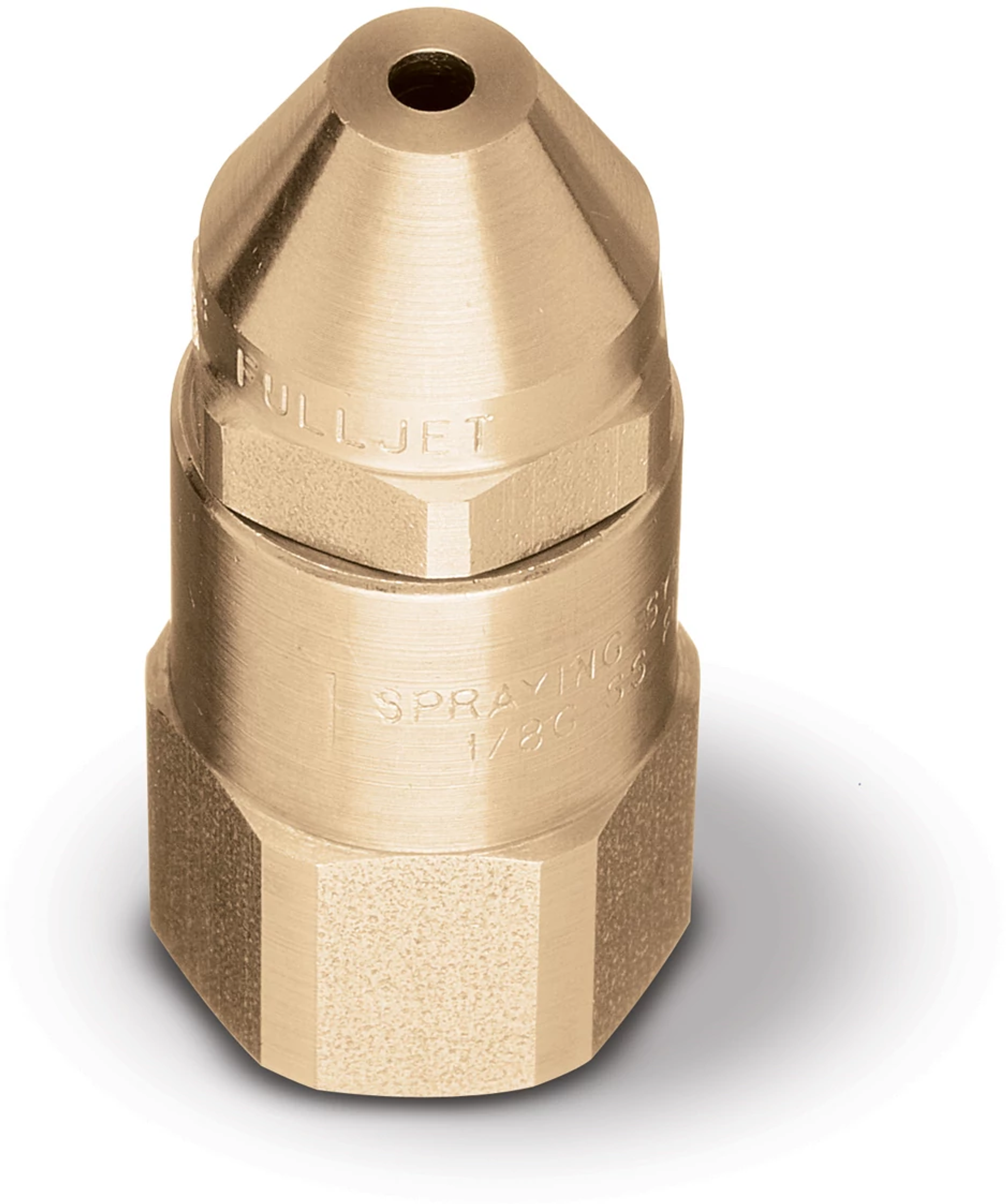

FullJet® Nozzle, Brass, B3/8G-1550

Product Configuration

Inlet Connection Thread Type:BSPT
Inlet Connection Type:Threaded (Female BSPT)
Material Composition:Brass

General Information

Description

  • Solid cone-shaped spray pattern with round impact area
  • Unique vane design minimizes turbulence of the fluid to ensure uniform spray distribution and consistent spray coverage
  • Large unobstructed flow passages minimize clogging and increase throughput
  • Removable caps and vanes in most models make maintenance fast and easy
  • Standard, wide and narrow spray angles

Flow

The liquid enters the nozzle and proceeds through the vane. The vane causes the liquid to swirl. The design of the nozzle ensures the liquid continues to swirl as it enters the orifice. The liquid breaks up as it exits the nozzle orifice forming a well defined cone pattern. The drops are uniform in size and distributed equally throughout the spray pattern.

Specification Summary

Inlet Connection Gender
Female
Inlet Connection Size
3/8 in
Inlet Connection Thread Type
BSPT
Inlet Connection Type
Threaded (Female BSPT)
Liquid Flow Rate Range
2.5 - 13.7 gpm
Liquid Pressure Range
10 - 300 psi
Relative Drop Size Range
1,000 - 5,000 µm
Spray Pattern
Full Cone
Product Type
Nozzle

Product Downloads

Documents

Other

Product Performance

Liquid Flow Rate

Spray Angle

Specifications

Configuration

Capacity Size
1550
Inlet Connection Gender
Female
Inlet Connection Size
3/8 in
Inlet Connection Thread Type
BSPT
Inlet Connection Type
Threaded (Female BSPT)
Liquid Flow Rate at Rated Pressure
5 gpm
Material Composition
Brass
Model
G-15
Spray Angle at Rated Pressure
15°
Product Type
Nozzle
Design Feature
Has guide vane, Removable cap and vane

Drop Sizes

Relative Drop Size Group
1,000 - 5,000 µm (Heavy Rain)

Performance

Spray Angle Range
13 - 15°
Spray Angle
13° @ 10 psi, 14° @ 15 psi, 15° @ 40 psi, 15° @ 100 psi

Product Category

Brand
FullJet®
Spray Angle Catalog Code
Narrow

Standard Feature

Body Hex Size
13/16 in
Equivalent Orifice Diameter
0.172 in
Length
1-7/8 in
Liquid Flow Rate Range
2.5 - 13.7 gpm
Liquid Pressure Range
10 - 300 psi
Rated Pressure
40 psi
Relative Drop Size Range
1,000 - 5,000 µm
Spray Pattern
Full Cone
Weight
3 oz
