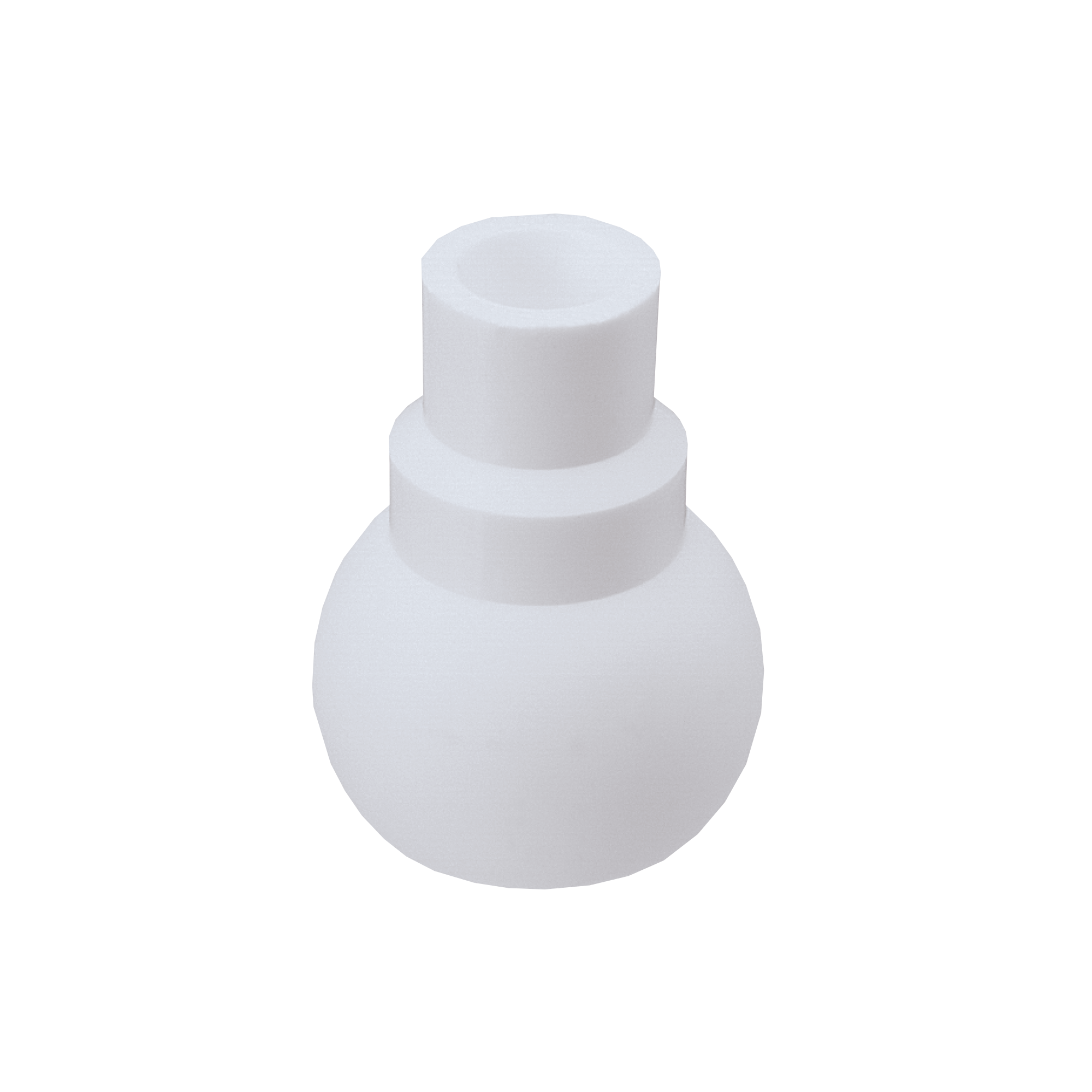

Clip-Eyelet® Hollow Cone Spray Tip, Polypropylene, CA15-30.1-PP
Images are representative.
Images are representative. Products may differ in material or configuration.
General Information
Description
- Hollow cone ball-type spray tips allow the spray pattern to be directed precisely at the surfaces being sprayed
- No tools required for spray tip installation or replacement
- Chemically-resistant polypropylene material
Specification Summary
Material Composition
Polypropylene
Polypropylene
Product Type
Tip
Tip
Product Downloads
Product Performance
Liquid Flow Rate
Spray Angle
Specifications
Configuration
Capacity Size
15-30.1
15-30.1
Liquid Flow Rate at Rated Pressure
4.5 gpm
17 l/min
Material Code
PP
PP
Material Composition
Polypropylene
Polypropylene
Product Type
Tip
Tip
Performance
Spray Angle
46° @ 7 psi, 49° @ 20 psi, 51° @ 60 psi
46° @ 0.48 bar, 49° @ 1.38 bar, 51° @ 4.14 bar
Product Category
Spray Angle Catalog Code
Standard
Standard
Standard Feature
Color
White
White
Rated Pressure
40 psi
2.76 bar
Spray Pattern
Hollow Cone
Hollow Cone
