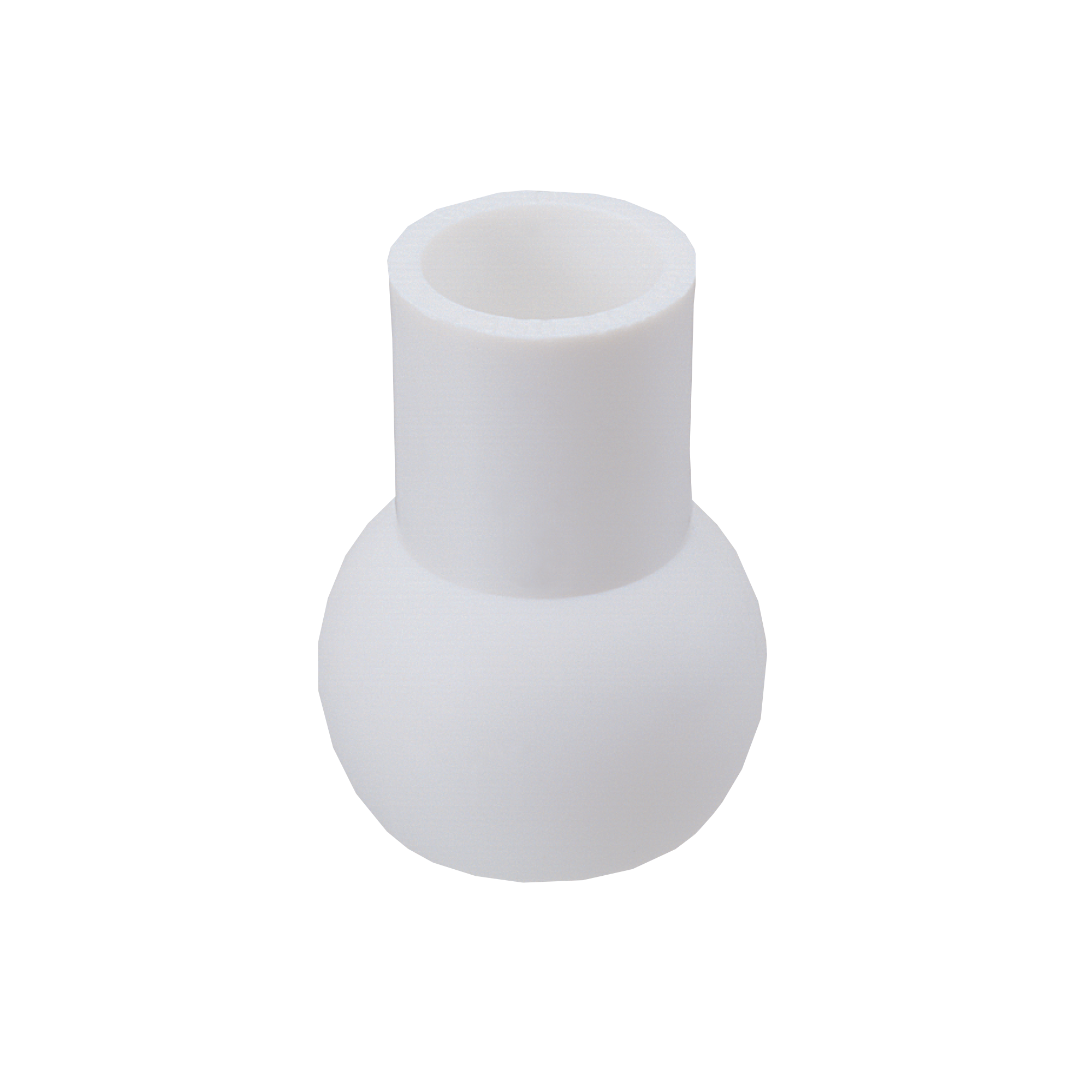

Clip-Eyelet® Hollow Cone Spray Tip, Polypropylene, CA50-50.3-PP

Model:

General Information

Description

  • Hollow cone ball-type spray tips allow the spray pattern to be directed precisely at the surfaces being sprayed
  • No tools required for spray tip installation or replacement
  • Chemically-resistant polypropylene material

Specification Summary

Material Composition
Polypropylene
Product Type
Tip

Product Downloads

Documents

Product Performance

Liquid Flow Rate

Spray Angle

Specifications

Configuration

Capacity Size
50-50.3
Liquid Flow Rate at Rated Pressure
9.8 gpm
Material Code
PP
Material Composition
Polypropylene
Product Type
Tip

Performance

Spray Angle
75° @ 7 psi, 75° @ 20 psi, 76° @ 60 psi

Product Category

Spray Angle Catalog Code
Standard

Standard Feature

Color
White
Rated Pressure
40 psi
Spray Pattern
Hollow Cone
