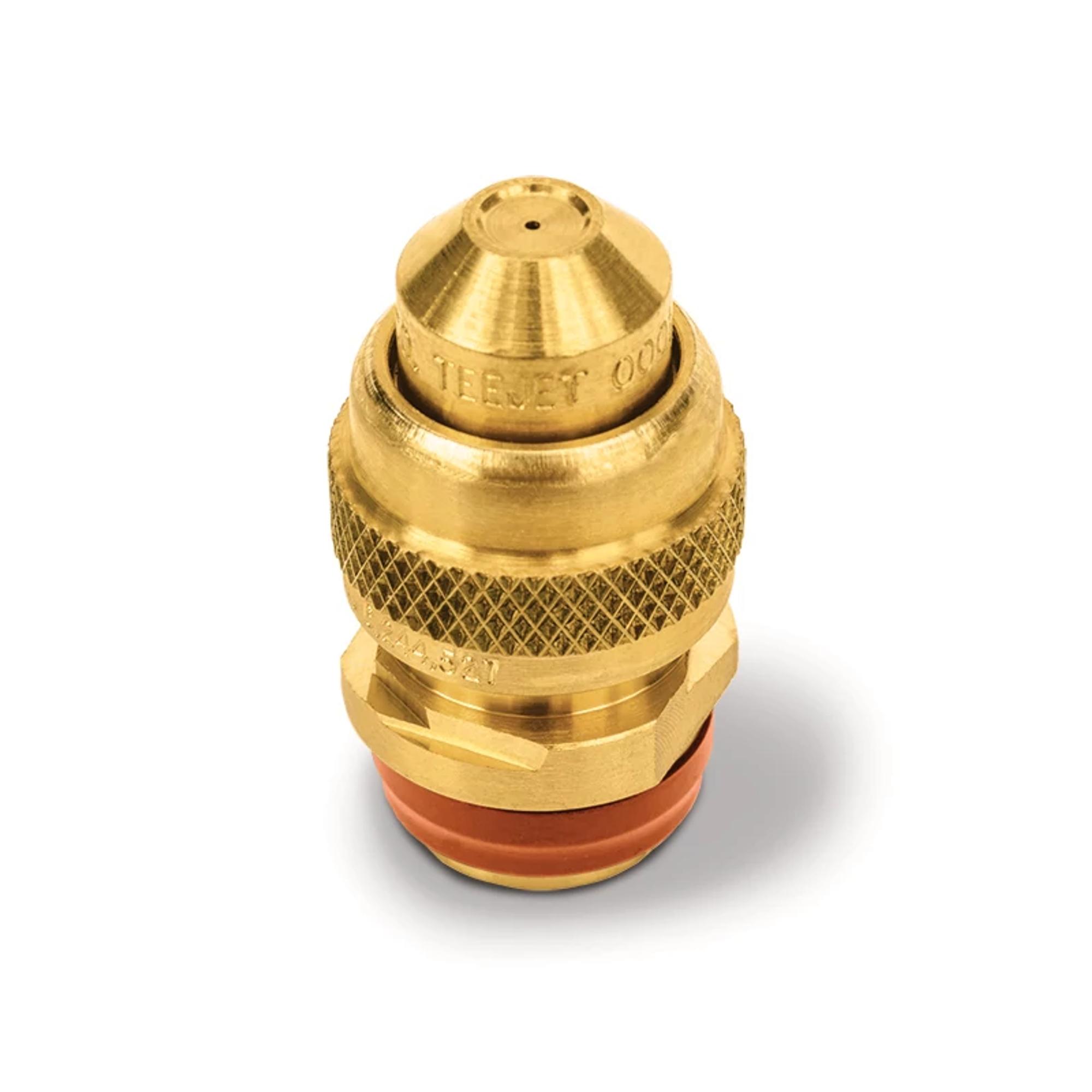

Quick VeeJet® Nozzle, Brass, QVVA-000050

• Ideal for high-maintenance operations – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips in seconds
• Automatic alignment feature saves time
• Miniature versions are ideal when smaller physical size and lower weight are important
• Flat fan type, tapered edge spray pattern
• Spray angles from 0° to 110°
• Uniform spray distribution with flow rates from .035 to 68 gpm (.14 to 255 lpm)
• Operating pressures up to 300 psi (20 bar)
• Choice of metal or ProMax. ProMax features:
• ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 150 psi (10 bar)
• Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
• Optional external O-ring protects nozzle from contaminants
• Tips are color-coded for easy flow rate identification

As the liquid exits through the sharp V shape cut of the orifice, it forms into a flat spray pattern. The distribution is tapered from the center of the spray.
