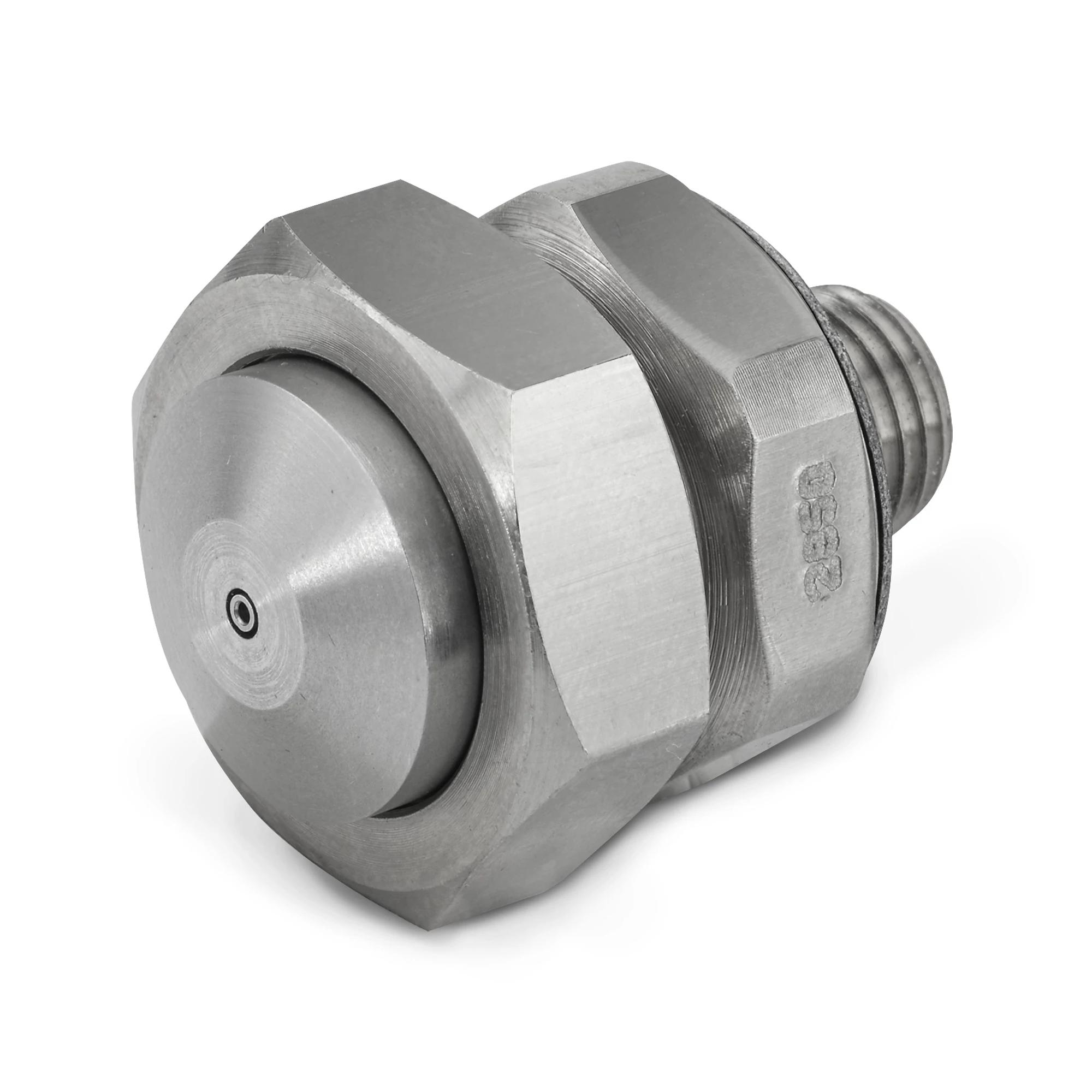

Air Atomizing Setup, SU2-SS
Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Material Composition:303 Stainless Steel
General Information
Description
Air Atomizing Setup
Specification Summary
Liquid Flow Rate Range
0.28 - 1.57 gph
1.06 - 5.94 l/h
Material Composition
303 Stainless Steel
303 Stainless Steel
Spray Pattern
Round Spray
Round Spray
Product Type
Set-up
Set-up
Product Downloads
Product Performance
Liquid Flow Rate
for 6 in (Gravity Head)
for 12 in (Gravity Head)
for 18 in (Gravity Head)
for 4 in (Siphon Height)
for 8 in (Siphon Height)
for 12 in (Siphon Height)
for 24 in (Siphon Height)
for 36 in (Siphon Height)
Specifications
Configuration
Air Cap Component
PA70-SS
PA70-SS
Fluid Cap Component
PF2850-SS
PF2850-SS
Material Composition
303 Stainless Steel
303 Stainless Steel
Model
1/4J Air Atomizing Setups
1/4J Air Atomizing Setups
Setup Mix Type
External Mix
External Mix
Setup Type
Siphon/Gravity Spray Product
Siphon/Gravity Spray Product
Product Type
Set-up
Set-up
Performance
Spray Angle Range
21 - 22°
21 - 22°
Sales Part Numbers
Air Cap Part Number
PA70-SS
PA70-SS
Fluid Cap Part Number
PF2850-SS
PF2850-SS
Standard Feature
Compatible Needle Size
28
28
Liquid Flow Rate Range
0.28 - 1.57 gph
1.06 - 5.94 l/h
Spray Pattern
Round Spray
Round Spray
