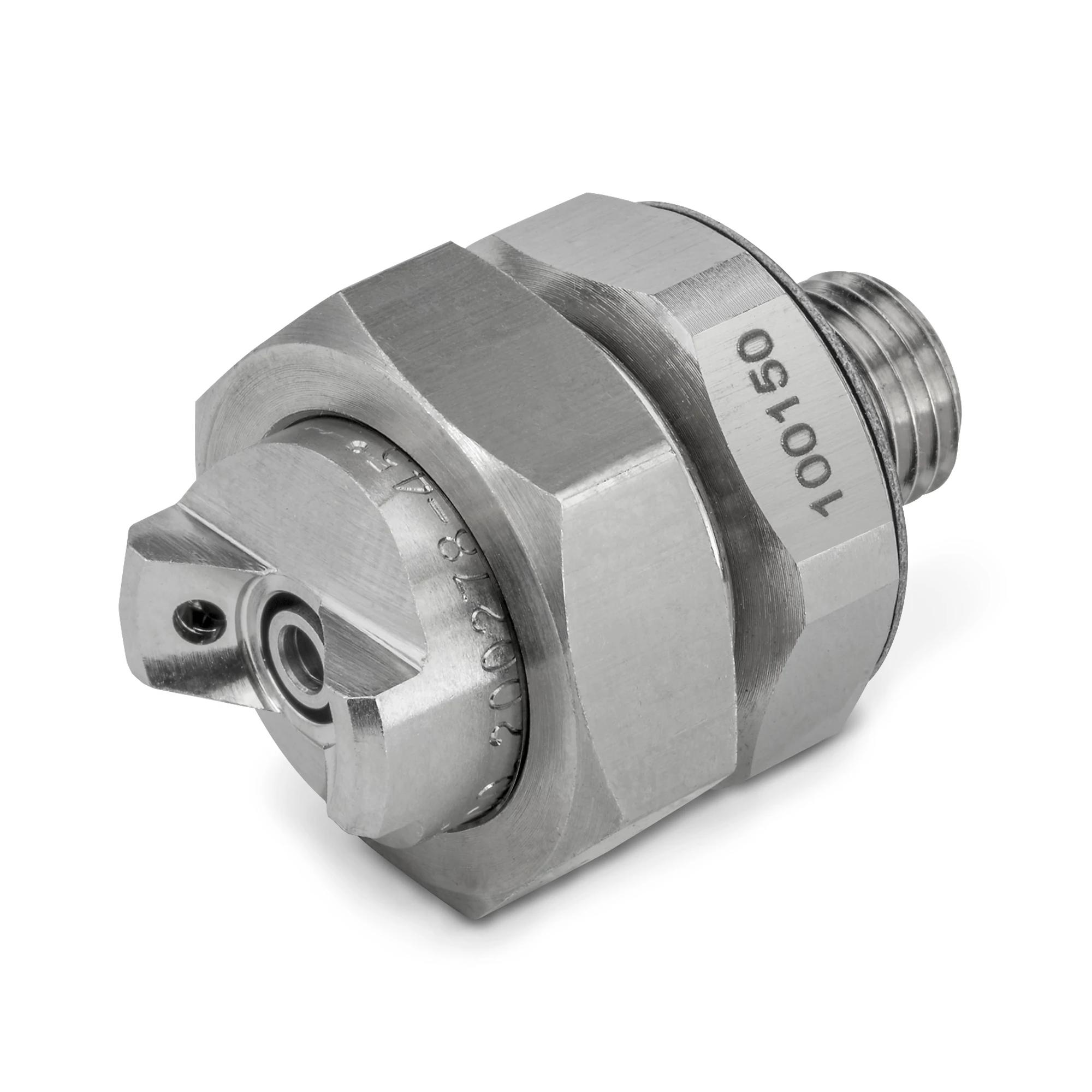

Air Atomizing Setup, SUE45-SS

Model:

Images are representative.

Product Configuration

Material Composition:303 Stainless Steel

General Information

Description

Air Atomizing Setup

Specification Summary

Liquid Flow Rate Range
27.9 - 72 gph
Material Composition
303 Stainless Steel
Spray Pattern
Flat Spray
Product Type
Set-up

Product Downloads

Documents

CC76B-AA-AUTO US Set-Ups SUE15B SUE18B SUE15A SUE18A SUE15 SUE18 SUE25B SUE28B SUE25A SUE28A SUE28 SUE25 SUE45B SUE45A SUE45
Catalog DetailCC76B-AA-AUTO US Set-Ups SUE15B SUE18B SUE15A SUE18A SUE15 SUE18 SUE25B SUE28B SUE25A SUE28A SUE28 SUE25 SUE45B SUE45A SUE45

Product Performance

Liquid Flow Rate

for 3 psi (Liquid Pressure)
for 5 psi (Liquid Pressure)
for 10 psi (Liquid Pressure)
for 20 psi (Liquid Pressure)

Specifications

Configuration

Air Cap Component
PA200278-45-SS
Fluid Cap Component
PF100150-SS
Material Composition
303 Stainless Steel
Model
1/4J Air Atomizing Setups
Setup Mix Type
External Mix
Setup Type
Pressure Spray Product
Product Type
Set-up

Sales Part Numbers

Air Cap Part Number
PA200278-45-SS
Fluid Cap Part Number
PF100150-SS

Standard Feature

Compatible Needle Size
100
Liquid Flow Rate Range
27.9 - 72 gph
Spray Pattern
Flat Spray
