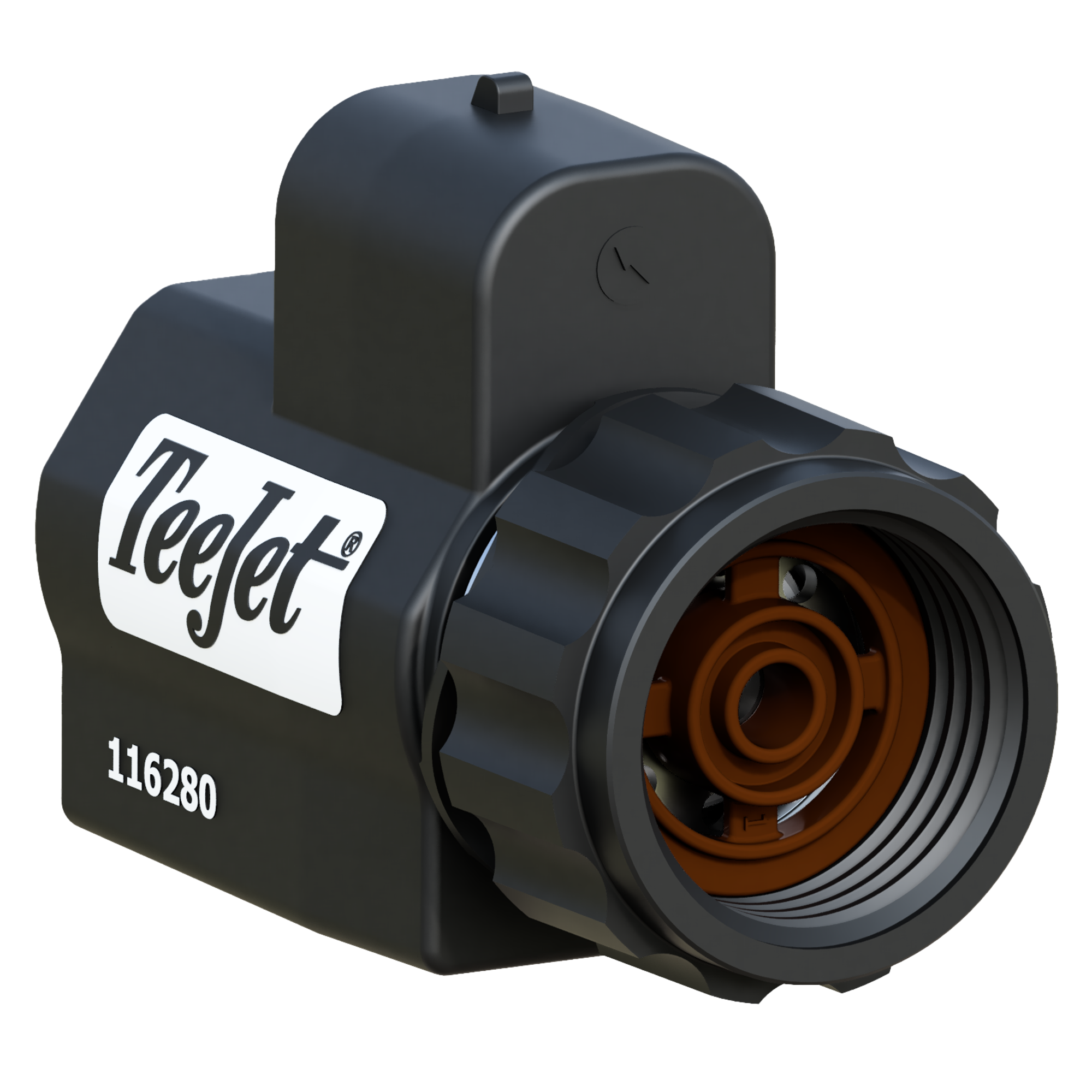

DynaJet® HF Valve, 116280

Images are representative.

General Information

Description

  • Designed for PWM applications requiring higher flow rates.
  • Maximum rated pressure: 100 PSI (12V or 24V).
  • Flow of 0.9 GPM at 5 PSI pressure drop.
  • Flow of 1.3 GPM at 10 PSI pressure drop.
  • Offered in 12-or 24-Volt DC version.
  • Maximum current draw of 1.17 AMPS (14 Watts) at 12 Volts.
  • Stainless steel/FKM wetted parts.
  • Available to fit most TeeJet nozzle bodies with Diaphragm Check Valves.
  • Universal gasket to fit all Quick TeeJet® bodies.
  • No need for specific nozzle body valve models.
