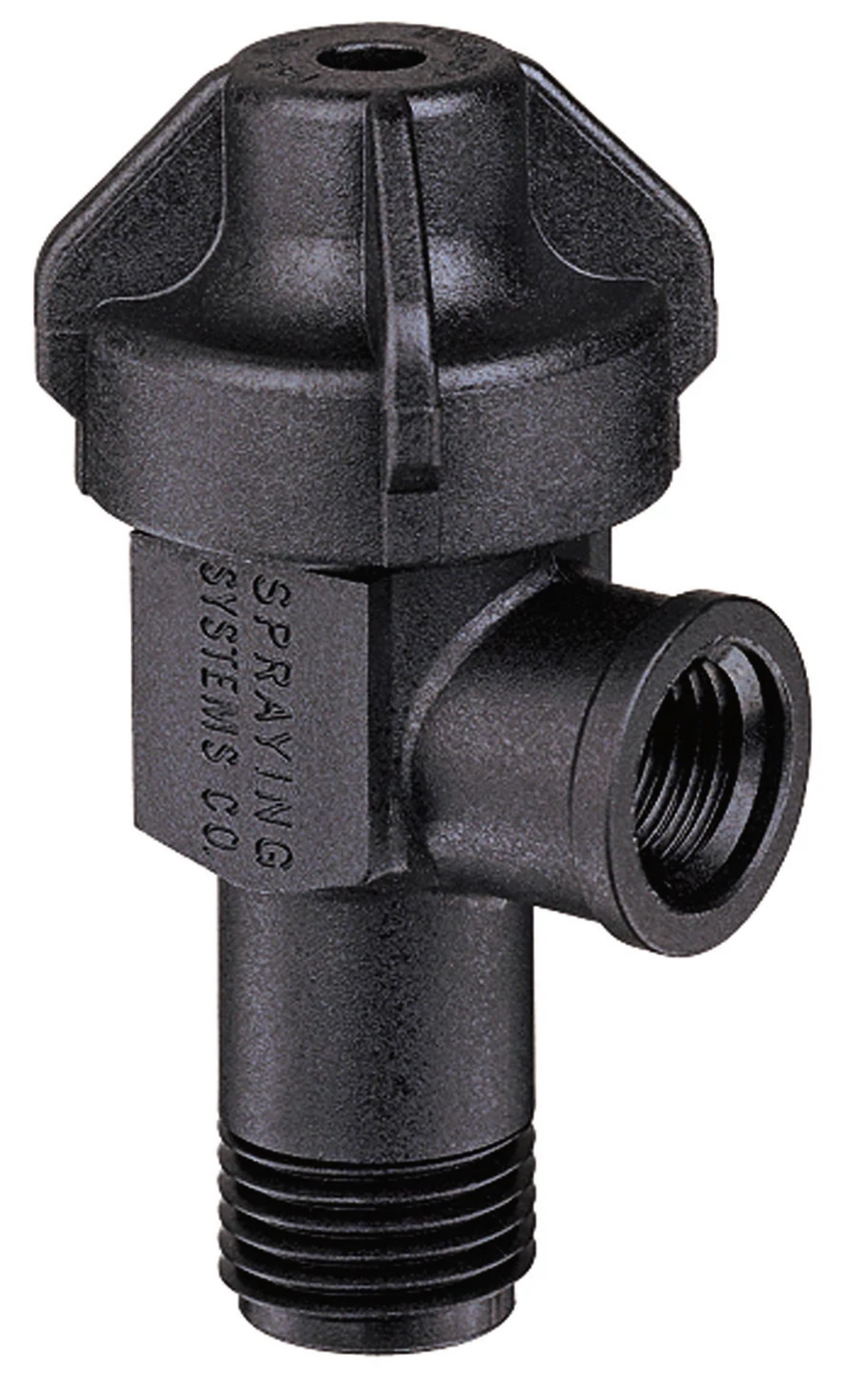

Made of Nylon with Nylon/polypropylene end cap assembly. Check valve opens at 10 PSI pressure. Choice of 1/8" or 1/4" NPT (F) inlet connections. Flow rate for 1/8" is 3 GPM at 5 PSI pressure drop. Flow rate for 1/4" is 3.9 GPM at 5 PSI pressure drop. Overall length 23/4"

Chemsaver® Diaphragm Check Valve

Chemsaver® Diaphragm Check Valve, 8355-NYB

Model Specifications
