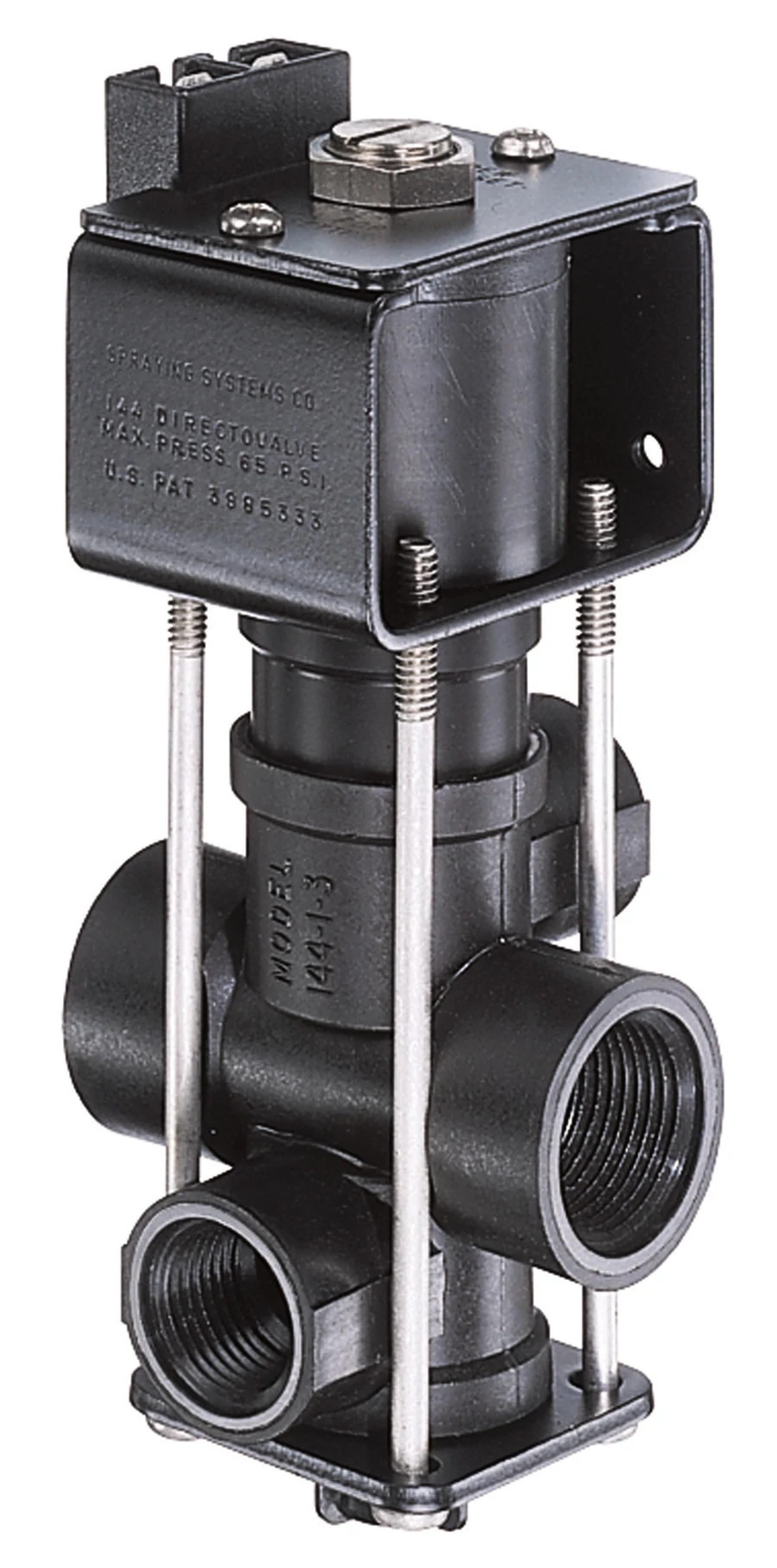

AA144A-1-3 Electrically Operated Solenoid Valves, AA144A-1-3

The three-way solenoid-operated DirectoValve® control valve bypasses boom flow to maintain constant spraying pressure when one or more boom sections are shut off. To maintain pressure with a 23520 Throttling Valve, Outlet 2 must be throttled to match the total capacity of the nozzles on that boom section.

• For pressures to 65 PSI.
• Flow Rate: 8 GPM at 5 PSI pressure drop, 11 GPM at 10 PSI pressure drop.

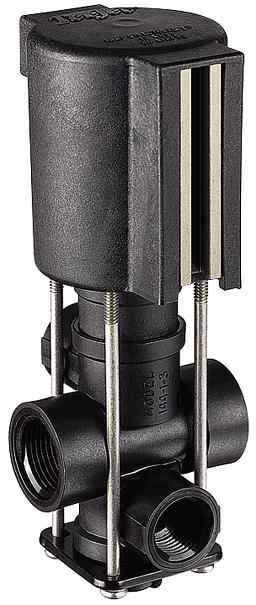

• 2.5 AMP current draw. The 144P-1-3 three-way solenoidoperated DirectoValve® control valve was specifically designed to provide bypass control in spraying applications. When used with part number 23520-PP throttling valve or a 4916 metering orifice plate in the bypass line, it can provide for a constant pressure spray system.
• For pressure to 65 PSI .
• Flow Rate: 8 GPM at 5 PSI pressure drop, 11 GPM at 10 PSI pressure drop.
• Fabric-reinforced FKM diaphragms.
• Nylon encapsulated 12 VDC coil with 1/4" Quick Connect terminals.
• Power requirement 2.5 AMP.
• Glass-filled polypropylene (black) valve body.
• Internal metal parts are stainless steel.
• No stroke adjustment needed.
• Corrosion resistant, 430SS solenoid grade armature and armature stop.
• Encapsulated 12 VDC coil can be easily changed without removing valve from line.
• Polypropylene body for chemical resistance.
• Stainless steel internal metal parts.
• Chemical resistant EPDM diaphragms and seat washers.
