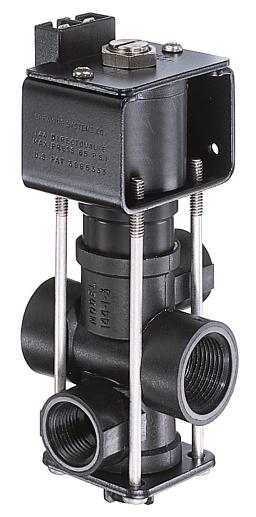

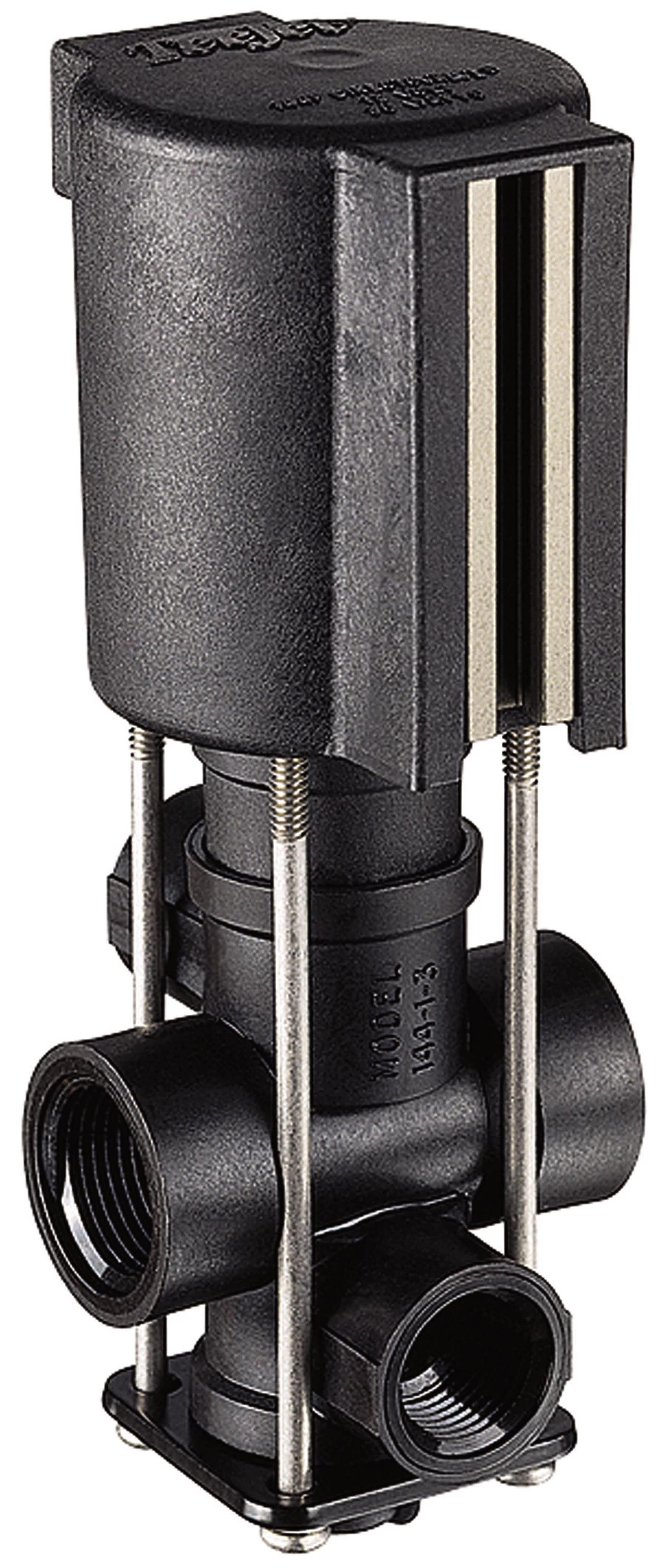

AA144P-1-3 Electrically Operated Solenoid Valves, AA144P-1-3

The 144P-1-3 three-way solenoidoperated DirectoValve® control valve was specifically designed to provide bypass control in spraying applications. When used with part number 23520-PP throttling valve or a 4916 metering orifice plate in the bypass line, it can provide for a constant pressure spray system.

• For pressure to 65 PSI .
• Flow Rate: 8 GPM at 5 PSI pressure drop, 11 GPM at 10 PSI pressure drop.
• Fabric-reinforced FKM diaphragms.
• Nylon encapsulated 12 VDC coil with 1/4" Quick Connect terminals.
• Power requirement 2.5 AMP.
• Glass-filled polypropylene (black) valve body.
• Internal metal parts are stainless steel.
• No stroke adjustment needed.
• Corrosion resistant, 430SS solenoid grade armature and armature stop
