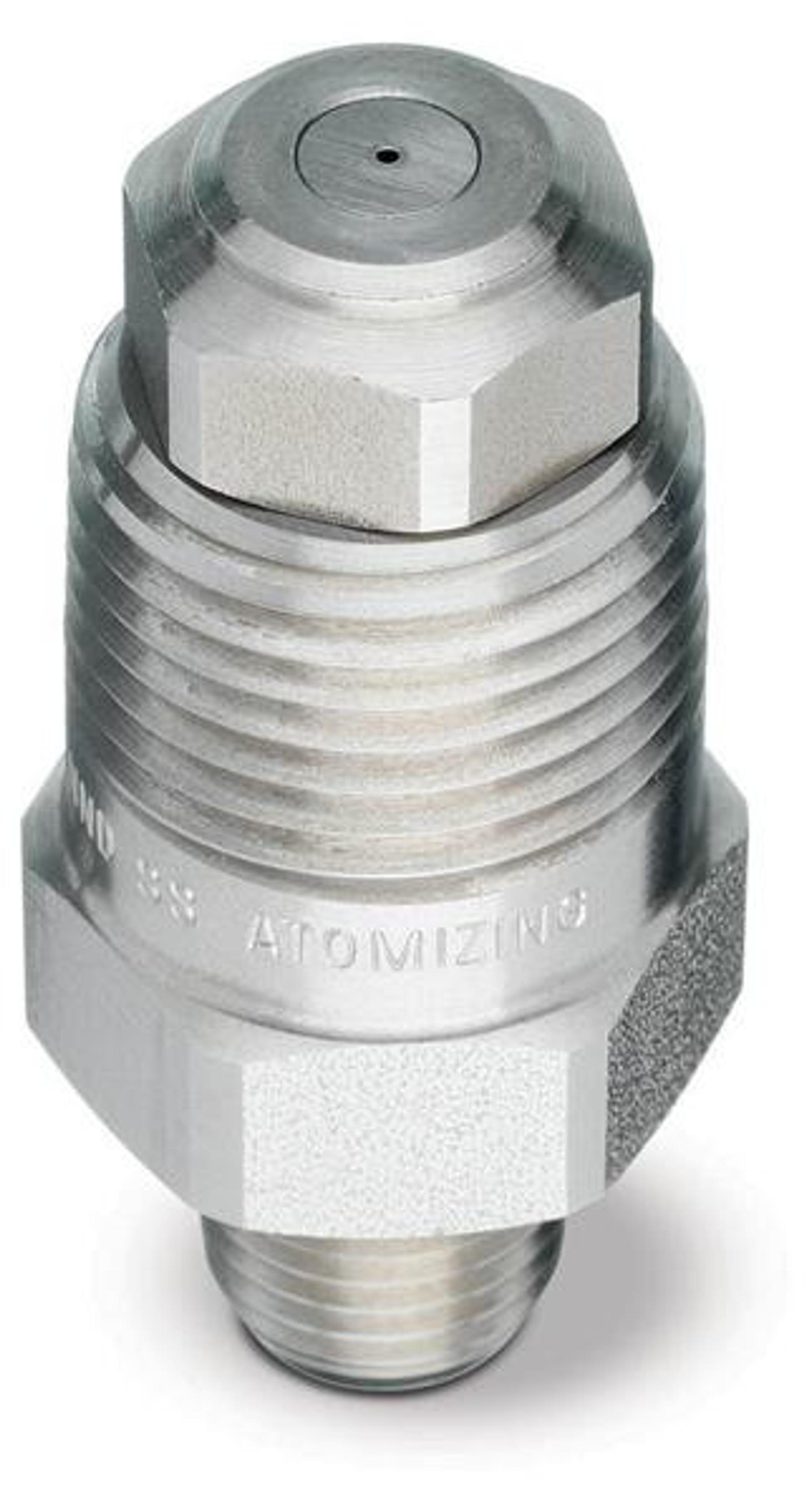

Hydraulic Fine Spray Nozzles - Integral Strainer - Wall Mount, LND, LNND
Model
LND, LNND
Hydraulic Fine Spray Nozzles - Integral Strainer - Wall Mount
Model Specifications
Product TypeNozzle
Relative Drop Size Range10 - 500 µm
Spray PatternFine Spray
Model Configurator
Step 1 of 6
What material should it be made of?
Spray nozzles are manufactured from a wide variety of materials that have been determined to meet the usual requirements of the applications most commonly associated with that type of nozzle. Standard materials include brass, steel, various stainless steels, hardened stainless steels, many plastics and various carbides. Spray nozzles can also be supplied in other materials upon special request. Materials of construction affect nozzle wear life and resistance to corrosion and abrasion.
For more information on nozzle materials, download our technical reference document or contact your local Spraying Systems Co. sales rep.
Finding matching products…
General Information
Description
- Finely atomized, hollow cone spray without compressed air
- Very small drops often achieving misting performance
- Ideal for use in dust control and humidification applications
- Wall-mount options for installation on room walls, vessel bulkheads or pipeline
- Orifice inserts, cores and strainers are easily removed for inspection or cleaning
- Most models can be supplied with an internal strainer
- Spray angles: Standard – 43° to 94°, Wide – 112° to 120°
- Uniform spray distribution from .82 to 130 gph (3.1 to 492 lph)
- Operating pressures from 20 to 1000 psi (1.5 to 69 bar)
Specification Summary
Relative Drop Size Range
10 - 500 µm
Spray Pattern
Fine Spray
Product Type
Nozzle
