* Excellent for application of liquid fertilizer on bare ground or in standing crop.

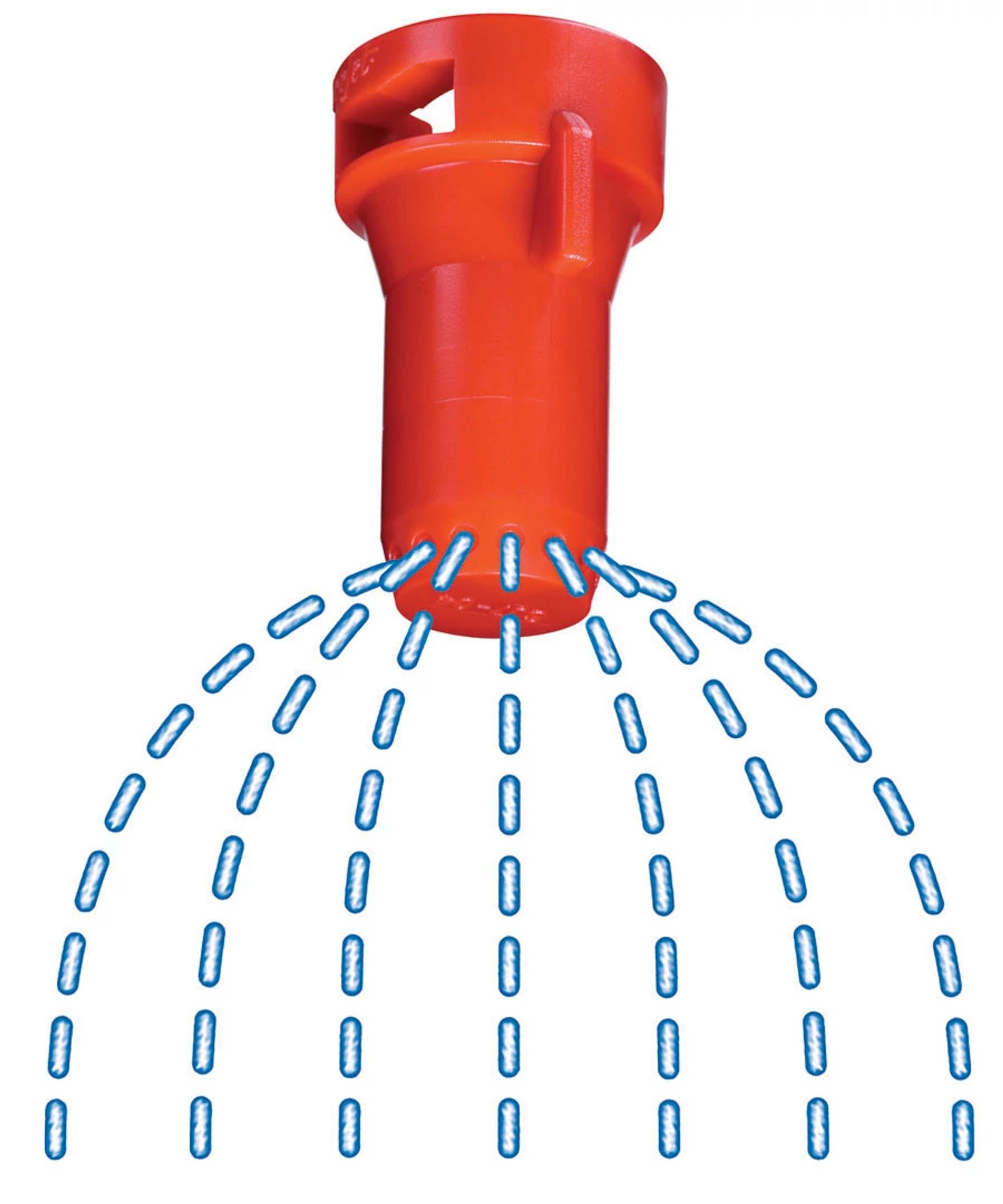

* Seven-stream pattern is ideal for broadcast application.
* Creates seven identical fluid streams of equal velocity and capacity.
* Excellent spray distribution quality.
* Removable metering orifice for easy cleaning.
* Offered in a variety of sizes for a wide range of application rates.
* VisiFlo® color-coding for easy capacity identification.
* All acetal construction for excellent chemical resistance.
* Solid stream pattern minimizes leaf burn and virtually eliminates drift.
* SJ7A spray tip molded into Quick TeeJet® cap.

StreamJet SJ7A Multiple Solid Stream

StreamJet SJ7A Multiple Solid Stream, SJ7A

Model Specifications

General Information

Description

Specification Summary

Alternative Models
