HP Nozzle, Single-orifice, HP FogJet® Nozzle, 316LStainlessSteel, 1/4HP-316SS0.75

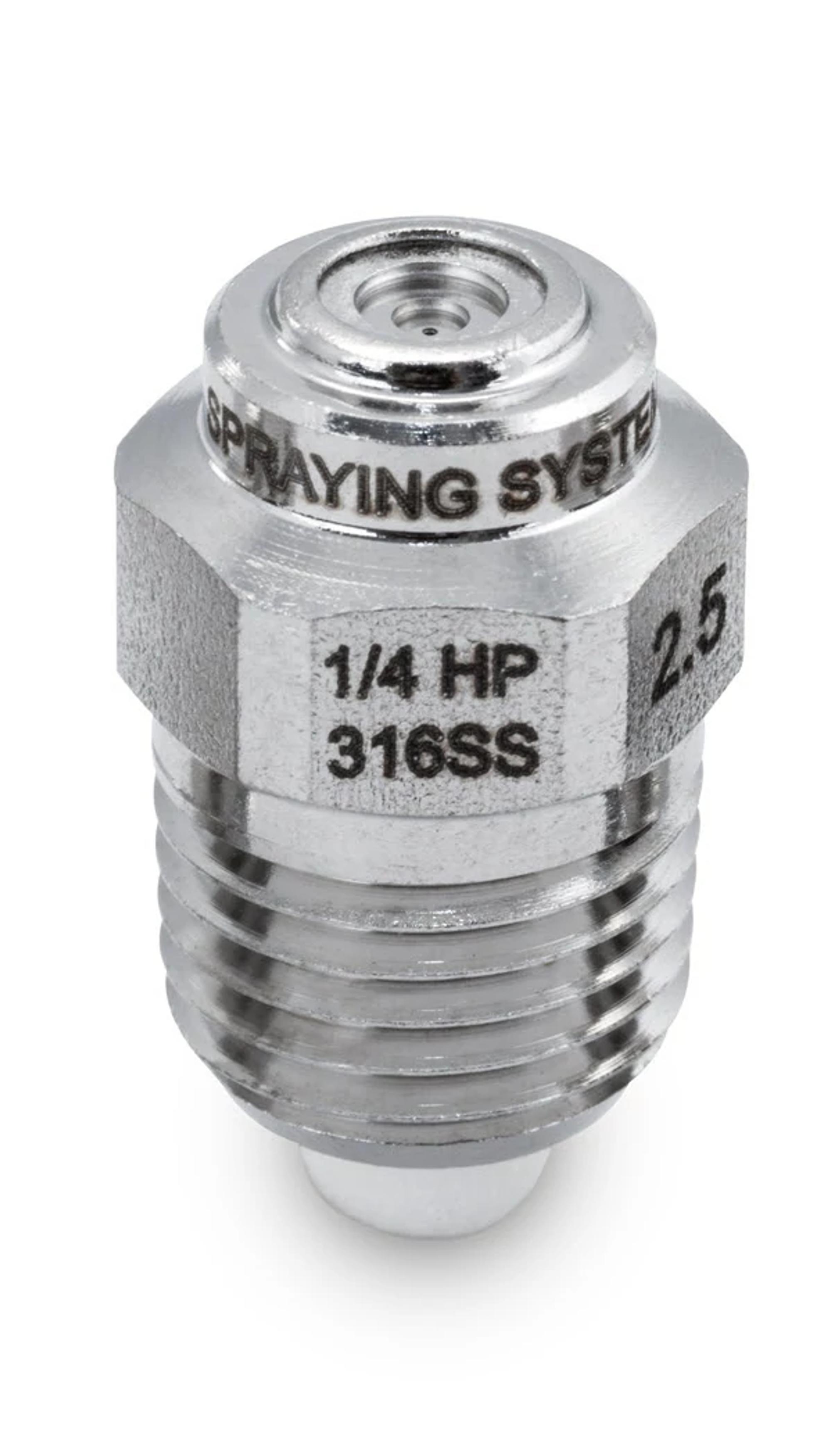

Images are representative.
Images are representative. Products may differ in material or configuration.
Product Configuration
Inlet Connection Thread Type:NPT
Inlet Connection Size:1/4 in
Capacity Size:0.75
General Information
Description
- Streak-free, uniform sprays using high pressure for atomization
- Better performance at lower operating pressures than conventional pressure-swirl and impact-style nozzles
- Longer nozzle life – lower operating pressure and the use of filters minimize erosion and extend service life between maintenance intervals
- Reduced clogging – larger flow passages than impact-style hydraulic nozzles minimize clogging and maintenance downtime
- Increased versatility – smaller than conventional hydraulic nozzles, HP FogJet nozzles are easily integrated in applications where space is limited
- For high capacity applications, HP MultiPoint FogJet nozzles simplify installation and lower costs by having 12, 10 or 8 spray tips on a single body
- Ideal for applications including turbine inlet cooling, humidification, gas cooling/conditioning, evaporative cooling, NOx control, sanitation, moisturizing, livestock cooling, fire suppression, desuperheating and pest control
Specification Summary
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Material Composition
316L stainless steel
316L stainless steel
Maximum Pressure
3,000 psi
207 bar
Product Type
Nozzle
Nozzle
Product Downloads
Product Performance
Liquid Flow Rate
Specifications
Configuration
Capacity Size
0.75
0.75
Inlet Connection Gender
Male
Male
Inlet Connection Size
1/4 in
1/4 in
Inlet Connection Thread Type
NPT
NPT
Inlet Connection Type
Threaded (Male NPT)
Threaded (Male NPT)
Material Composition
316L stainless steel
316L stainless steel
Product Type
Nozzle
Nozzle
Performance
Spray Angle
80° @ 1,000 psi
80° @ 69 bar
Standard Feature
Body Hex Size
9/16 in
9/16 in
Length
0.84 in
21.3 mm
Maximum Pressure
3,000 psi
207 bar
Weight
0.64 oz
18 g
