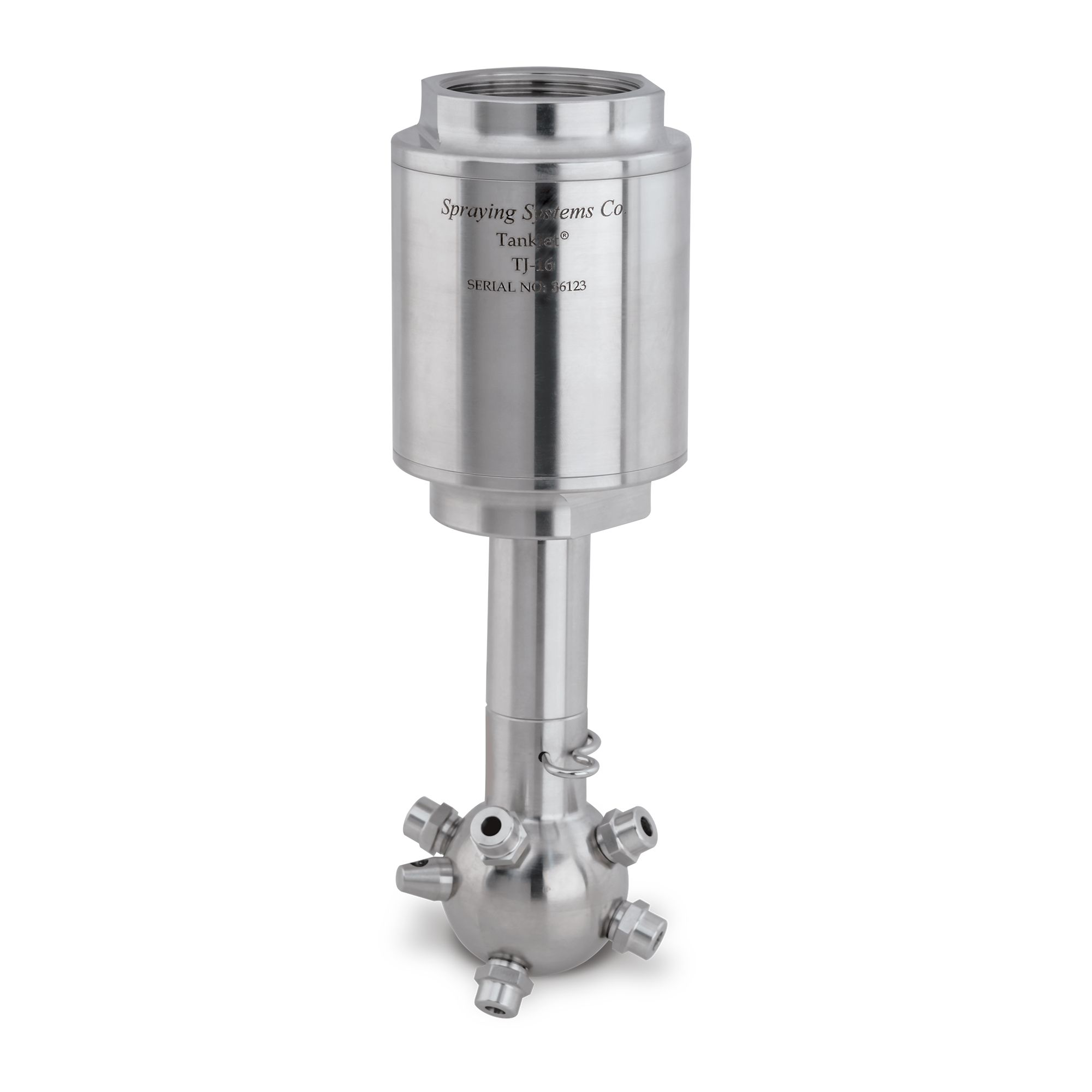

TankJet® Nozzle, Stainless Steel, TJ16-D

Model:

+ 2

Product Configuration

Inlet Connection Type:Threaded (Female NPT)

General Information

Description

These rotating units provide better cleaning than static spray balls. They are ideal for brewery tanks, pharmaceutical tanks, chemical mixers / blenders, totes and IBCs, food processing tanks and wine tanks.

  • Fluid-driven turbine rotates spray head at slow speeds to provide increased dwell time on tank surface compared to free spinning units.
  • Similar in design and appearance to static spray balls, these rotating units ensure full coverage and effective impingement of cleaning solution on tank walls.
  • The TankJet® 16 produces solid stream sprays and easily passes through a 3 in. Schedule 40 pipe.
  • Suitable for clean-in-place (CIP) or portable installation.
  • Spray head is easily removed for inspection and maintenance.

Specification Summary

Impact Group
Medium Impact
Inlet Connection Size
1-1/2 in
Inlet Connection Type
Threaded (Female NPT)
Liquid Flow Rate Range
36 - 76 gpm
Material Composition
316 stainless steel and PTFE
Maximum Recommended Tank Diameter
Up to 24 ft
Maximum Temperature
250 °F
Operating Principle
Fluid-driven Turbine
Product Type
Nozzle
Spray Coverage
270° down

Product Downloads

Documents

Other

Specifications

Configuration

Inlet Connection Size
1-1/2 in
Inlet Connection Type
Threaded (Female NPT)
Material Composition
316 stainless steel and PTFE
Model
TJ16
Product Type
Nozzle

Performance

Operating Pressure Range
50 - 200 psi

Product Category

Brand
TankJet®
Impact Group
Medium Impact

Standard Feature

Liquid Flow Rate Range
36 - 76 gpm
Maximum Free Passage
840 µm
Maximum Recommended Tank Diameter
Up to 24 ft
Maximum Temperature
250 °F
Minimum Tank Opening
3 in
Operating Principle
Fluid-driven Turbine
Recommended Strainer Mesh
20
Spray Coverage
270° down
Tank Mounting Options
Vertical/Downward, Vertical/Upward, 45° Upward, 45° Downward
