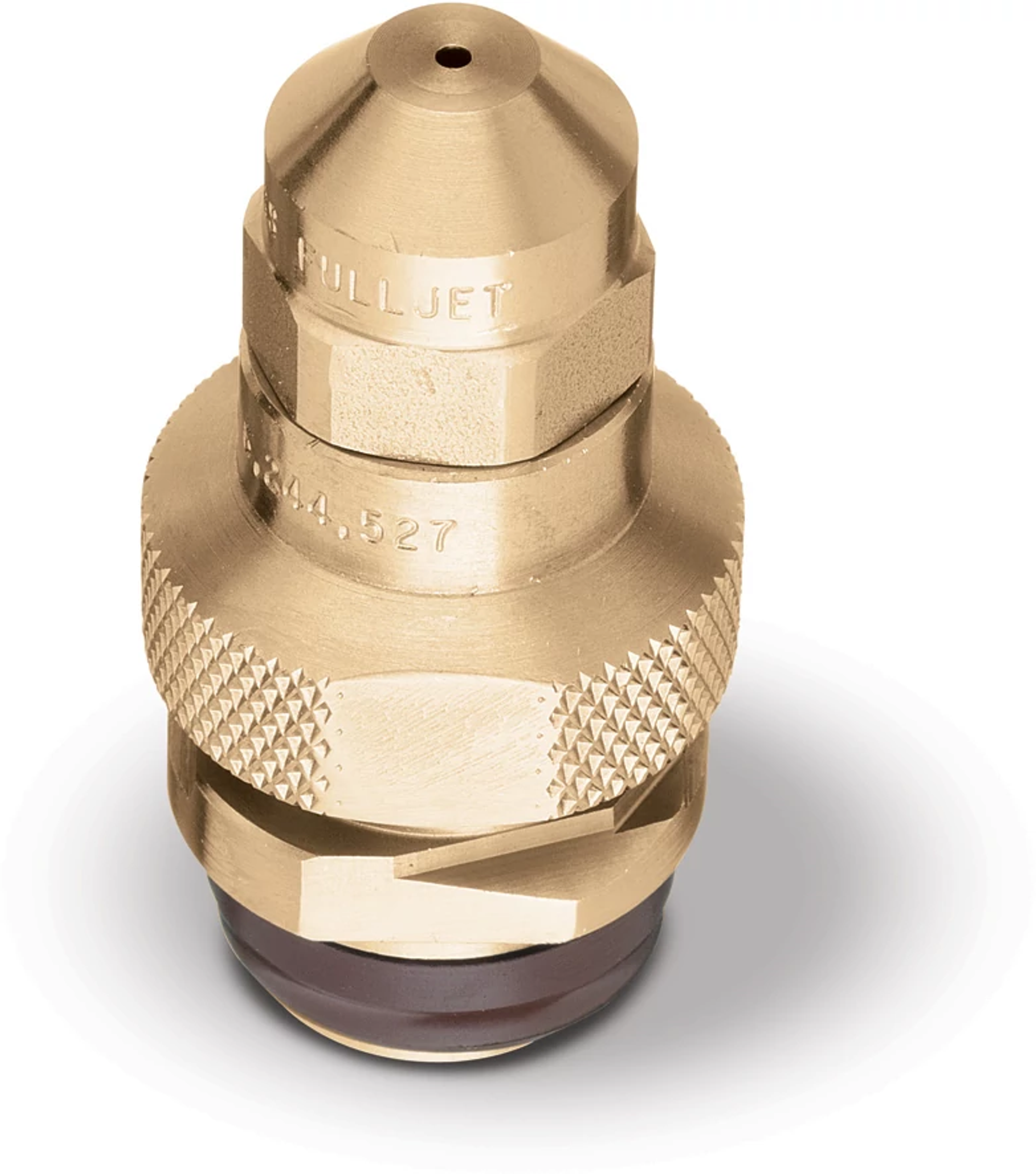

Quick FullJet® Full Cone Nozzle Systems - 30° Spray Angle - Removable Cap/Vane, QGA-30, QLGA-30
Images are representative.
Images are representative. Products may differ in material or configuration.
+ 2
General Information
Description
- Reduce maintenance time – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips with automatic alignment
- Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced
- Spray angles: Standard – 43° to 91°, Narrow – 15° or 30°, Wide – 102° to 120°
- Uniform spray distribution from .10 to 19.4 gpm (.38 to 72 lpm)
- Operating pressures up to 300 psi (20 bar)
- Choice of metal or ProMax materials. ProMax features:
- ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 150 psi (10 bar)
- Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
- Optional external O-ring protects nozzle from contaminants
- Tips are color-coded for easy flow rate identification
Specification Summary
Liquid Pressure Range
10 - 300 psi
0.4 - 20 bar
Relative Drop Size Range
1,000 - 5,000 µm
1,000 - 5,000 µm
Spray Pattern
Full Cone
Full Cone
