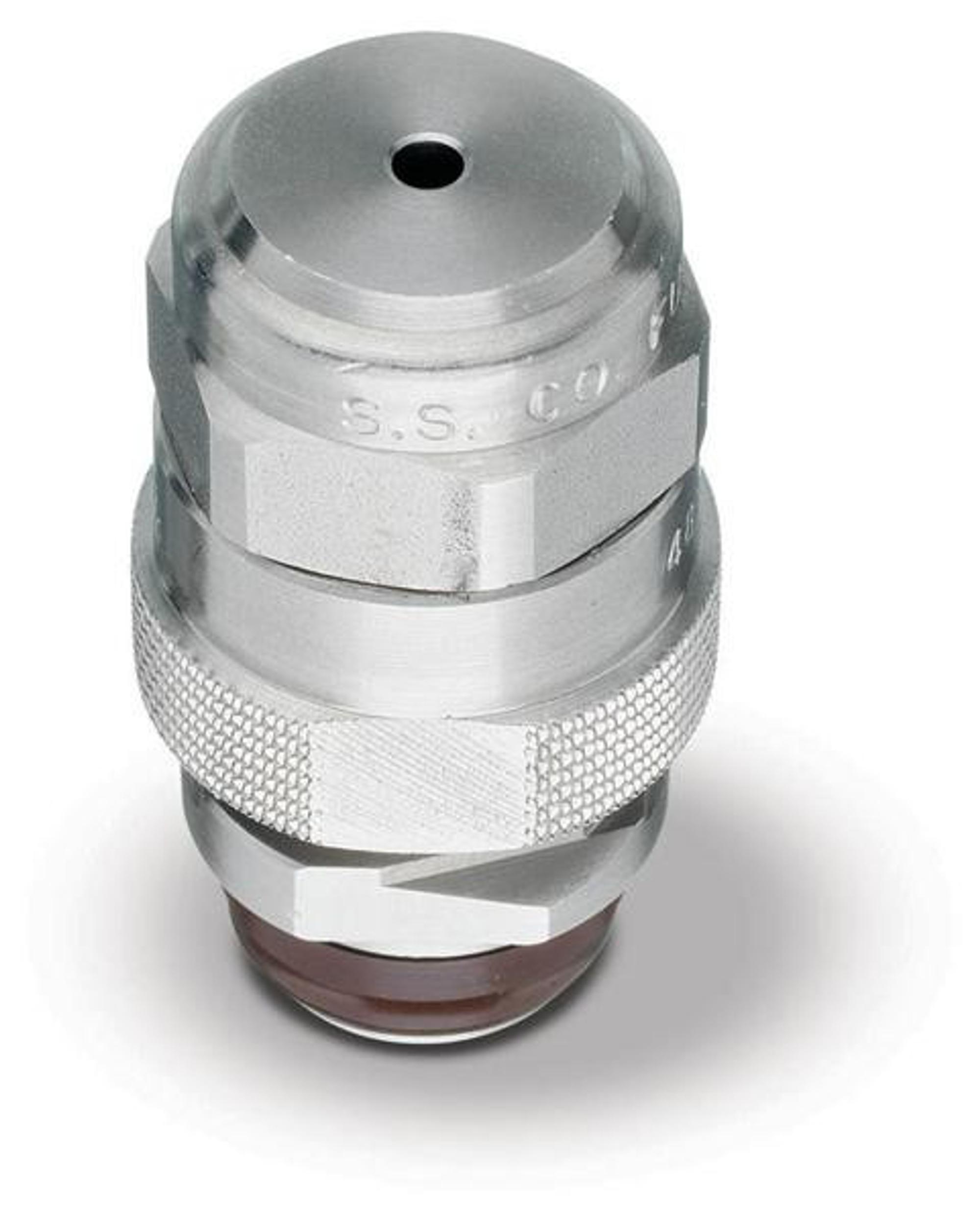

Quick FullJet® Full Cone Nozzle Systems - Removable Cap/Vane, QGA, QLGA
Model
QGA, QLGA
Quick FullJet® Full Cone Nozzle Systems - Removable Cap/Vane
Model Specifications
Spray PatternFull Cone
Model Configurator
Step 1 of 8
What type of product are you looking for?
Our products are grouped into these primary product types:
- Nozzle - Body (a nozzle body without a spray tip)
- Tip (a spray tip without a nozzle body)
- Assembly (a complete nozzle assembly including both a nozzle body and a spray tip)
Make selections to see matching products
General Information
Description
- Reduce maintenance time – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips with automatic alignment
- Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced
- Spray angles: Standard – 43° to 91°, Narrow – 15° or 30°, Wide – 102° to 120°
- Uniform spray distribution from .10 to 19.4 gpm (.38 to 72 lpm)
- Operating pressures up to 300 psi (20 bar)
- Choice of metal or ProMax materials. ProMax features:
- ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 150 psi (10 bar)
- Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
- Optional external O-ring protects nozzle from contaminants
- Tips are color-coded for easy flow rate identification
Specification Summary
Spray Pattern
Full Cone
