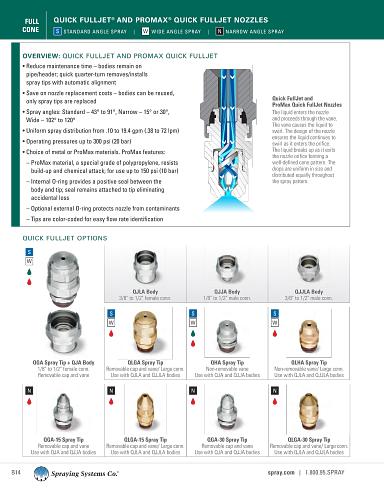

ProMax® Quick FullJet® Quick-Connect Nozzle Systems, QPHA

+ 11

General Information


  • Reduce maintenance time – bodies remain on pipe/header; quick quarter-turn removes/installs spray tips with automatic alignment
  • Save on nozzle replacement costs – bodies can be reused, only spray tips are replaced
  • Spray angles: Standard – 43° to 91°, Narrow – 15° or 30°, Wide – 102° to 120°
  • Uniform spray distribution from .10 to 19.4 gpm (.38 to 72 lpm)
  • Operating pressures up to 300 psi (20 bar)
  • Choice of metal or ProMax materials. ProMax features:
  • ProMax material, a special grade of polypropylene, resists build-up and chemical attack; for use up to 150 psi (10 bar)
  • Internal O-ring provides a positive seal between the body and tip; seal remains attached to tip eliminating accidental loss
  • Optional external O-ring protects nozzle from contaminants
  • Tips are color-coded for easy flow rate identification

Specification Summary

Relative Drop Size Range
500 - 5,000 µm
Spray Pattern
Full Cone
