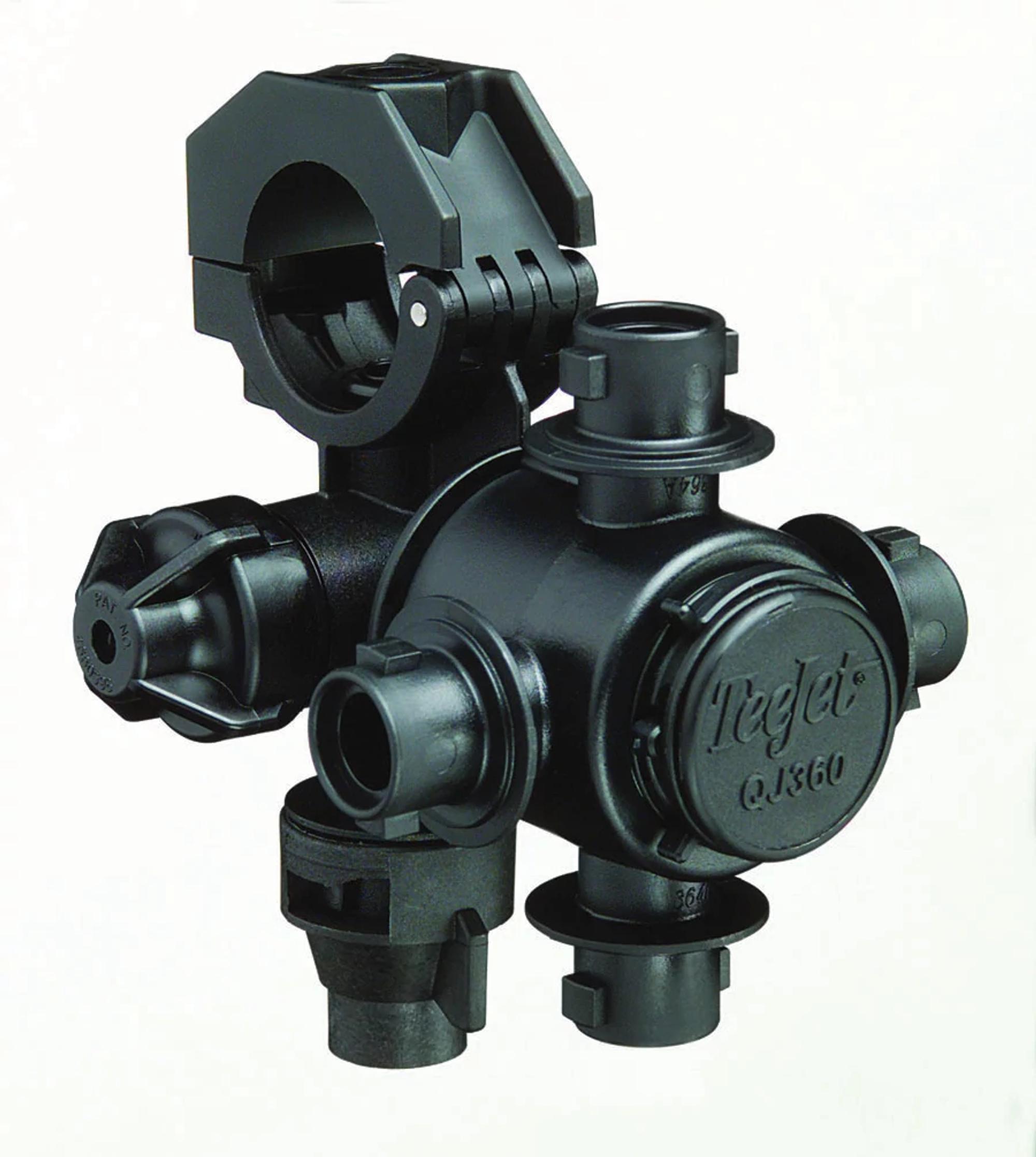

Multiple Nozzle Bodies With Fertilizer Outlets , QJ364F

General Information

Description

  • Single fertilizer nozzle outlet with shutoff cap and either 3, 4, or 5 spray positions for easy change of spray tips or quick boom flushing.
  • Positive shutoff between each position.
  • Automatic self-alignment with flat fan spray patterns.
  • Flow rate: pressure drop of 5 PSI for 2.25 GPM through turret and 3.4 GPM through fertilizer outlet.
  • Flow rate: pressure drop of 10 PSI for 3.18 GPM through turret and 4.8 GPM through fertilizer outlet.
  • Maximum pressure of 300 PSI.
  • Available in 1" single or double hose shanks.
  • Includes ChemSaver Diaphragm Check Valve for drip-free shutoff. Standard diaphragm opens at 10 PSI. See page 135 for additional 21950 ChemSaver spring capacities.
  • Standard O-rings and diaphragm made of EPDM and Buna with FKM optional.
  • Molded hex socket in the upper clamp for attaching to flat surfaces (does not use dry boom clamp). Accepts 5/16" or M8 bolt.
  • Also available with optional Air ChemSaver or e-ChemSaver® shutoff valves, see pages 134–135 for additional information.
  • Hinged upper clamp reduces assembly time and fits inside common boom channels.
