QuickMist® Quick Connect Air Atomizing Nozzles

Electrically-Actuated / Hydraulic Atomizing

Throttling and Pressure Relief/Regulating Valves

* Available with 3 or 5 spray positions for easy change of spray tips or quick boom flushing.
* Positive shutoff between each spray position.
* Automatic spray alignment using flat fan spray tips.
* Maximum operating pressure of 300 PSI.
* Available in three sizes: 1/2", 3/4", 1" single or double hose shanks.
* Includes ChemSaver® Diaphragm Check Valve for drip-free shutoff. Standard diaphragm opens at 10 PSI. See page 135 for additional 21950 ChemSaver spring capacities.
* Standard FKM diaphragm and O-rings.
* Also available with optional Air ChemSaver or e-ChemSaver shutoff valves, see pages 134–135 for additional information.
* Durable design mounts body high on boom structure for maximum protection.
* QJ373 Flow Rate: 2.6 GPM at 5 PSI pressure drop; 3.6 GPM at 10 PSI pressure drop.
* QJ375 Flow Rate: 2.4 GPM at 5 PSI pressure drop; 3.4 GPM at 10 PSI pressure drop.
* Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16" or M8 bolt. Optional upper clamp for M6 bolt

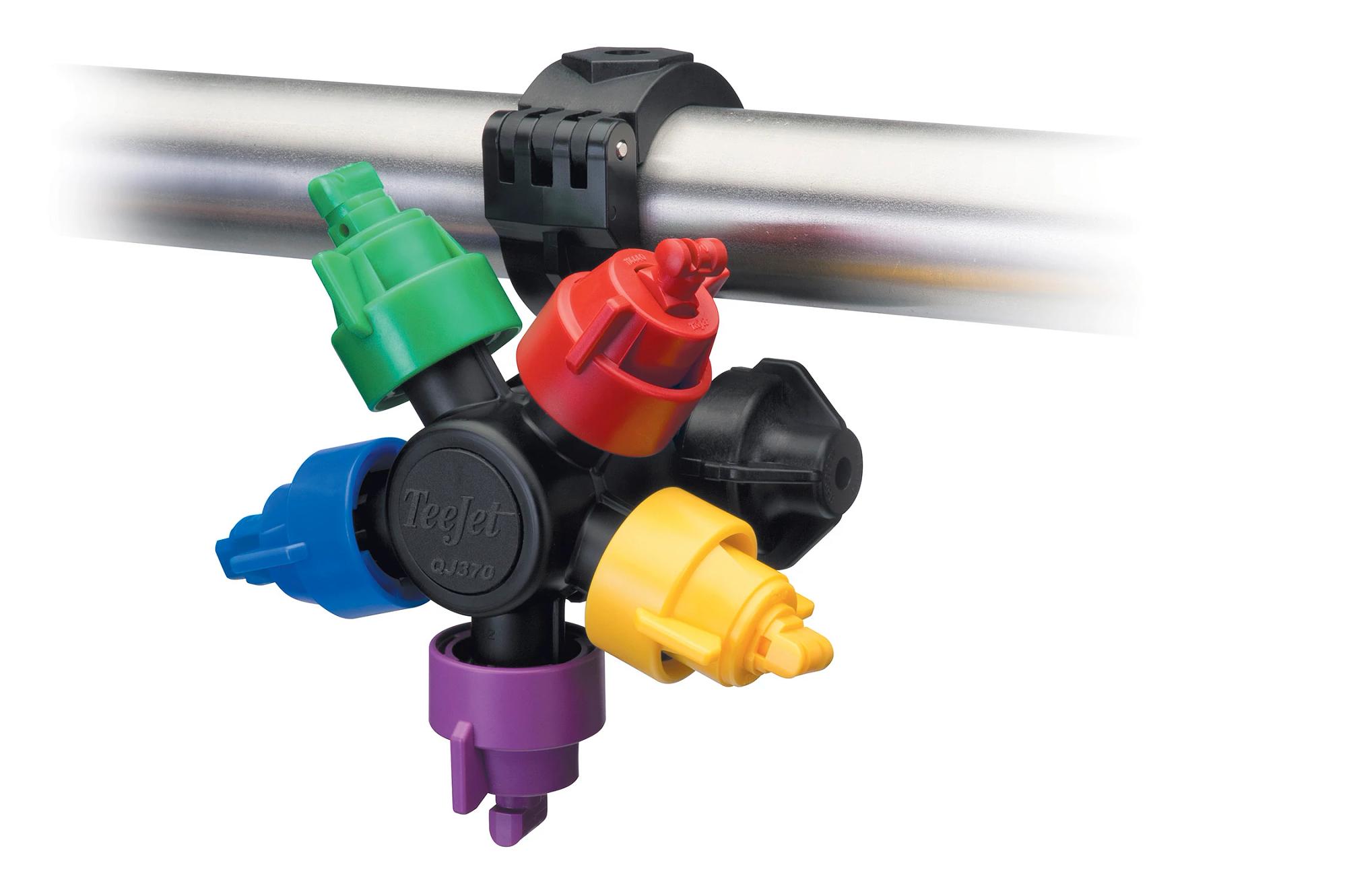

Multiple Nozzle Bodies for Dry or Wet Booms, QJ375

Model Specifications

General Information

Description

Specification Summary

Alternative Models
