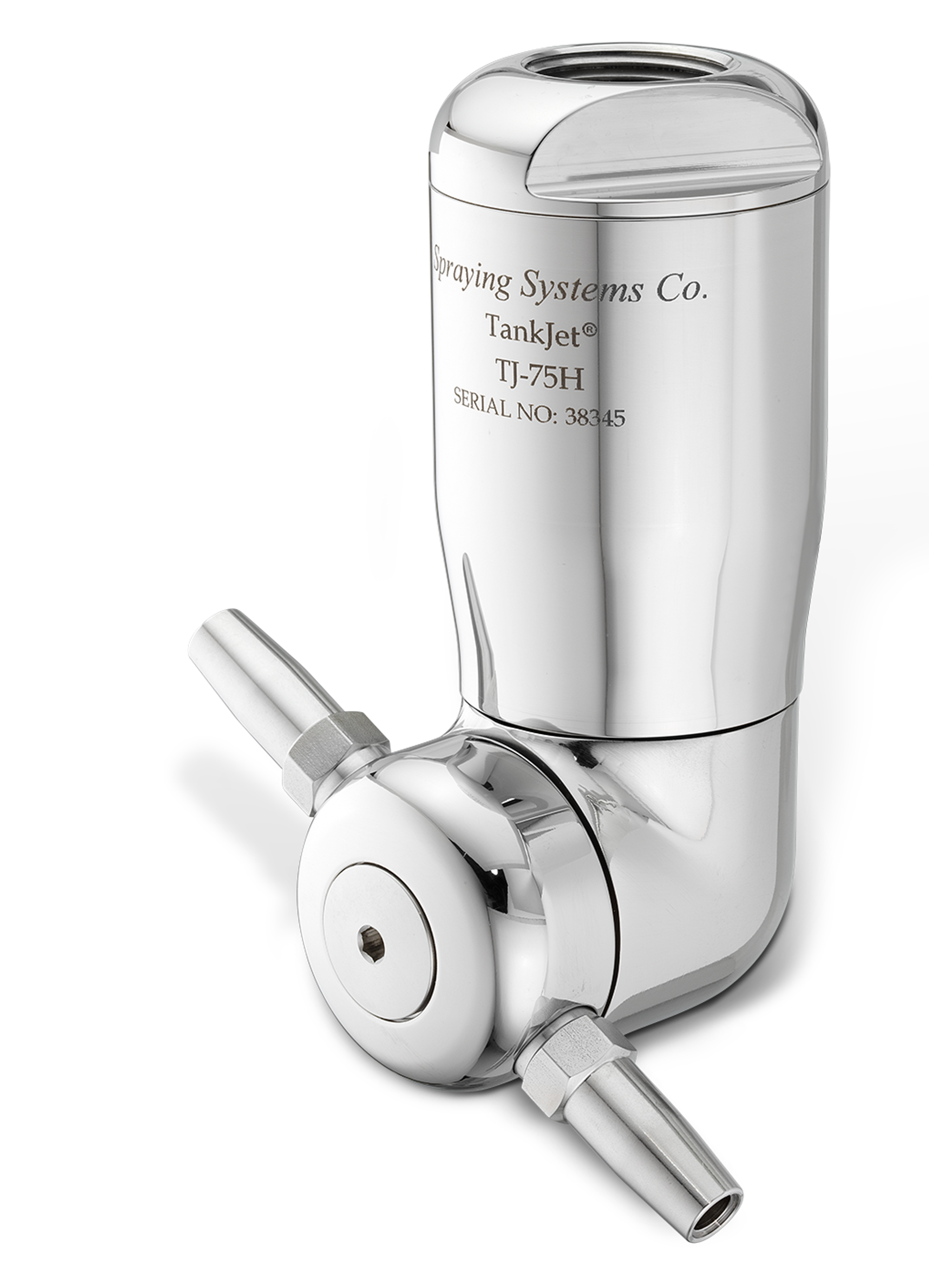

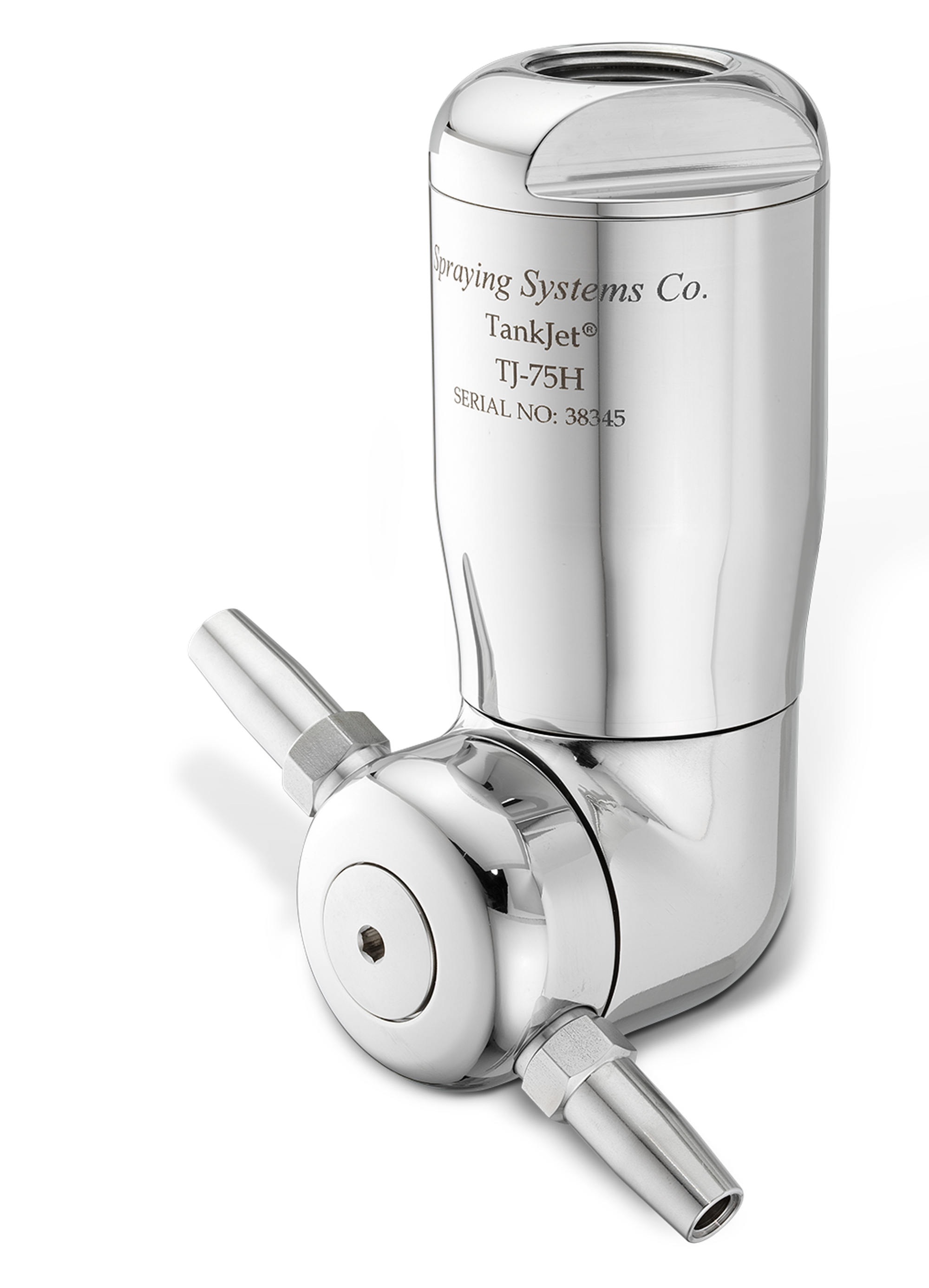

TankJet® Fluid-Driven Turbine Tank Cleaner, Tanks up to 30 ft., 360° Spray Coverage, TJ75H

ModelTJ75H

TJ75H

TankJet® Fluid-Driven Turbine Tank Cleaner, Tanks up to 30 ft., 360° Spray Coverage

Model Specifications

Operating PrincipleFluid-driven Turbine
Spray Coverage360°
Product TypeNozzle
Liquid Flow Rate Range15 - 33 gpm
Material Composition316 stainless steel, PTFE and UHMWE-PE
Maximum Recommended Tank DiameterUp to 30 ft
Impact GroupMedium Impact

Model Configurator

Step 1 of 9

Product Type

Our products are grouped into these primary product types:

  • Nozzle - Body (a nozzle body without a spray tip)
  • Tip (a spray tip without a nozzle body)
  • Assembly (a complete nozzle assembly including both a nozzle body and a spray tip)

Make selections to see matching products

General Information

Description

These units enable thorough, cost-effective cleaning of tanks, totes and IBCs. They are ideal for high-impact cleaning of chemical containers, dairy tanks and totes, food and beverage tanks, pharmaceutical tanks and process tanks.

  • Hygienic (H) models feature polished surfaces and enclosed gears. These sanitary units are ideal for food and pharmaceutical applications.
  • Fluid-driven with controlled nozzle rotation speed for optimal impact and cleaning efficiency.
  • Solid stream nozzles rotate in multiple axes on a 360° indexing pattern to provide complete coverage of the entire tank every 45 revolutions.
  • Simple, flow-through design is easy to maintain and can be rebuilt quickly and easily in about five minutes.
  • Two-nozzle and four-nozzle design provides excellent coverage and fast cleaning.
  • Tank cleaner is constructed of long-wearing materials and can be mounted permanently or moved from tank to tank.
  • Choice of low pressure or standard operation.

Specification Summary

Impact Group
Medium Impact
Liquid Flow Rate Range
15 - 33 gpm
Material Composition
316 stainless steel, PTFE and UHMWE-PE
Maximum Recommended Tank Diameter
Up to 30 ft
Operating Principle
Fluid-driven Turbine
Product Type
Nozzle
Spray Coverage
360°
